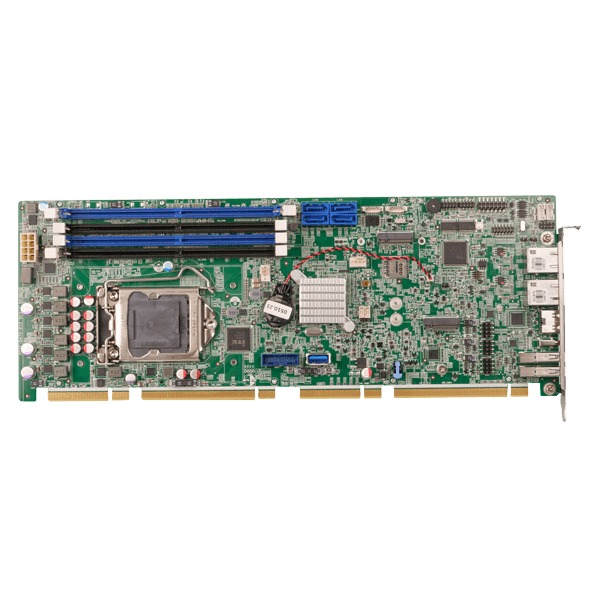

PCIE-Q470 – Full-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium®, Celeron® CPU

  • LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
  • Supports Dual Intel® i225v 2.5GbE controller
  • Supports USB 3.2 Gen 2 (10Gb/s) with Type C interface
  • Supports M.2 A key for WLAN expansion, M key for PCIe NVMe storage, B key for 5G module

MAXIMIZE DESIGN FLEXIBILITY
The PCIE-Q470 is a full-size PICMG® 1.3 single board computer with scalable CPU options of 10th/11th Intel® Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processors and Intel® Q470/Q470E chipset, supporting up to 10 cores. With our comprehensive passive backplane and industrial chassis options, the configurable system can offer increased computing efficiency and flexible I/O expandability through PCIe x16, PCIe x4 and legacy PCI signals, allowing more industrial add-on cards to satisfy the requirements of performance-demanding applications in medical radiology equipment, digital surveillance, transportation and automation applications.

FULL SIZE PICMG 1.3

Standard PICMG 1.3 SBCs have several advantages over non-standard SBCs. Firstly, they are more maintainable than a motherboard system and have a much lower mean time to repair (MTTR). Secondly, it is easy to upgrade to a newer or faster processor if desired.

PERFORMANCE BOOST
The 10th and 11th Gen Intel® Core™ processors, ranging from 6 to 10 cores, with increased I/O capacity and the latest DDR4-2933 memory support deliver the performance required to consolidate multiple industrial workloads. The CPU benchmark boosts up to 85% better integer multi-tasking compute intensive application performance on 11th Gen Intel® Core™ i5 processor.

DATA PROTECTION

REDUNDANT NETWORKING CONNECTION
With dual LAN configuration, the network redundancy for an internet connection has backup connectivity to switch the network from the first LAN input to the other LAN input automatically to avoid and mitigate the risk of downtime.

MULTIPLE DEVICE CONNECTION
With dual LAN configuration, the single-board computer is capable of connecting various devices such as sensors, multiple cameras, or other hardware that connects to an industrial SBC.

NETWORKING
M.2 B Key with SIM Slot for LTE Cellular Communication

The M.2 B key supporting PCI Express 3.0 x2 signals plus onboard SIM slot allows you to use a LTE radio frequency to ensure secure and delay-free data transmission in smart manufacturing.

M.2 2230 A Key for Wi-Fi/Bluetooth

The M.2 2230 A key slot carrying with PCIe 3.0 x2 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks.

INSTANT SYSTEM-LEVEL SOLUTION
To suit different AIoT applications, we offer a comprehensive range of PICMG 1.3 passive backplanes and industrial chassis to give system designers expanded options for integrating multi-level processors within a variety of configurations.

SPECIFICATIONS

Form Factor
Form Factor Full Size Single Board Computer
System
CPU LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3,Pentium® and Celeron® processor (Support up to 65w)
Chipset Intel® Q470/Q470E
Memory 4 x 288-pin 2933 MHz Dual-channel DDR4 DIMMs support up to 128G
Memory Max. up to 128GB
Cooling method / System Fan 1 x CPU fan connector (1×4 pin)
1 x System fan connector (1×4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 338 mm x 126 mm
Net Weight 500g
Storage
Storage 4 x SATA : 6Gb/s (Support RAID 0/1/5/10)
1 x M.2(NGFF) : M Key (2280/2242) (with PCIe Gen3 x4), support NVME storage
I/O Interface
Display Output 1 x HDMI : up to 4096 x 2160@30Hz
Ethernet 2 x LAN :
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
Audio 1 x HD Audio : 1 x IAUDIO, support IEI AC-KIT-888S Audio Module (2 x 5 pin)
I/O Interface 2 x Internal RS-232 : 2×5 pin, P=2.0
2 x Internal RS-422/485 : 1×4 pin, P=2.00 ,RS-485 support AFC
2 x External USB 3.2 Gen1x1 : 5Gb/s (Type-A)
6 x Internal USB 2.0 : 2×4 pin, P=2.54
3 x Internal USB 3.2 Gen1x1 :
2 x USB 3.2 Gen1 (5Gb/s) (2×10 pin,P=2.00)
1 x USB 3.2 Gen1 (Type A 180°)
DIO : 12-bit digital I/O (2×7 pin)
1 x External USB 3.2 Gen2x1 : 10Gb/s (Type-C)
Expansion 1 x PCIe x16 :
signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8)
1 x PCIe x4 :
signal from PCH via golden finger
(supports x4, or x1 + x1 + x1 + x1)
4 x PCI Slot : signal via golden finger
3 x M.2(NGFF) :
1 x M.2 A Key (2230) (with PCIe Gen3 x2/USB 2.0)
1 x M.2 B Key(3042/3052/2280) w/ SIM holder (with PCIe Gen3 x2)
1 x M.2 M Key (2280/2242) (with PCIe Gen3 x4)
Power
Power Supply ATX/AT power supply
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature 0°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

ORDERING INFORMATION

PCIE-Q470-R10 Full-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q470E, DDR4, HDMI, Type-C DP, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio, iAMT and RoHS

PACKAGE CONTENTS

Package Contents
  • 1 x PCIE-Q470 single board computer
  • 2 x SATA cable
  • 1 x I/O shielding
  • 1 x QIG
