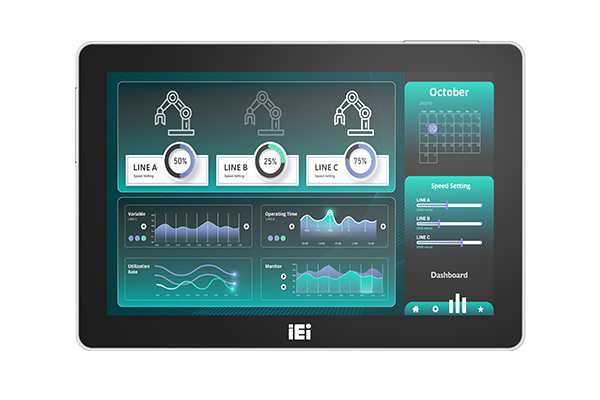

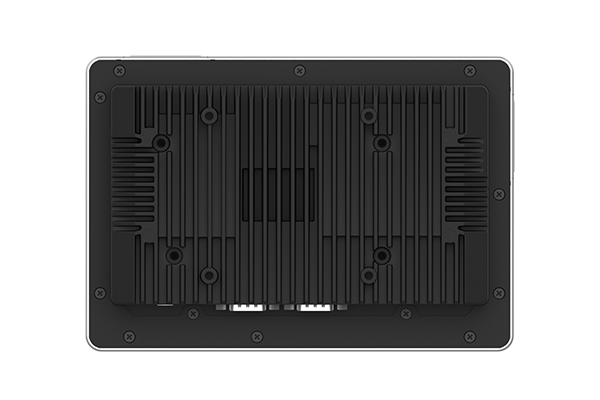

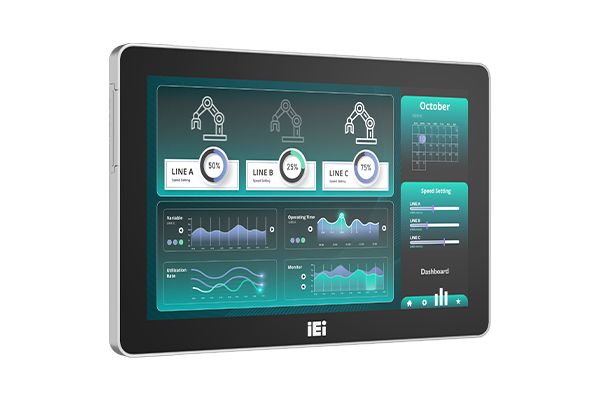

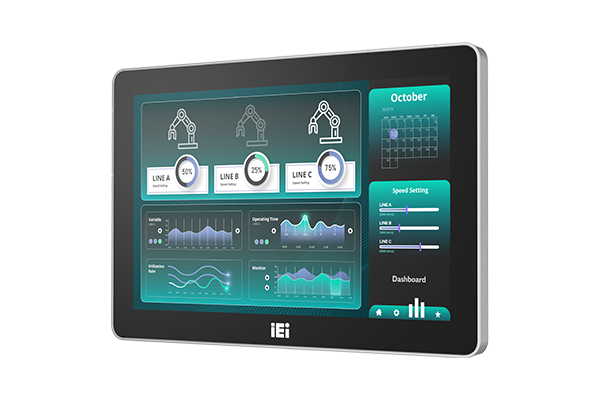

Fanless panel PC with narrow bezel design, Intel® Celeron® J6412 processor, on-board 8GB memory, HDMI output, 2.5GbE LAN, two RS-232/422/485, two USB 3.2 Gen2, one USB 2.0, one M.2 M key expansion slot, and anti-glare & anti-UV 10-point touchscreen.
SPECIFICATIONS
| CPU |
Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W |
| Memory Ext. |
Dual channel on board LPDDR4x 8G (up to 16G) |
| Storage |
128G eMMC (optional) |
| Wireless |
IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.0 (M.2 2230 A-key) |
| Ethernet |
1 x 2.5GbE LAN via Intel® I225V |
| Audio |
AMP 1.2 W (internal speaker) |
| Expansion |
1 x M.2 2242 M key (PCIE Gen3 x1 + SATA) |
| Audio Codec |
Realtek ALC888S |
| Operating Temperature |
-10ºC ~ 50ºC |
| Safety & EMC |
CE/EMC, UKCA, FCC, RED (Class A) |
| Humidity |
10% ~ 95%@40ºC (non-condensing) |
| Storage Temperature |
-20ºC ~ 60ºC |
| Color |
Silver + Black |
| Mounting |
Wall, Stand, ARM, VESA 75 |
| Dimensions (LxWxH) (mm) |
201.40 x 138.90 x 36.78 |
| Size |
8” (16:10) |
| Resolution |
1280 x 800 |
| Brightness (cd/m2) |
420 (cd/m²) |
| Contrast Ratio |
800 : 1 |
| LCD Color |
16.7 M |
| Pixel Pitch (mm) |
0.135 x 0.135 |
| Viewing Angle (H-V) |
170° / 170° |
| Backlight MTBF |
30,000 hours |
| Touch Screen |
- Multi-point projected capacitive type (anti-UV / anti-glare coating, support gloves)
- Surface hardness: 7H
|
| Touch Controller |
EETI EXC 81 Series |
| Audio |
1 x AMP 1.2W (internal speaker) |
| I/O Interface |
1 x AT/ATX Switch |
|
2 x RS-232/422/485 (by DB9) |
|
1 x HDMI™ (up to 3840 x 2160 @30Hz) |
|
1 x LAN (Intel® I225V 2.5GbE controller) |
|
1 x DC Input Jack |
|
1 x Reset Button |
|
1 x Power Switch |
|
1 x USB2.0 |
|
2 x USB 3.2 Gen2 (10Gb/s(Type A)) |
| OS Compatible |
Windows 10/11 IoT
Linux |
ORDERING
| AFL4-W08-EHL-J1/8G-R11 |
8″ 420cd/m² HD Fanless Panel PC with Intel® Celeron® Processor J6412 on-board Processor, TDP 10W, 8GB LPDDR4x on-board, 802.11a/b/g/n/ac/ax WiFi&Bluetooth®5.2 module, PCAP touch, R11 |

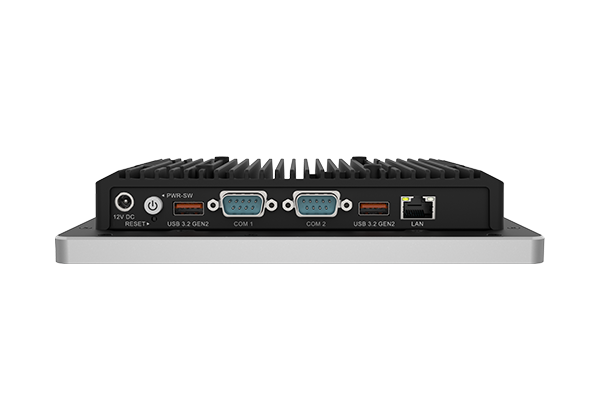

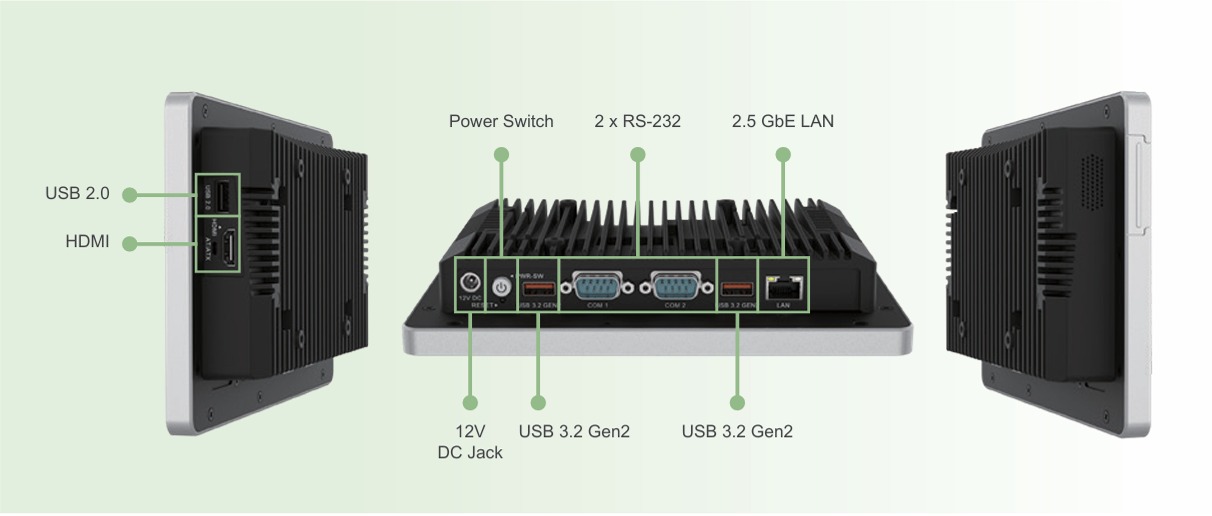

I/O

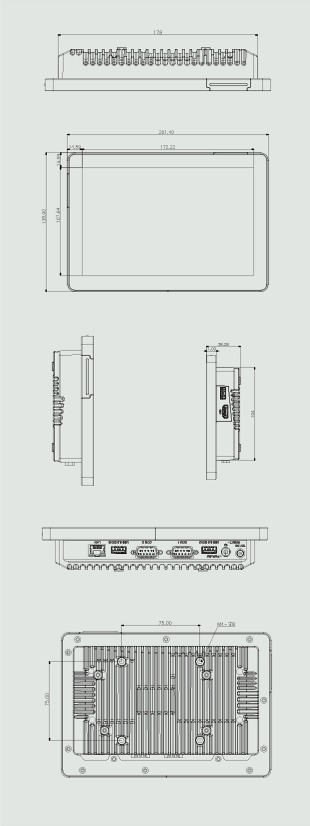

DIMENSIONS
