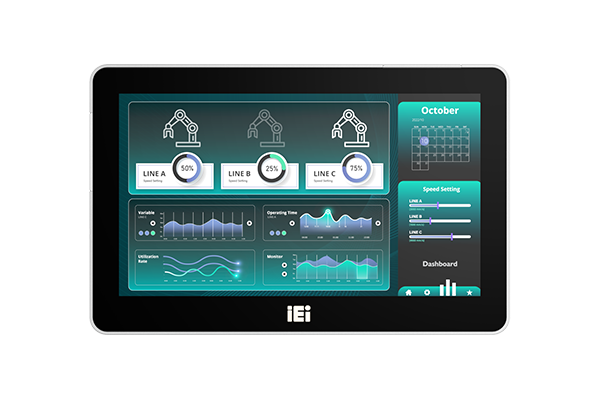

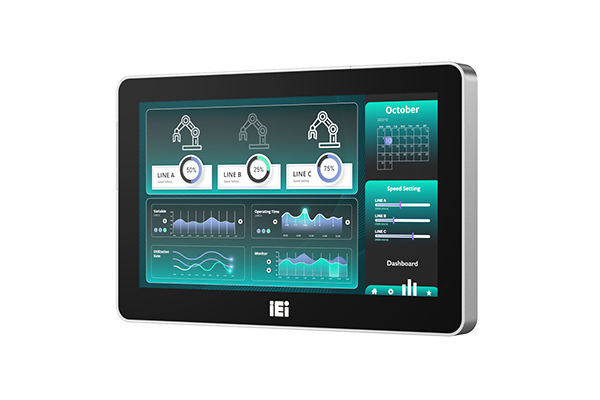

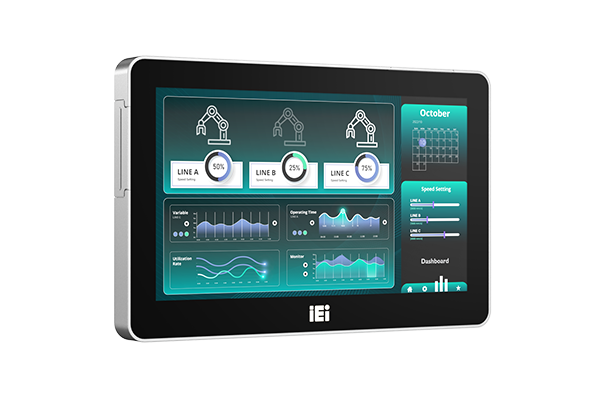

The AFL4-W07-RK3566 is a fanless 7″ industrial panel PC powered by the Rockchip RK3566, featuring onboard LPDDR4/LPDDR4X memory, eMMC storage, HDMI 2.0 display output, and rich I/O for industrial connectivity.
SPECIFICATIONS
| CPU |
Rockchip RK3566 (Quad-core Cortex-A55, Up to 1.8GHz) |
| On-board Memory |
4GB LPDDR4/4X, Up to 8GB |
| Memory Ext. |
Dual channel On board LPDDR4/4x
2/4GB |
| Storage |
16/32GB eMMc |
| Wireless |
Wireless module of WIFI5/WIFI6 & BT V5.0 B TO B interface (Optional) |
| Ethernet |
1 x 1GbE LAN By YT8521 |
| Audio |
1 x 1W (internal speaker)
1 x 3.5 mm Audio Jack (Line out/Line in) |
| Expansion |
1 x M.2 B Key Slot For 3042 4G Module |
| Audio Codec |
RK809 |
| Operating Temperature |
0°C ~ 50°C |
| Safety & EMC |
CE/EMC, FCC, Class A |
| Humidity |
10% ~ 90%@40ºC (non-condensing) |
| Storage Temperature |
-20ºC ~ 60ºC |
| IP Level |
IP64 Front panel |
| Color |
Silver+Black |
| Mounting |
Wall , Stand , ARM, VESA 75 |
| Dimensions (LxWxH) (mm) |
180 x 116 x 35.45 mm |
| Size |
7” (16:9) |
| Resolution |
1024 x 600 |
| Brightness (cd/m2) |
450(cd/m2) |
| Contrast Ratio |
800:1 |
| Pixel Pitch (mm) |
0.1056 x 0.1432 |
| Viewing Angle (H-V) |
170°/170° |
| Backlight MTBF |
30000 hours |
| Touch Screen |
Multi-point projected capacitive type
(anti-UV / anti-glare coating, support gloves)
Surface hardness: 7H |
| Touch Controller |
EETI EXC 81 Series |
| Audio |
1 x 1W (internal speaker)
1 x 3.5 mm Audio Jack (Line out/Line in) |

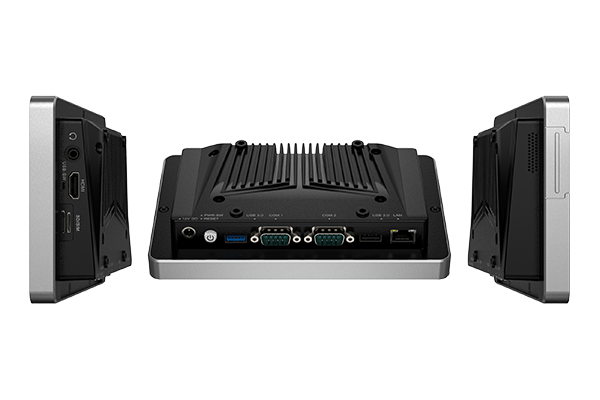

| I/O Interface |
2 x RS-232/422/485 (by DB9) |
|
1 x USB 2.0 |
|
1 x USB 3.2 Gen1x1 |
|
1 x HDMI™ (up to 4096 x 2304 @60Hz) |
|
1 x LAN (YT8521SC 1GbE controller) |
|
1 x DC Input Jack |
|
1 x Reset Button |
|
1 x Power Switch |
| OS Compatible |
Android 12.0 / Debian 10 (Kernel 4.19) |
ORDERING
| AFL4-W07-RK3566-R10 |
7″ 450cd/m2 1024×600 fanless Panel PC with RK3566, 4GB LPDDR4/4X, 32GB eMMC, 1xUSB2.0, 1xUSB3.0, 2xRS-232/422/485, HDMI, 1xRJ45, 12V DC IN, Optional WIFI/BT, Optional M.2 B key for 3042 LTE, PCAP touch, Debian10, Rohs |
| AFL4-W07-RK3566-A-R10 |
7″ 450cd/m2 1024×600 fanless Panel PC with RK3566, 4GB LPDDR4/4X, 32GB eMMC, 1xUSB2.0, 1xUSB3.0, 2xRS-232/422/485, HDMI,1xRJ45,12V DC IN, Optional WIFI/BT, Optional M.2 B key for 3042 LTE, PCAP touch, Android12, Rohs |
| AFL4-W07-RK3566-2/16GB-R10 |
7″ 450cd/m2 1024×600 fanless Panel PC with RK3566, 2GB LPDDR4/4X, 16GB eMMC, 1xUSB2.0, 1xUSB3.0, 2xRS-232/422/485, HDMI,1xRJ45,12V DC IN, Optional WIFI/BT, Optional M.2 B key for 3042 LTE, PCAP touch, Debian10, R10, Rohs |

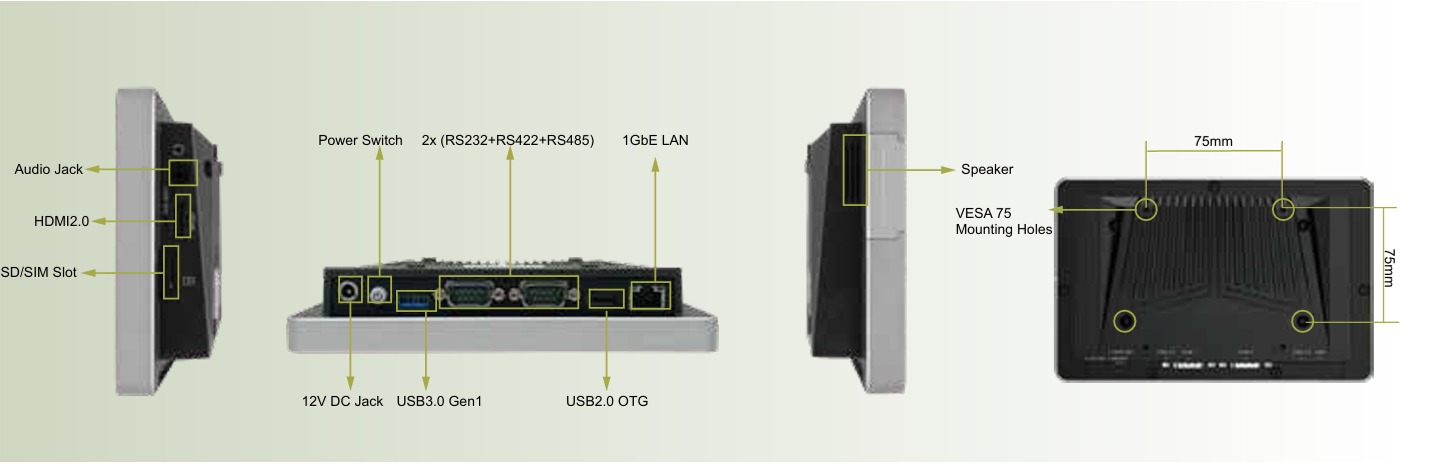

I/O

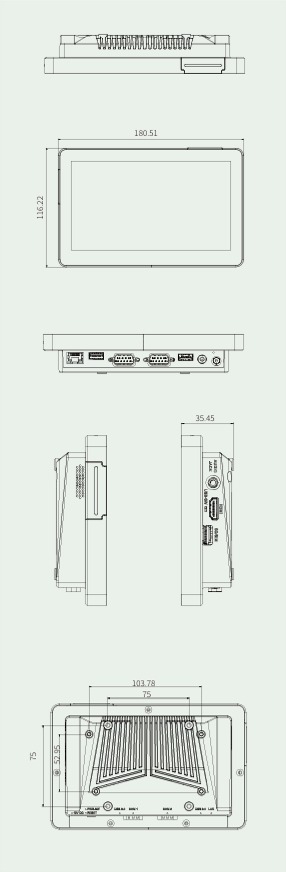

DIMENSIONS
