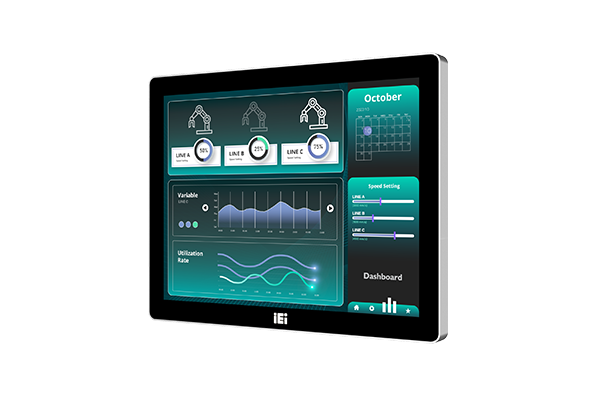

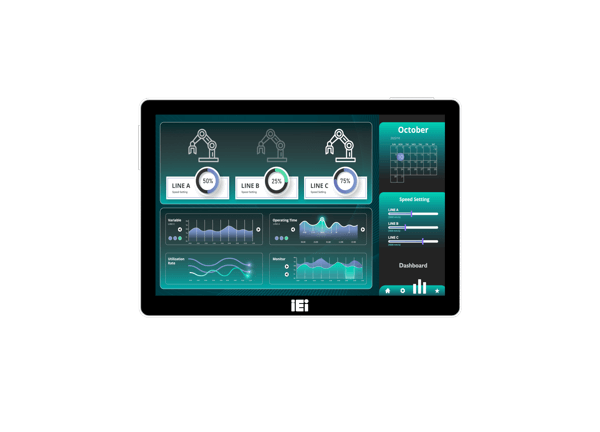

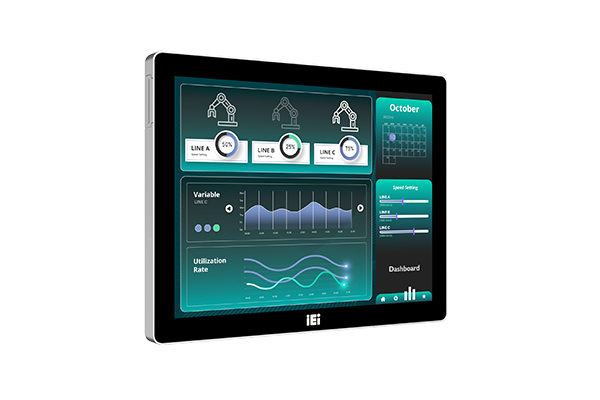

The AFL4-ADLP is a fanless and stylish panel PC from our AFOLUX series, which offers affordable luxury solutions for light industrial markets. It runs on a 12th Gen Intel® Core™ processor and 8GB LPDDR4x soldered memory, providing excellent performance and reliability. It features an optimized PCAP touchscreen, a rich I/O port selection, and the latest wireless communication technology – Wi-Fi 6E and Bluetooth 5.2, making it ideal for applications that need high-speed connectivity and large embedded RAM. The AFL4-ADLP is suitable for various fields such as factory automation, retail, digital signage, transportation and surveillance.
SPECIFICATIONS
| CPU |
12/13th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P/Raptor Lake-P) |
| On-board Memory |
Dual channel on board LPDDR4X 8G (max.32GB) |
| Wireless |
IEEE 802.11ax 2T2R module (Wi-Fi 6E)
with BT v5.0 (M.2 2230 A-key) |
| Ethernet |
LAN1: Intel® I226V 2.5GbE controller
LAN2: Intel® I226-LM 2.5GbE controller (support Intel® AMT) |
| Audio |
AMP 1.2W (internal speaker) |
| Expansion |
1 x M.2 M key 2242 (PCIE Gen4 x 4)
1 x M.2 M key 2280 (PCIE Gen4 x 4) |
| Audio Codec |
Realtek ALC888S |
| Operating Temperature |
-10°C ~ 50°C |
| Safety & EMC |
CE/EMC , FCC , RED (Class A) |
| Humidity |
10% to 95% (non-condensing) |
| Storage Temperature |
-20°C ~ 60°C |
| IP Level |
Front panel IP64 |
| Color |
Silver+Black |
| Mounting |
Wall, Stand, ARM, VESA100 |
| Construction Front Panel |
Aluminum front cover and sheet metal rear cover |
| Size |
10.1” |
| Resolution |
1280 x 800 (16:10) |
| Brightness (cd/m2) |
350(cd/m²) |
| Contrast Ratio |
800:1 |
| Viewing Angle (H-V) |
170°/170° |
| Backlight MTBF |
30000 hours |
| Touch Screen |
Multi-point projected capacitive type
(anti-UV / anti-glare coating,support gloves)
Surface hardness: ≥7H |
| Touch Controller |
EETI 80 |
| I/O Interface |
2 x RS-232 (by DB9) |
|
2 x RS-232/422/485 (by DB9) |
|
2 x LAN |
|
1 x DC Input Jack |
|
1 x Reset Button |
|
1 x Power Switch |
|
1 x AT/ATX switch |
|
2 x USB 3.2 Gen1x1 |
|
1 x USB2.0 |
|
1 x HDMI™ (up to 3840*2160 @30Hz) |
|
2 x USB 3.2 Gen2 |
| OS Compatible |
Windows 10/11 IoT, Linux |
ORDERING
| AFL4-W101-ADLP-Ri7E/16G-R11 |
10.1″ 350cd/m² 1280×800 fanless panel PC with Intel® Core™ i7-1370PE on-board processor, 16GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R11 |
| AFL4-W101-ADLP-Ri5E/8G-R11 |
10.1″ 350cd/m² 1280×800 fanless panel PC with Intel® Core™ i5-1340PE on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R11 |
| AFL4-W101-ADLP-Ri3E/8G-R11 |
10.1″ 350cd/m² 1280×800 fanless panel PC with Intel® Core™ i3-1320PE on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R11 |
PACKAGE CONTENTS
- 1 x AFL4-W101-ADL-P
- 1 x Power Cord
- 1 x Power Adapter
- 1 x QIG
- 1 x Thermal Pad
|

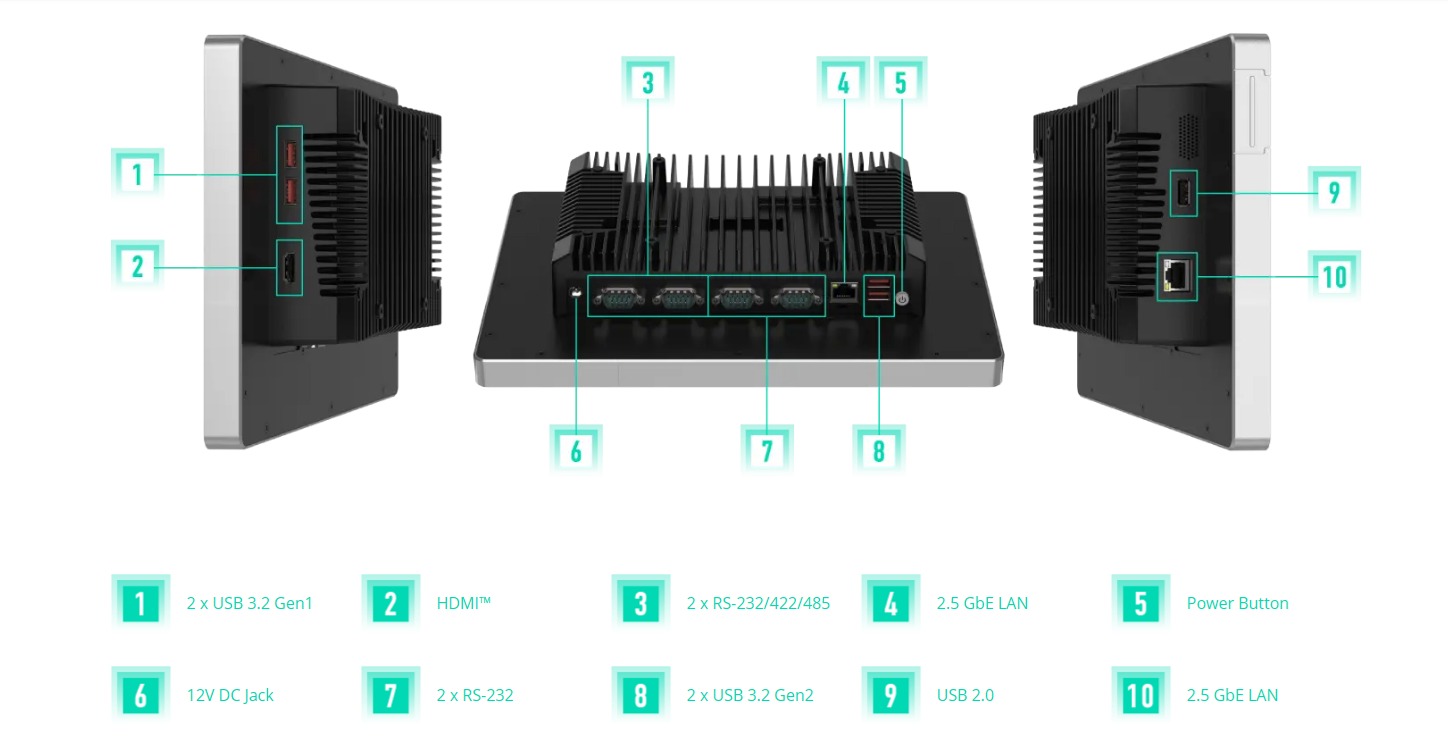

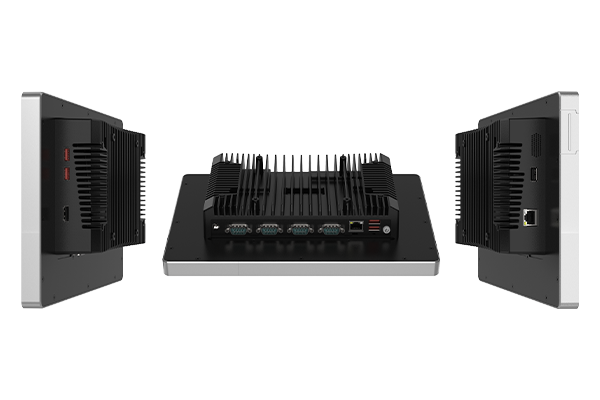

I/O

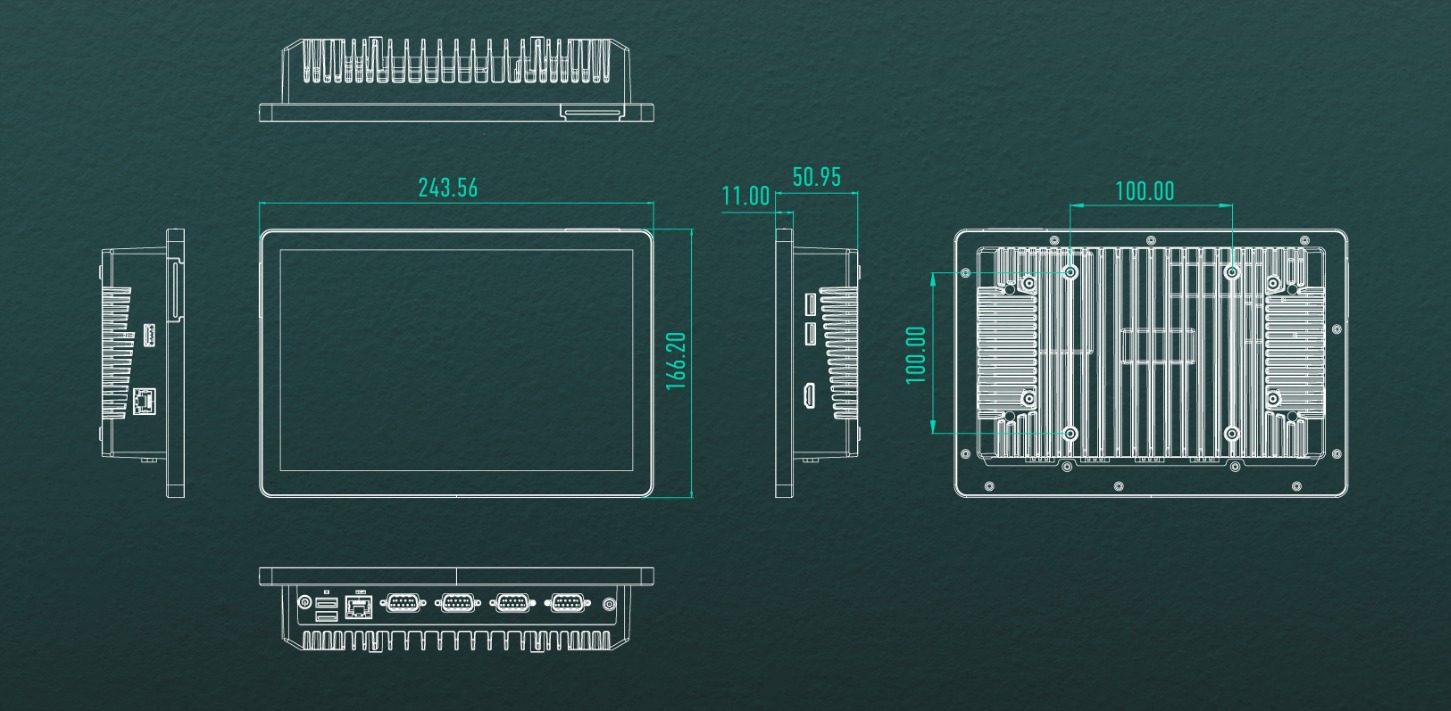

DIMENSIONS
