TWB-5520 – Waterproof Fanless IP65 Box PC with Intel Core i5 CPU


  • 7th Gen. Intel Core i5-7200U Kaby Lake Processor
  • Full IP65 Waterproof / NEMA 4 Box PC
  • Wide Operating Temperature 0ºC to 50ºC (Optional -20ºC to 60ºC)
  • Ultra Compact, Aluminum Chassis with Fanless Design
  • 9~36V DC Power Input with Isolation

The TWB-5520 Core i5 Waterproof Box PC is a fully waterproof, IP65 and NEMA 4 rated box computer with an Intel Kaby Lake processor. This embedded computer is fully sealed, fanless, and has a rugged aluminum chassis, ideal for use in damp or dusty environments. The TWB-5520 includes an one M.2 slot for the solid state drive and one M.2 slot for expansion for WiFi and Bluetooth. This computer offers a variety of I/O ports including 2x LAN, 3x USB, 1x RS-232, and 1xVGA as well as a 9~36VDC power input. The TWB-5520 can be used in a wide variety of applications that require a rugged and compact computer. Contact Us for a TWB-5520 quotation.


Processor Intel Core i5-7200U Dual Core (3M Cache, Up to 3.1GHz)
Security Hardware TPM 2.0
Chipset Intel SoC Integrated
Video / Graphics Card Intel HD Graphics 620
Storage M.2 SATA
Memory (RAM) 4GB, 8GB, 16GB

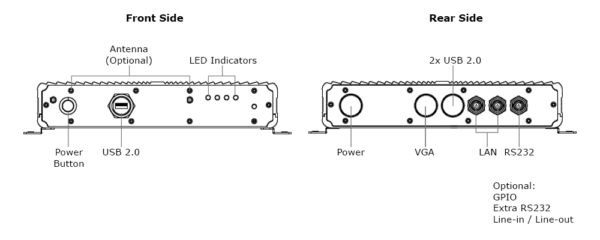

I/O Ports
USB 2.0 3x USB 2.0
Serial 1x RS232, 1x extra RS232 (Optional)
Video 1x VGA
Ethernet 2x GbE LAN
Other Ports Optional GPIO
DC Jack Yes
Audio In/out Optional Audio Line In/Line Out
Operating System
Operating System Windows 10 Pro, Windows 10 IoT
DC Input / Source Voltage 9~36V DC with isolation
Expansion Slots
Expansion 1 x M.2 Expansion Slot for WiFi
Operating Temperature
Operating Temperature 0ºC to 50ºC (Optional -20ºC t o 60ºC)
Humidity Range 5% to 95% (non-condensing)
Cooling System / Thermal Solution
Thermal Solution Passive – Fanless
Dimensions / Weight
Weight (kg) 3.2 kg   (7.055 lbs)
Dimensions 260.4 x 168 x 50 mm
Material Aluminum
IP Rating IP65
Color Silver
LED Indicator Light HDD Access, LAN, Power
Peripherals & Devices
Wireless Communication Optional WiFi
Warranty Up to 5 Years
