The TM-6140-16 15.6″ Medical Touch Screen Computer is engineered to meet stringent medical compliance standards while offering unparalleled versatility. Designed for seamless integration into medical workflows, it serves as a reliable solution for bedside terminals and electronic health record management. The powerful 12th Gen Alder Lake-N processor ensures efficient performance, enhancing productivity in healthcare environments. The modular, two-piece design not only simplifies repairs but also allows for future upgrades, ensuring longevity and adaptability to evolving technological needs. This terminal represents a forward-looking approach to healthcare computing, prioritizing reliability, efficiency, and flexibility. CONTACT US today for TM-6140 pricing.
SPECIFICATIONS
Primary Components
| Processor Family | Intel Core I series 12th Generation Alder Lake |
| Processor Model | Core i3-N305, Intel Processor N97 |
| Processor Speed | Up to 3.6 GHz, Up to 3.8 GHz |
| Memory Type | 1x DDR4 SO-DIMM |
| Memory Support | 8GB, 16GB |
| Storage Support | 128GB-1TB |
Display
| Screen Size | 15.6″ |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | 300 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |
External I/O Ports
| USB | 1x USB 3.0 type C, 2x USB 3.0, 4x USB 2.0 |
| Serial / Com | 3x RJ48 COM |
| Serial Protocol Detail | RS232 |
| Ethernet / LAN | 1x RJ45 GbE LAN |
| Video Outputs | 1x DisplayPort via USB-C Alt Mode |
| Other Ports | 1x RJ11 |
| Power Input Port | 4-Pole DIN (latching) |
Power
| Input Voltage Range | 12-48V DC |
| Standard Power Adapter | External 19V/3.42A 65W DC Power Adapter (120W Adapter with Powered USB Option) |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
| Linux | Linux |
Expansion Slots
| Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 for NVME SSD Support |
| Expansion Module support | 1x Expansion Board Slot with Options for POE, Wide Range Power, Isolated Serial & LAN and Powered USB |
Multimedia
| Speakers | 1x 3W Speaker |
| Camera | Optional 5MP Webcam |
Thermal & Environmental
| Operating Temperature | 0°C – 40°C (32°F – 104°F) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Cooling Solution | Passive |
| Humidity Range | 20% – 85% Non-condensing |
Enclosure
| Material | Aluminum |
| IP Rating | IP65 Front Bezel |
| Color | Black Touch w/ Silver Border and Black Rear (Default) or White Rear (Optional) |
| Led Indicator Light | Power |
| Control Buttons | Power Button, Power Switch |
| Mounting Options | VESA Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional WiFi 6 (AX) |
| Bluetooth | Optional Bluetooth 5.2 |
Weight / Dimensions
| Weight | 3.5 kg (7.7 lbs) |
| Dimensions | 388 x 249 x 47 mm (15.3 x 9.8 x 1.9 in) |
Certification
| Certifications | CE, FCC |

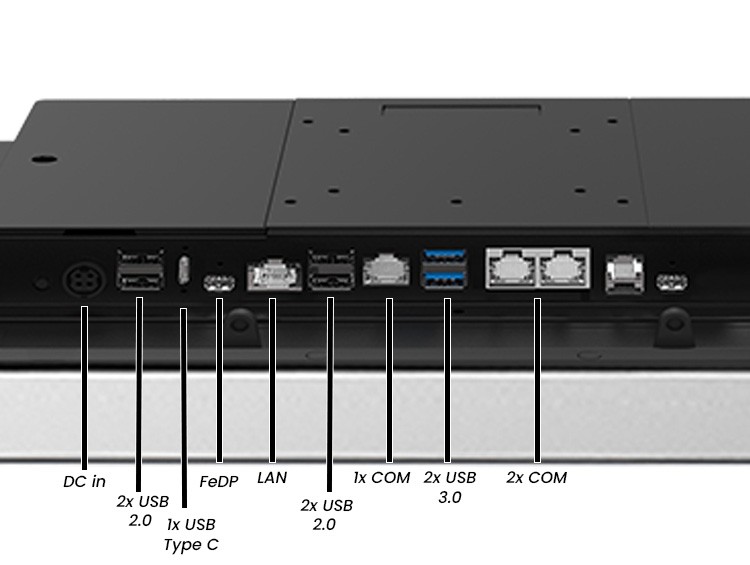

I/O
DIMENSIONS
