Designed to endure the harshest conditions, the DM2-121 combines IP65-rated front panel protection, robust all-metal construction, and extended temperature support from -20°C to 60°C, while offering a 1000-nit LED backlight and anti-glare coating for optimal visibility in bright environments. Integrated with an HD camera, dual front-facing speakers, and four USB 3.2 Gen 1 ports for enhanced productivity, this monitor is engineered to provide security, clear communication, and seamless installation, making it an indispensable tool for modern industrial operations.
In high ambient brightness environments, such as kiosks or brightly lit indoor settings, standard TFT LCDs can appear dim and washed out, making content difficult to read. The IEI DM2-121 HL models, equipped with a 1000-nit (cd/m²) LED backlight TFT LCD, a 1000:1 high contrast ratio, and accurate color reproduction capabilities, excel in extremely bright surroundings, ensuring clear and vivid visibility.
* Applicable for DM2-121E-HL and DM2-121EL-HL models only.
CONTACT US today for DM2-121 pricing.
SPECIFICATIONS
| Display | |
|---|---|
| LCD Size | 12.1” (4:3) |
| Brightness(cd/m2) | 500 (1000 for HL) |
| Max Resolution | 1024 x 768 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF(hrs) | 50000 |
| I/O Interface | |

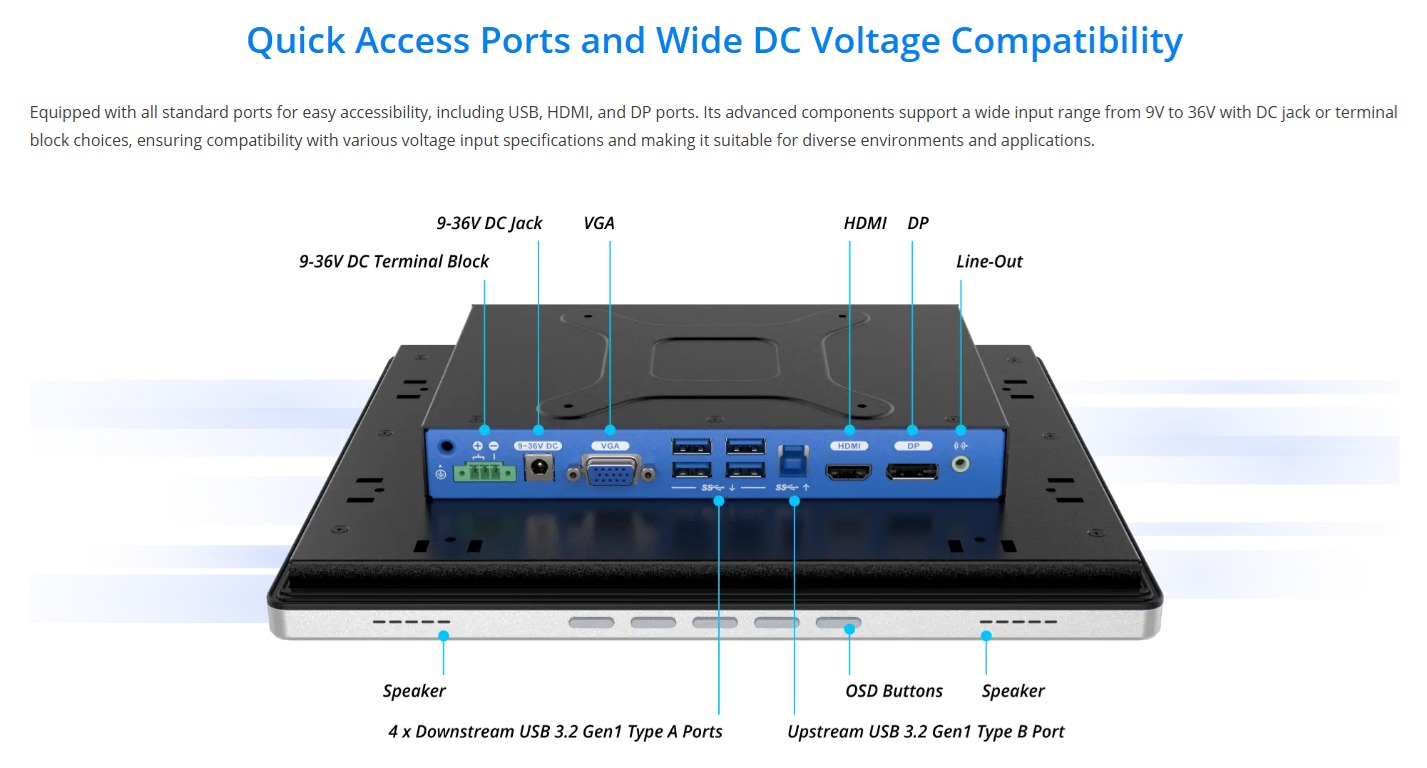

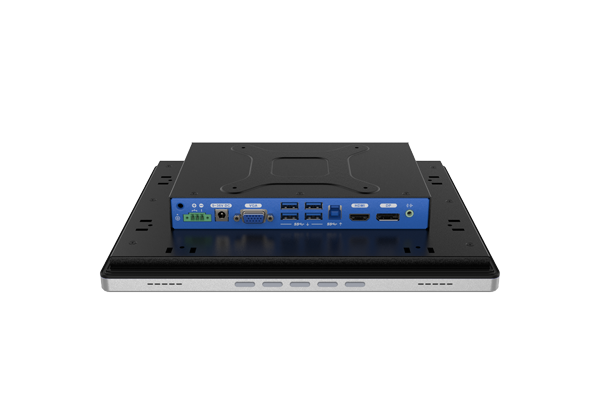

| I/O Ports | 1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
| Power | |
| Power adapter | 12V DC |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 10% to 95%@40°C (non-condensing) |
| Storage Temperature | -20°C ~ 70°C |
| IP Level | IP 65 compliant front panel |
| Physical Characteristics | |
| Color | Black + Silver |

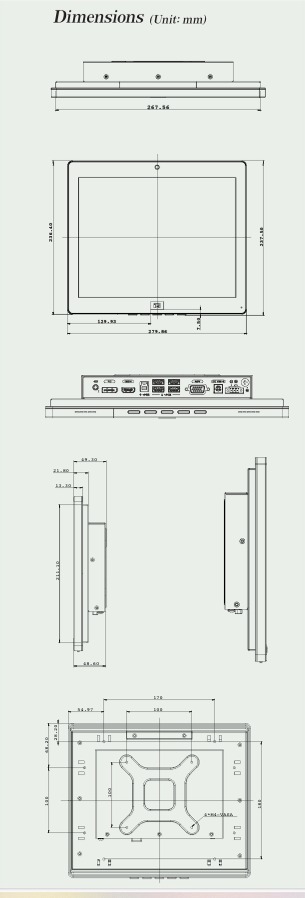

| Dimensions (LxWxH) (mm) | 279.86 x 237.50 x 49.30 |
| Cutout Dimensions | 270.50 x 214.10 |
| LCD | |
| LCD Color | 16.2M |
| Viewing Angle (H-V) | 178°/178° |
| Touch | |
| Touch Screen | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
| Touch Controller | ilitek |
ORDERING
| DM2-121E-R10 | 12.1″ 500 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
|---|---|
| DM2-121EL-R10 | 12.1″ 500 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
| DM2-121EL-HL-R10 | 12.1″ 1000 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
| DM2-121E-HL-R10 | 12.1″ 1000 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
