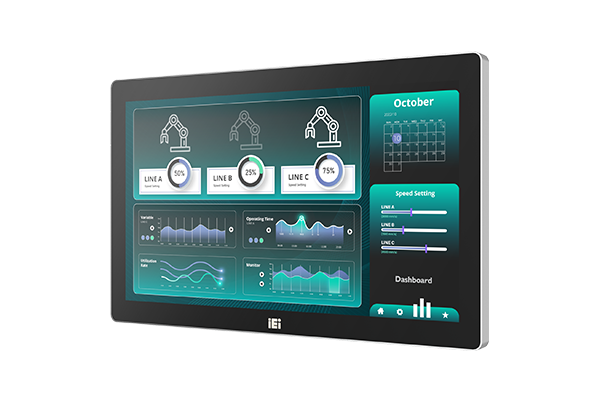

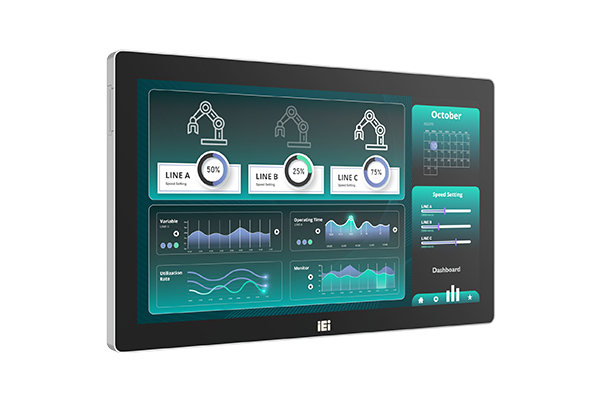

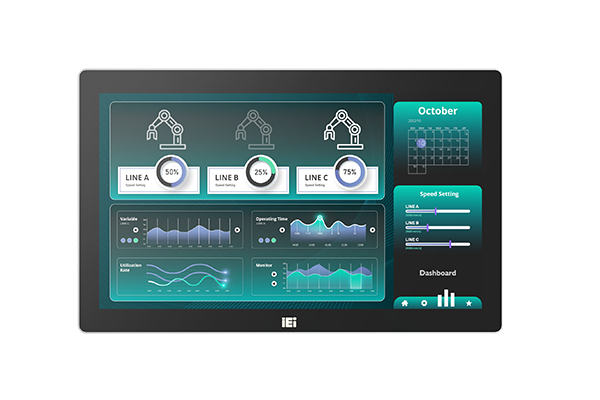

The AFL4-W15-EHL is a fanless panel PC with narrow bezel design, Intel® Celeron® J6412 processor, on-board 8GB memory, HDMI output, dual 2.5GbE LAN, two RS-232, two RS-422/485, two USB 3.2 Gen2, three USB 2.0, two M.2 M key expansion slots, and anti-glare & anti-UV 10-point touchscreen.
SPECIFICATIONS
| CPU |
Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W |
| Memory Ext. |
Dual channel on board LPDDR4x 8G (up to 16G) |
| Wireless |
IEEE 802.11 a/b/g/n/ax, Bluetooth® V5.2 |
| Ethernet |
LAN1: Intel® I226-V
LAN2: Intel® I226-V |
| Expansion |
1 x M.2 2242 M key (PCIE Gen3 x1 + SATA)
1 x M.2 2280 M key (PCIE Gen3 x2) |
| Audio Codec |
Realtek ALC888S |
| Operating Temperature |
-10°C ~ 50°C |
| Safety & EMC |
CE/EMC, UKCA, FCC, RED(Class A) |
| Humidity |
10% ~ 95%@40°C (non-condensing) |
| Storage Temperature |
-20°C ~ 60°C |
| IP Level |
Front panel IP64 |
| Color |
Silver+Black |
| Mounting |
Wall , Stand , ARM, VESA 75/100 |
| Construction |
Aluminum die casting+SECC |
| Size |
15.6” (16:9) |
| Resolution |
1920 x 1080 |
| Brightness (cd/m2) |
450(cd/m2) |
| Contrast Ratio |
800:1 |
| LCD Color |
16.2M |
| Pixel Pitch (mm) |
0.179 x 0.179 |
| Viewing Angle (H-V) |
178°/178° |
| Backlight MTBF |
50000 hours |
| Touch Screen |
Multi-point projected capacitive type
(anti-UV / anti-glare coating,support gloves)
Surface hardness: 7H |
| Touch Controller |
EETI EXC 81 Series |
| Audio |
1 x AMP 1.2W (internal speaker) |
| I/O Interface |
1 x HDMI™ (up to 3840 x 2160 @30Hz) |
|
2 x LAN (2.5GbE RJ45) |
|
1 x DC Input Jack (12V) |
|
1 x Reset Button |
|
1 x Power Switch |
|
1 x AT/ATX switch |
|
2 x RS-232 (by DB9) |
|
2 x RS-422/485 (by DB9) |
|
3 x USB2.0 |
|
2 x USB 3.2 Gen2 (10Gb/s(Type A)) |
| OS Compatible |
Windows 10/11 IoT
Linux |
ORDERING
| AFL4-W15-EHL-J1/8G-R11 |
15.6″ 450cd/m² 1920×1080 fanless Panel PC with Intel® Celeron® J6412 on-board Processor, TDP 10W, 8GB LPDDR4 on-board, 802.11a/b/g/n/ac/ax WiFi&Bluetooth®5.2 module, PCAP touch, R11 |

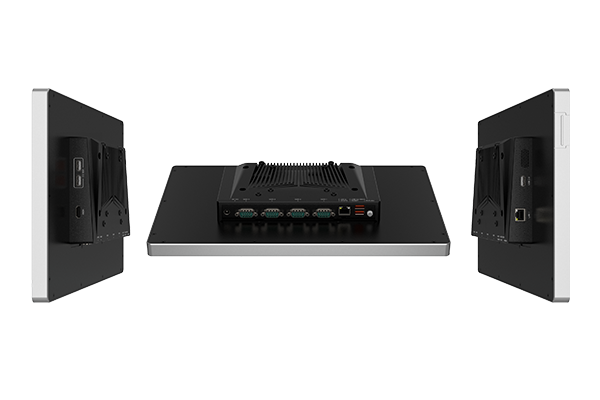

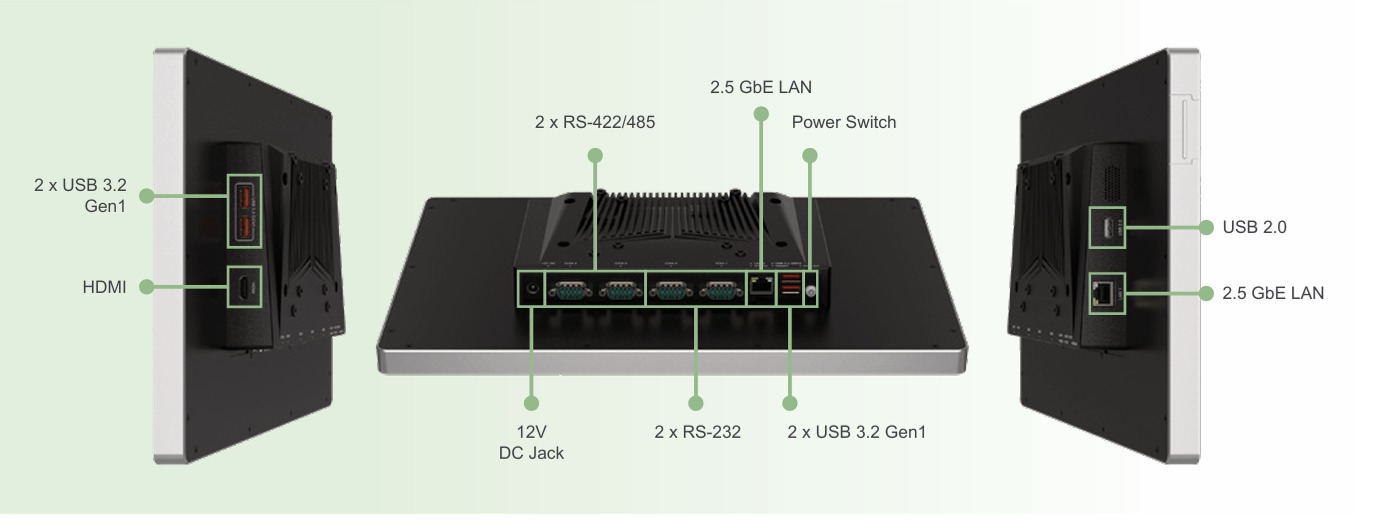

I/O

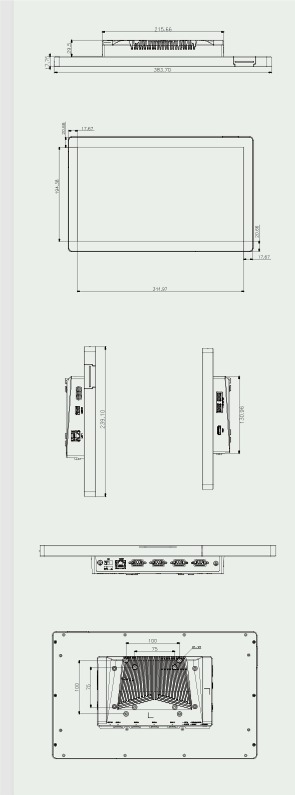

DIMENSIONS
