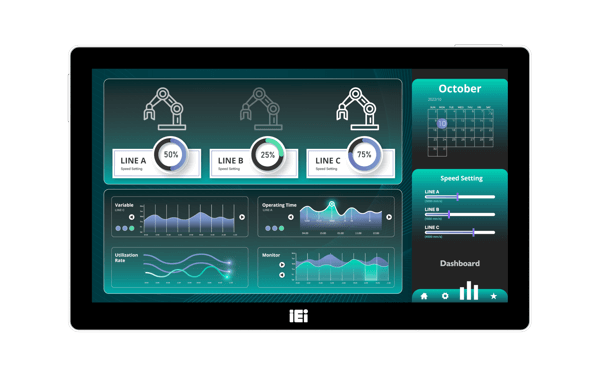

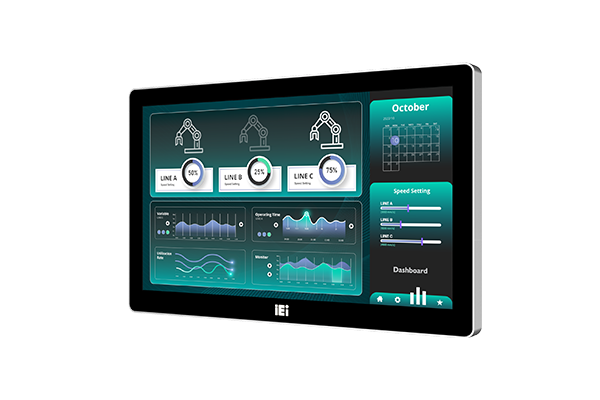

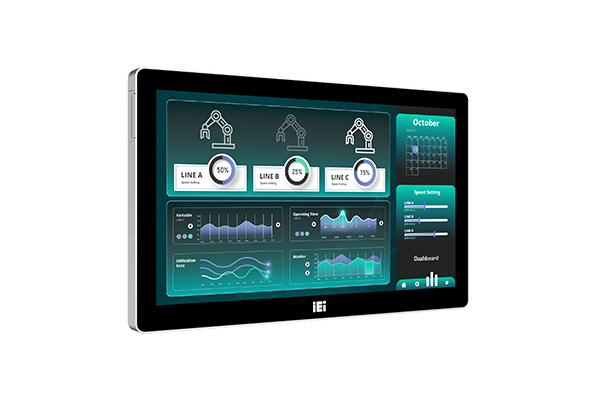

The AFL4-ADLP is a fanless and stylish panel PC from our AFOLUX series, which offers affordable luxury solutions for light industrial markets. It runs on a 12th Gen Intel® Core™ processor and 8GB LPDDR4x soldered memory, providing excellent performance and reliability. It features an optimized PCAP touchscreen, a rich I/O port selection, and the latest wireless communication technology – Wi-Fi 6E and Bluetooth 5.2, making it ideal for applications that need high-speed connectivity and large embedded RAM. The AFL4-ADLP is suitable for various fields such as factory automation, retail, digital signage, transportation and surveillance.
Superior Performance by the Power of 12th Gen Intel Core Processor
With the 12th Gen Intel® Core™ i7/i5/i3 processor (code name: Alder Lake-P) integrated, the AFL4-ADLP series delivers unparalleled edge computing performance and real-time IoT workload consolidation and AI inferencing. The powerful processor boasts an impressive maximum of 12 cores, ensuring exceptional multitasking capabilities and delivering lightning-fast performance with a burst frequency of 4.7GHz. The AFL4-ADLP series also features the Intel® Iris® Xe graphics with up to 96 graphics execution units (EUs), which boosts graphics performance and enables the panel PC to display high-quality visuals and better support imaging applications.

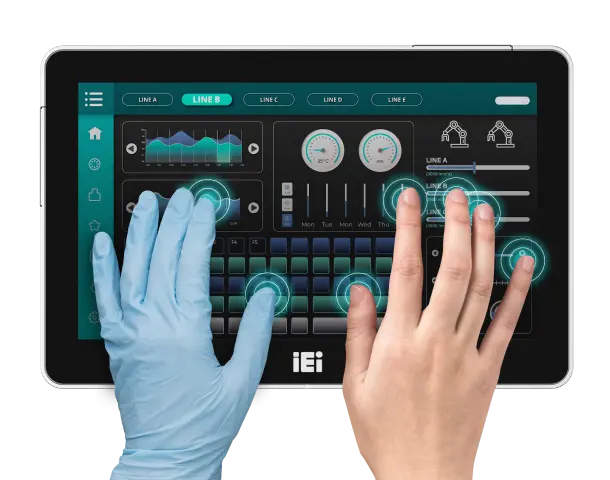

PCAP Touch Screen with High Sensitivity, Visibility and Durability
With glass-glass PCAP touch technology and industrial-grade controllers, this rugged touchscreen offers high sensitivity, visibility and durability for industrial applications. IEI AFOLUX panel PCs with this rugged touchscreen can work with gloves in harsh environments, such as food processing, chemical and beverage industries.
SPECIFICATIONS
| System | |
|---|---|
| CPU | 12/13th Gen Intel® Core Mobile i7/i5/i3 Processors (Alder Lake-P/Raptor Lake-P) |
| On-board Memory | Dual channel On board LPDDR4X 8G (max.32GB) |
| Communication | |
|---|---|
| Wireless | IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key) |
| I/O Interface | |
|---|---|
| Ethernet | LAN1: Intel® I226V 2.5GbE controller LAN2: Intel® I226-LM 2.5GbE controller (support Intel® AMT) |
| Audio | AMP 1.2W (internal speaker) |
| Expansion | 1 x M.2 M key 2242 (PCIE Gen4 x 4) 1 x M.2 M key 2280 (PCIE Gen4 x 4) |
| Audio Codec | Realtek ALC888S |
| Power | |
|---|---|
| Input | 12V DC |
| Environment | |
|---|---|
| Operating Temperature | -10°C ~ 50°C |
| Safety & EMC | CE, FCC Class A, UKCA |
| Humidity | 10% to 95% (non-condensing) |
| Storage Temperature | -20°C~ 60°C |
| IP Level | Front panel IP64 |
| Physical Characteristics | |
|---|---|
| Color | Silver+Black |
| Mounting | Wall, Stand, ARM, VESA 100 |
| Construction Front Panel | Aluminum front cover and sheet metal rear cover |
| LCD | |
|---|---|
| Size | 13.3” |
| Resolution | 1920 x1080 (16:10) |
| Brightness (cd/m2) | 350(cd/m²) |
| Contrast Ratio | 800:1 |
| Viewing Angle (H-V) | 170°/170° |
| Backlight MTBF | 50000 hours |
| Touch | |
|---|---|
| Touch Screen | Multi-point projected capacitive type (anti-UV / anti-glare coating,support gloves) Surface hardness: 7H |
| Touch Controller | EETI 80 |
| I/O Interface | |
|---|---|
| I/O Interface | 2 x RS-232 (by DB9) |
| 2 x RS-232/422/485 (by DB9) | |
| 2 x LAN (Intel® I225V 2.5GbE controller) | |
| 1 x DC Input Jack | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
| 2 x USB 3.2 Gen1x1 | |
| 1 x USB2.0 | |
| 1 x HDMI™ (up to 3840*2160 @30Hz) | |
| 2 x USB 3.2 Gen2 | |
| OS Compatible | |
|---|---|
| OS Compatible | Windows 10/11 IoT, Linux |
ORDERING
| AFL4-W133-ADLP-Ri7E/16G-R11 | 13.3″ 350cd/m² 1920×1080 fanless panel PC with Intel® Core™ i7-1370PE on-board processor, 16GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R11 |
| AFL4-W133-ADLP-Ri5E/8G-R11 | 13.3″ 350cd/m² 1920×1080 fanless panel PC with Intel® Core™ i5-1340PE Pon-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2module, PCAP touch, 12V DC, R11 |
| AFL4-W133-ADLP-Ri3E/8G-R11 | 13.3″ 350cd/m² 1920×1080 fanless panel PC with Intel® Core™ i3-1320PE on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R11 |

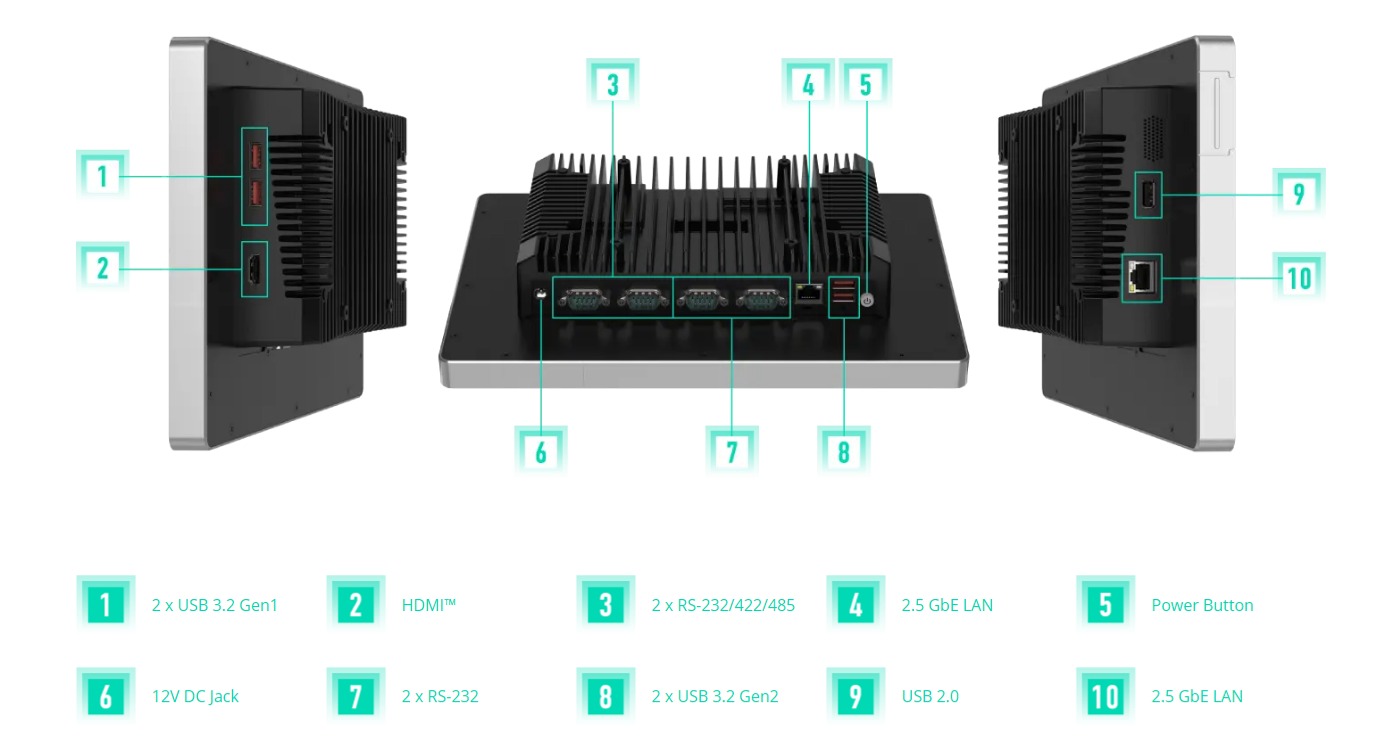

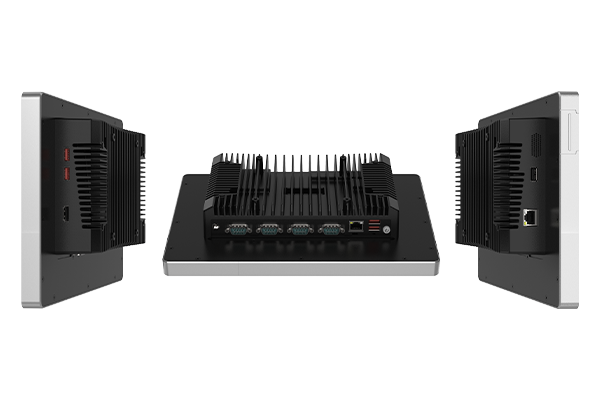

I/O

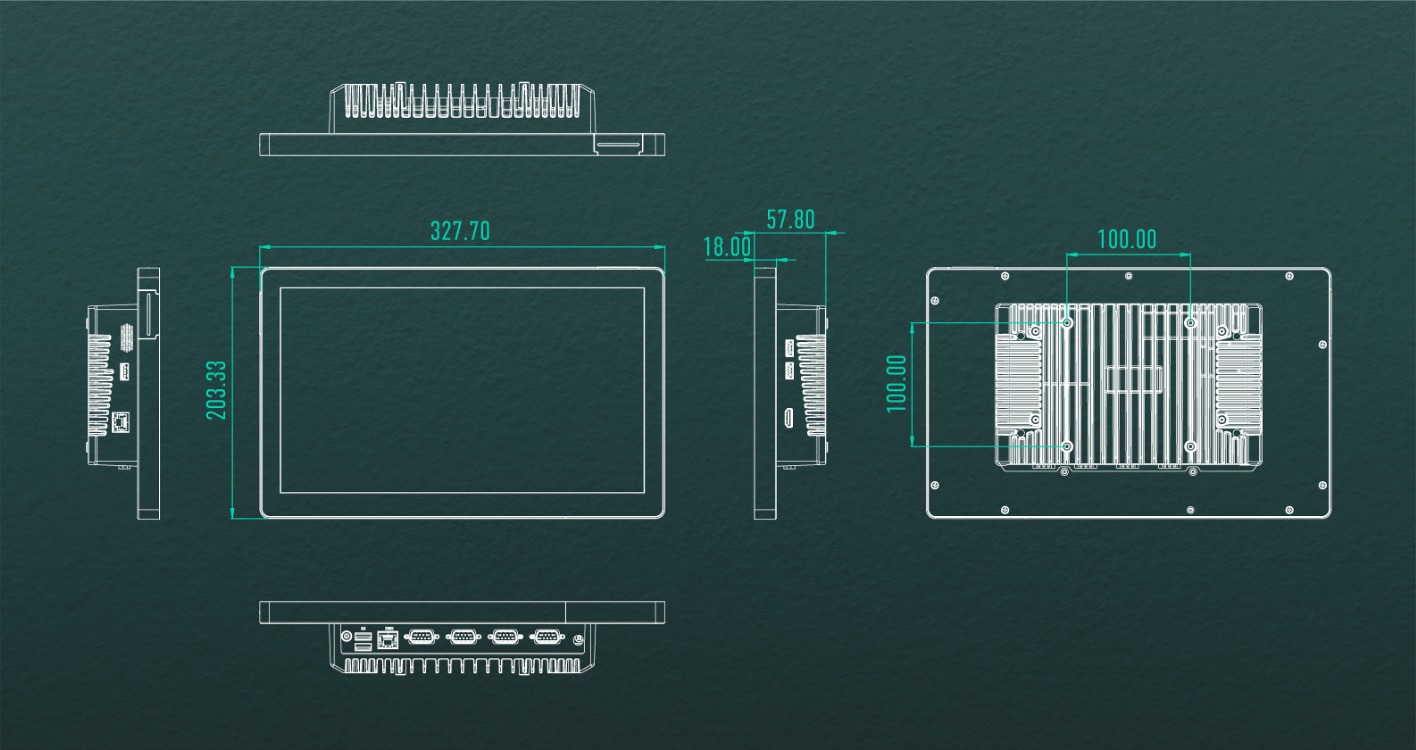

DIMENSIONS
