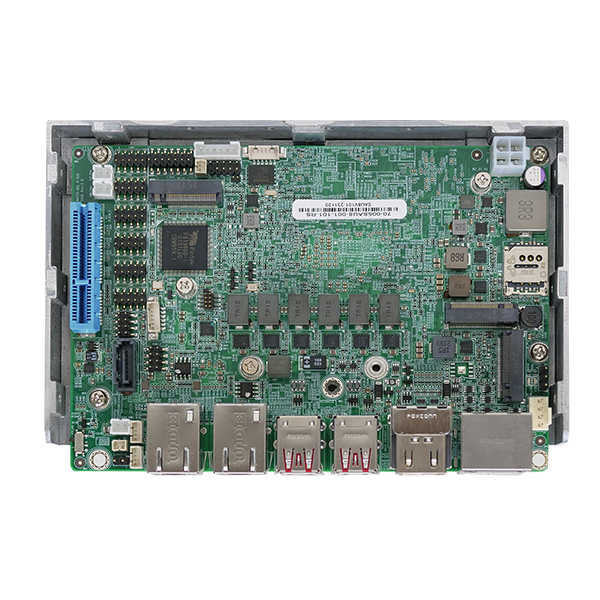

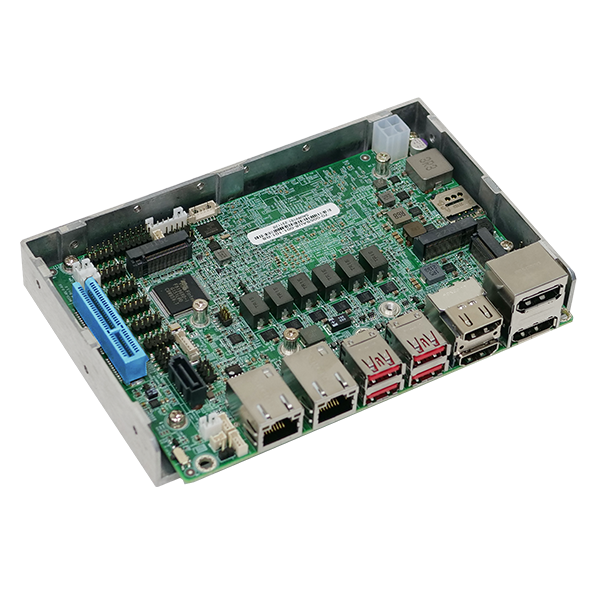

The WAFER-ADL-P is a 3.5-inch single-board computer designed to seamlessly work with 12th/13th Gen Intel® Core™ i7/i5/i3 and Celeron® mobile processors. It comes with a reliable 8GB LPDDR4x on-board memory, typically used in high-vibration and shock environments. The quadruple 4K display connection makes the board ideal for digital signage, surveillance, maintenance, or monitoring usage. The PCIe x4 expansion offers additional extensive I/O and function expansion capabilities. To summarize, the WAFER-ADL-P is compact but versatile, able to adapt to various IoT applications such as surveillance, EV charging stations, AMR, and smart energy management.
4K Quadruple Independent Displays
The WAFER-ADL-P integrates Intel® Iris® Xe Graphics, delivering up to 2.47x faster graphics performance compared to 11th Gen Intel Core processors. With Intel® Iris® Xe Graphics, the board can feature up to 96 graphics EUs and also provide up to four concurrent 4K independent displays. This is ideal for video wall and surveillance applications.
Outwards-facing Expansions:
Two PCIe x1 / One PCIe x2
The outwards-facing riser card, NWR-L2S, enables the connection of up to two outwards-facing PCIe x1 slots via one PCI Express interface. Although may take up more space, it can help enhance the airflow and heat transfer within the system. It is ideal for the chassis that is wide enough for the expansion card to be placed.
Inwards-facing Expansions:
Two PCIe x1 / One PCIe x2
The inwards-facing riser card, NWR-R2S, enables the connection of up to two inwards-facing PCIe x1 slots via one PCI Express interface. It is suitable for installation where space is limited. With higher height to increase spacing between boards, it can ensure efficient heat dissipation for space-constrained applications.
PCIe x4 Interface Card Expansion
The PCIe Gen3 x4 (x2 signal) slot, providing high-speed data transfer rate of up to 2GB/s, allows for additional customization and expansion. Directly installing a PCIe card enables the motherboard to run more complex and challenging tasks at the edge.
Enhanced Stability and Easy Installation

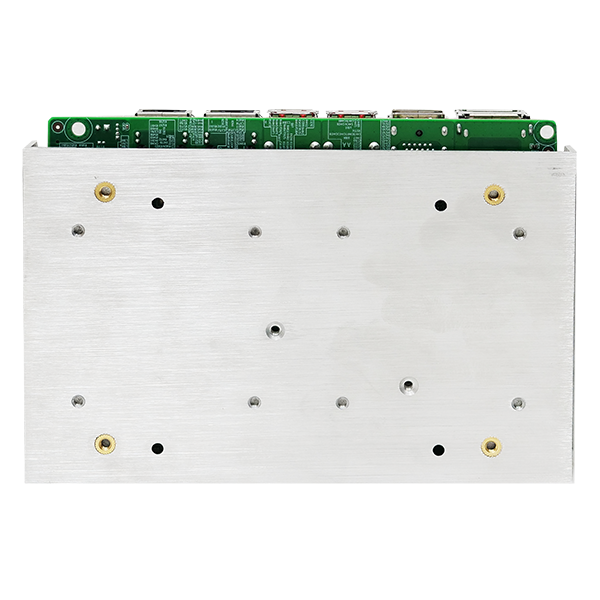

Both of the riser cards can be firmly secured to enhance stability by using the L-shaped bracket, in which screw holes are perfectly matched with those on the side of the heat spreader to make it simple and easy to install.
DIMENSIONS
WAFER-ADL-P
SBC with Outwards Facing Riser Card
SBC with Inwards Facing Riser Card
SPECIFICATIONS
| System | |
|---|---|
| CPU | 12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC |
| Memory | On-board LPDDR4x 3200 MHz 8GB up to 32GB |
| Memory Max. | 32GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 146mm x 102mm |
| Net Weight | 350g |
| Storage | |
| Storage | 1 x SATA : 6Gb/s |
| 1 x M.2(NGFF): M.2 M Key 2242/2280 (PCIe Gen3 x4) | |

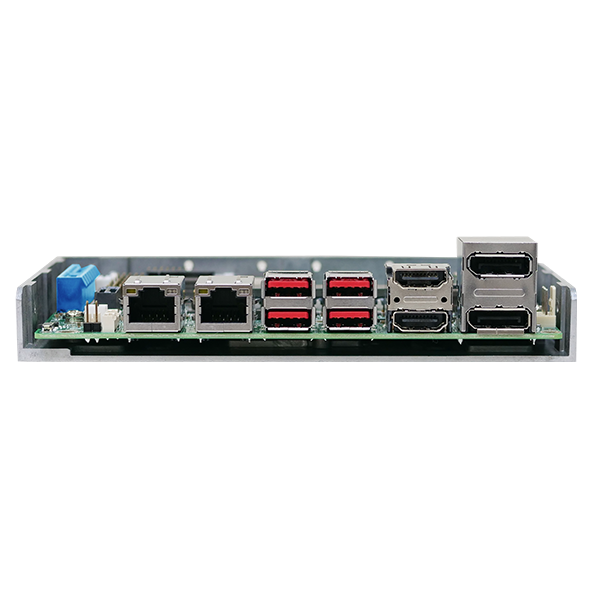

| I/O Interface | |
| Display Output | 2 x HDMI™: up to 4096×2160 @ 30Hz |
| 2 x Display Port: up to 4096 x 2160 @60Hz | |
| Ethernet | 2 x LAN – LAN1: Intel® I225V/I226V 2.5GbE controller LAN2: Intel® I225V/I226V 2.5GbE controller |
| Audio | 1 x HD Audio: 1 x iAUDIO, support IEI AC-KIT-888S Audio Module (2×5 pin) |
| I/O Interface | 4 x Internal RS-232: 2×5 pin, P=2.0 |
| 2 x Internal RS-232/422/485: 2×5 pin, P=2.0 | |
| 4 x Internal USB 2.0: 2×4 pin, P=2.0 | |
| 4 x External USB 3.2 Gen2x1: 10Gb/s(Type A) | |
| Expansion | 1 x PCIe x4: PCIe Gen3 x4 (x4 & x2+x2) |
| 3 x M.2(NGFF) – 1 x M.2 A Key 2230 for WIFI & BT (PCIe Gen3 x 1 & USB 2.0) 1 x M.2 M Key 2242/2280 (PCIe Gen3 x4) 1 x M.2 B Key 3042 (PCIe x2 & USB 2.0) 1 x On-board SIM card socket (hinge type) for M.2 B key |
|
| Power | |
| Power Consumption | 12V@2.83A (12th Gen Intel® Core™ i7-1265UE CPU with 8 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode enabled) |
| Power Supply | ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
ORDERING
| WAFER-ADL-P-i7C-R10 | 3.5 SBC supports Intel® Alder Lake-P Core™ i7-1255U Processor with 8GB LPDDR4x memory on board default, with DP, HDMI™, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS |
|---|---|
| WAFER-ADL-P-i5C-R10 | 3.5 SBC supports Intel® Alder Lake-P Core™ i5-1235U Processor with 8GB LPDDR4x memory on board default, with DP, HDMI™, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS |
| WAFER-ADL-P-i3C-R10 | 3.5 SBC supports Intel® Alder Lake-P Core™ i3-1215U Processor with 8GB LPDDR4x memory on board default, with DP, HDMI™, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS |
| WAFER-ADL-P-CC-R10 | 3.5 SBC supports Intel® Alder Lake-P Celeron® 7305 SoC Processor with 8GB LPDDR4x memory on board default, with DP, HDMI™, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS |
PACKAGE CONTENTS
| Package Contents |
|
|---|
