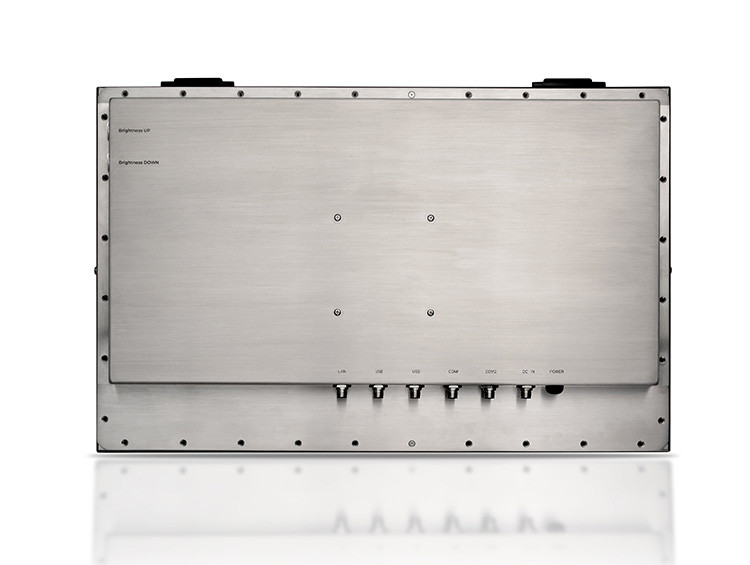

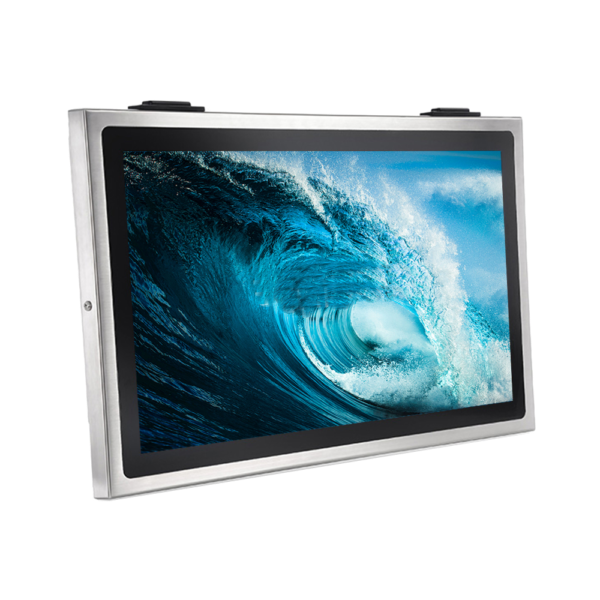

Introducing the 24″ Stainless Steel Computer, a pinnacle of industrial computing. Fueled by an Intel 12th Generation CPU and Windows 11, it combines cutting-edge performance with a sleek interface. Notably, its IP69K Waterproof M12 connectors make it impervious to challenging environments, solidifying its role in food processing and pharmaceutical clean rooms. Crafted from stainless steel and featuring a robust flat WiFi antenna, this computer guarantees durability and uninterrupted connectivity, setting a new standard for reliability in demanding workplaces. For those seeking a powerful, resilient, and technologically advanced computing solution, the 24″ Stainless Steel Computer stands as the epitome of industrial excellence. CONTACT US today for TS-7010-24 pricing.
SPECIFICATIONS
Primary Components
| Processor Family |
Intel Core I series 12th Generation Alder Lake |
| Processor Model |
Core i5-1245UE |
| Processor Speed |
Up to 4.4 GHz |
| Memory Type |
2x DDR4 SO-DIMM |
| Memory Support |
4GB, 8GB, 16GB, 32GB, 64GB |
| Storage Type |
1x 2.5″ SATA Drive Bay for SSD/HDD (easily accessible), 1x M.2 2280 NVME SSD slot |
| Storage Support |
128GB-2TB |
Display
| Screen Size |
23.8″ |
| Screen Resolution |
1920 x 1080 (Full HD) |
| Screen Ratio |
16:9 |
| Brightness |
250 nits |
Touch Screen
| Touch Screen |
5 Wire Resistive, Projected Capacitive (Multi-touch) |
| Hardness |
Resistive: 3H, P-cap: 7H |
External I/O Ports
| USB |
2x M12 8Pin for USB 1/2 and USB 3/4 |
| Serial / Com |
2x M12 8-pin for COM |
| Serial Protocol Detail |
RS-232/422/485 |
| Ethernet / LAN |
1x M12 8pin RJ45 Gbe LAN |
| Video Outputs |
Optional Display Port 1.4 through USB-C |
| Other Ports |
Optional 1X USB-C 3.2 through M20 connector on bottom Bezel |
| Power Input Port |
M12 type 5-PIN DC-in |
Power
| Input Voltage Range |
12-28V DC |
| Standard Power Adapter |
AC 100 ~ 277V / DC output 24V, 5A, 120W, IP68 |
Operating Systems
| Windows |
Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
Compatibility
| Security Hardware |
fTPM 2.0 |
Expansion Slots
| Internal M.2 |
1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option), 1x M.2 for NVME SSD Support |
Thermal & Environmental
| Operating Temperature |
0°C – 50°C (32°F – 122°F) |
| Storage Temperature |
-20°C – 60°C (-4°F – 140°F) |
| Cooling Solution |
Passive – Fanless |
| Humidity Range |
10% – 90% Non-condensing |
Enclosure
| Material |
Optional SUS316 Stainless Steel, SUS304 Stainless Steel |
| IP Rating |
IP66, IP69K, NEMA 4X |
| Color |
Stainless Steel |
| Control Buttons |
Brightness Down, Brightness Up, Power Button |
| Mounting Options |
Floor Stand, Swing Arm, Table Mount, VESA 100 Mount, Wall Mount |
Peripherals & Wireless Connectivity
| WiFi |
Optional Wi-Fi 6 802.11 AX Dual Band, with Robust Flat Antennas |
| Bluetooth |
Optional Bluetooth 5.3 |
| Sim Card |
1x SIM Card Slot |
| Barcode Scanner |
Optional 1D/2D Barcode Scanner |
| RFID |
Optional RFID Reader |
Weight / Dimensions
| Weight |
14.8 kg (32.6 lbs) |
| Dimensions |
627 x 396 x 64 mm (24.7 x 15.6 x 2.5 in) |
