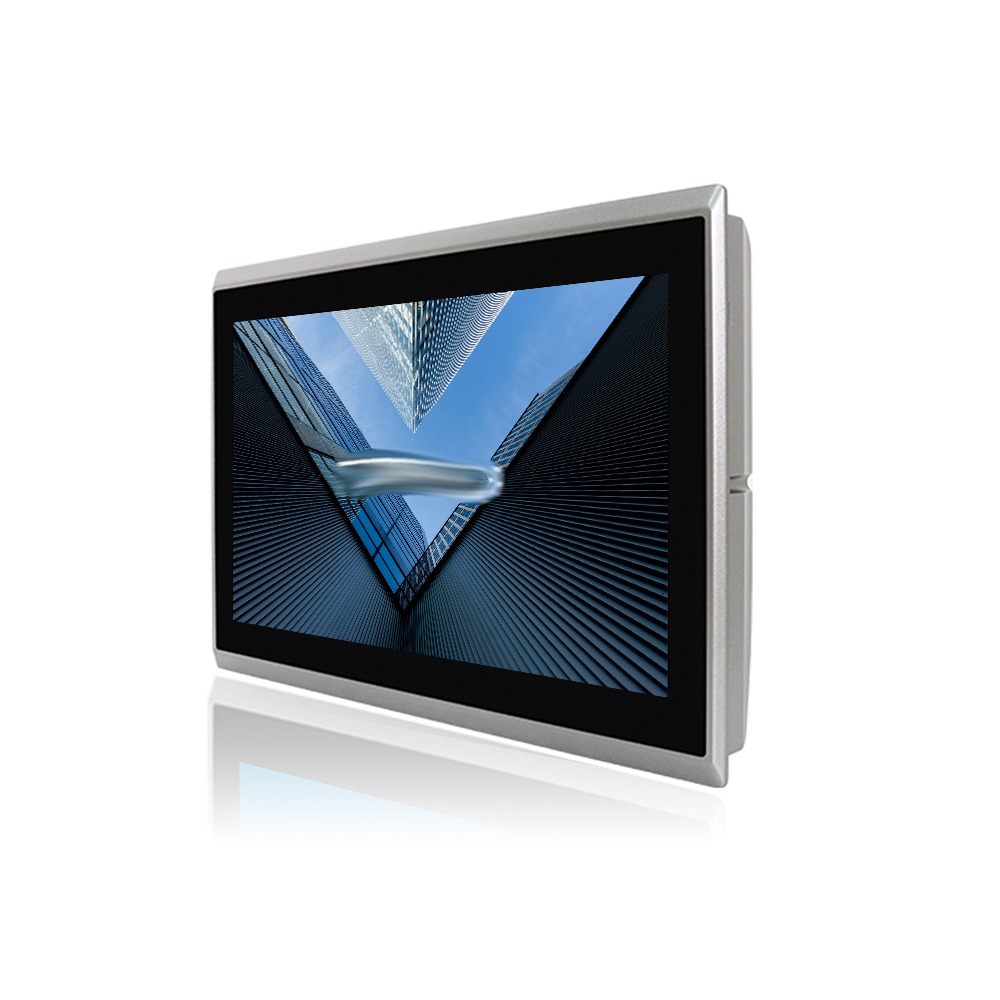

Meet Cornerstone, the TP-7045-16 16” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.
Lay the groundwork for your industrial application with Cornerstone. CONTACT US today for TP-7045-16 pricing.
SPECIFICATIONS
Primary Components
| Processor Family | Intel Core I series 12th Generation Alder Lake |
| Processor Model | Core i3-1215U |
| Processor Speed | Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB |
| Storage Type | 1x M.2 2280 NVME SSD slot |
| Storage Support | M.2: 256GB-1TB |
Display
| Screen Size | 15.6″ |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | Optional 1000 nit High Brightness, 500 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch), Resistive |
External I/O Ports
| USB | 2x USB 2.0, 2x USB 3.0 |
| Serial / Com | 3x COM |
| Serial Protocol Detail | COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232 |
| Ethernet / LAN | 2x RJ45 GbE LAN |
Power
| Input Voltage Range | 9-36V DC |
Peripherals & Wireless Connectivity
| WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 |
| Bluetooth | Optional Bluetooth 5.3 |
Weight / Dimensions
| Weight | 4.5 kg (9.9 lbs) |
| Dimensions | 412 x 78 x 277.5 mm (16.2 x 3.1 x 10.9 in) |
Warranty
| Warranty | Up to 5 Years |

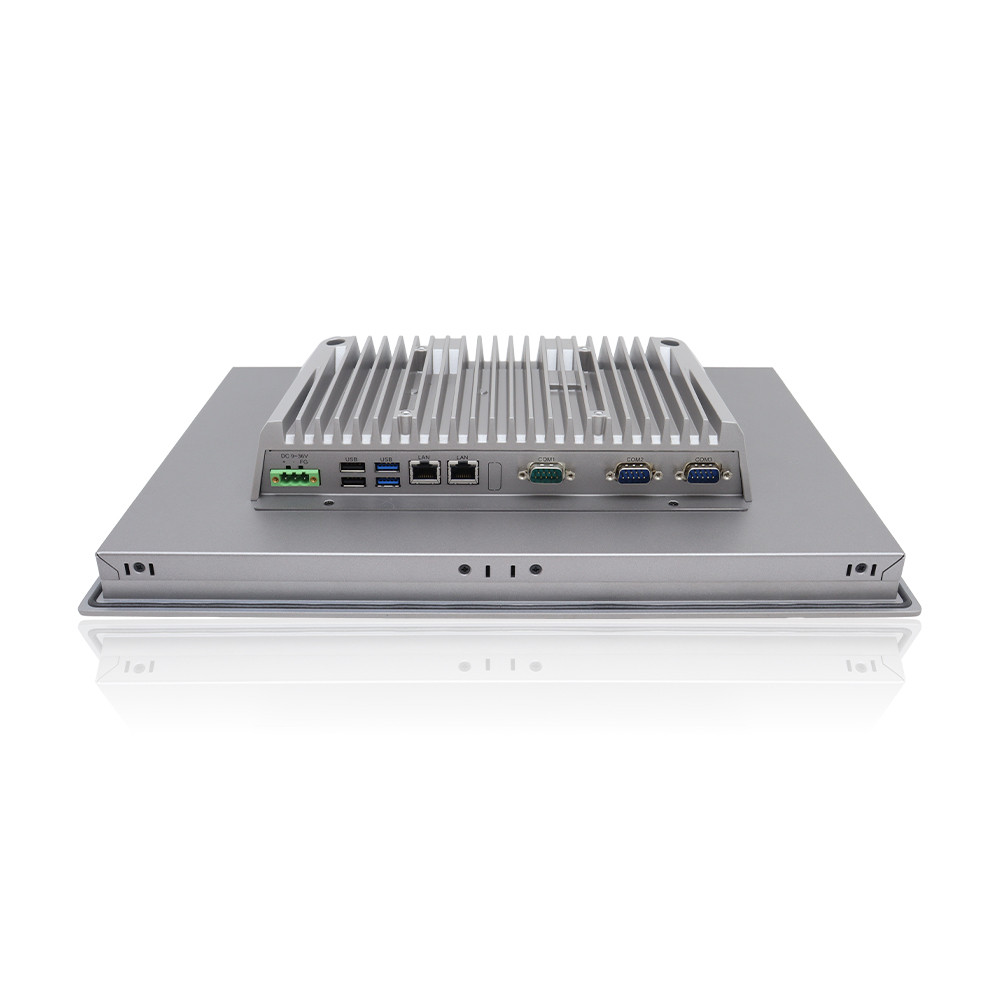

I/O
DIMENSIONS
