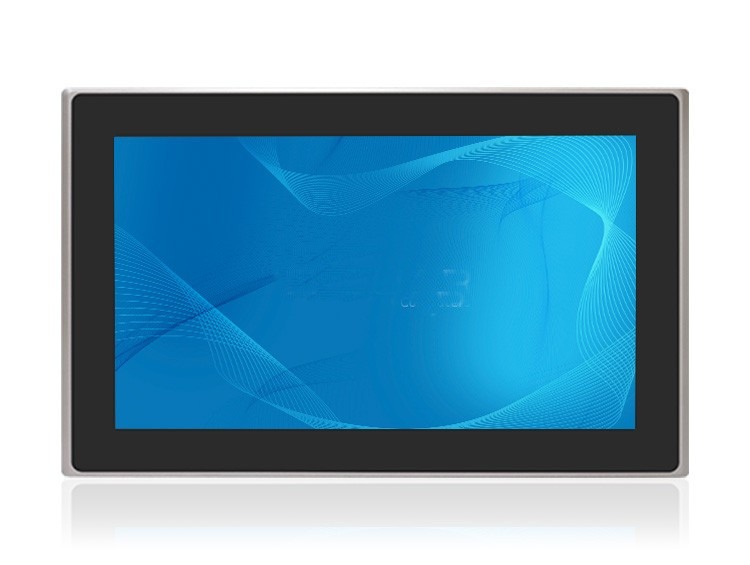

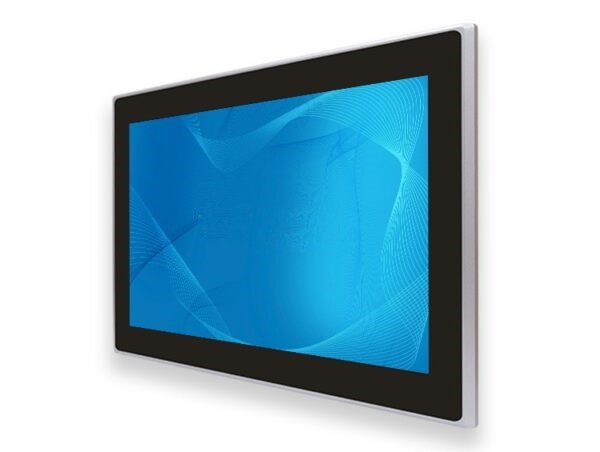

The 23.8” TP-4845-24 Panel PC epitomizes high performance and reliability. Featuring a die-cast aluminum housing and IP66-rated front bezel, it offers robust protection for industrial environments. The unit’s Intel J6412 Quad Core processor guarantees seamless operation on Windows 11. The TP-4845-24 provides versatile I/O options, enhancing its adaptability. The integrated WiFi 6 helps effortlessly meet industrial connectivity requirements. This 23.8” Panel PC an ideal solution for applications requiring rugged and dependable computing.
Industrial Automation Control Systems: The TP-4845 is powered by the Intel J6412 Quad Core processor, ensuring seamless Windows 11 operation for precise control in industrial automation. With a full flush IP66 rated front bezel and integrated WiFi 6 capability, it’s ideal for standard industrial applications.
Manufacturing Process Monitoring: The TP-4845 Flush Mount Panel PC series excels in rugged manufacturing applications for process monitoring. Featuring a full flush IP66 rated front bezel, it ensures reliable performance in environments with dust and dirt. With integrated WiFi 6, it offers connectivity support.
Machine Vision and Quality Inspection: The TP-4845, powered by the Intel J6412 Quad Core processor, is a reliable choice for machine vision and quality inspection. Offering seamless Windows 11 operation and integrated WiFi 6, it suits rugged manufacturing environments with its full flush IP66 rated front bezel. Available in various screen sizes with both capacitive and resistive touch options, providing flexibility for user interaction.
CONTACT US today for a TP-4845-24 quote.
SPECIFICATIONS
Primary Components
| Processor Family |
Intel Celeron Elkhart Lake |
| Processor Model |
Celeron J6412 |
| Processor Speed |
2.0 GHz, Up to 2.6 GHz |
| Memory Type |
1x DDR4 SO-DIMM |
| Memory Support |
4GB, 8GB, 16GB, 32GB |
| Storage Type |
1x M.2 SATA3 2242 Slot |
| Storage Support |
M.2: 256GB-1TB |
Display
| Screen Size |
23.8″ |
| Screen Resolution |
1920 x 1080 (Full HD) |
| Screen Ratio |
16:9 |
| Brightness |
250 nits |
Touch Screen
| Touch Screen |
Projected Capacitive (Multi-touch) |
External I/O Ports
| USB |
2x USB 2.0, 2x USB 3.2 |
| Serial / Com |
1x COM |
| Serial Protocol Detail |
RS-232 Default/RS-422/RS-485 |
| Ethernet / LAN |
2x RJ45 2.5 GbE LAN |
| Video Outputs |
1x DisplayPort |
| Audio Ports |
1x 3.5mm Audio Line-Out |
| Power Input Port |
DC-in Jack (Phoenix Type) |
Power
| Input Voltage Range |
9-36V DC |
| Standard Power Adapter |
12Vdc 5Amp, 60W US AC Power Cord |
Battery
| Battery Type |
Optional Internal Battery |
Operating Systems
| Windows |
Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
Compatibility
| Security Hardware |
TPM 2.0 |
Expansion Slots
| Internal M.2 |
1x M.2 2230 Key E (for WiFi expansion option) |
| SD card |
1x Micro SD Slot |
Multimedia
Thermal & Environmental
| Operating Temperature |
0°C – 50°C (32°F – 122°F) |
| Storage Temperature |
-30°C – 70°C (-22°F – 158°F) |
| Cooling Solution |
Passive – Fanless with Heatsink |
| Humidity Range |
10% – 95% Non-condensing |
Enclosure
| Material |
Aluminum |
| IP Rating |
IP66 Front Bezel |
| Color |
Gray |
| Mounting Options |
Panel Mount, VESA 100 Mount |
Peripherals & Wireless Connectivity
| WiFi |
Optional WiFi 5 or 6 |
| Bluetooth |
Optional Bluetooth 4.0, Optional Bluetooth 5.3 |
Weight / Dimensions
| Weight |
14.8 kg (32.6 lbs) |
| Dimensions |
640 x 65.1 x 395 mm (25.2 x 2.6 x 15.6 in) |
Certification
| Certifications |
CE, FCC, UL 62368 |
Warranty

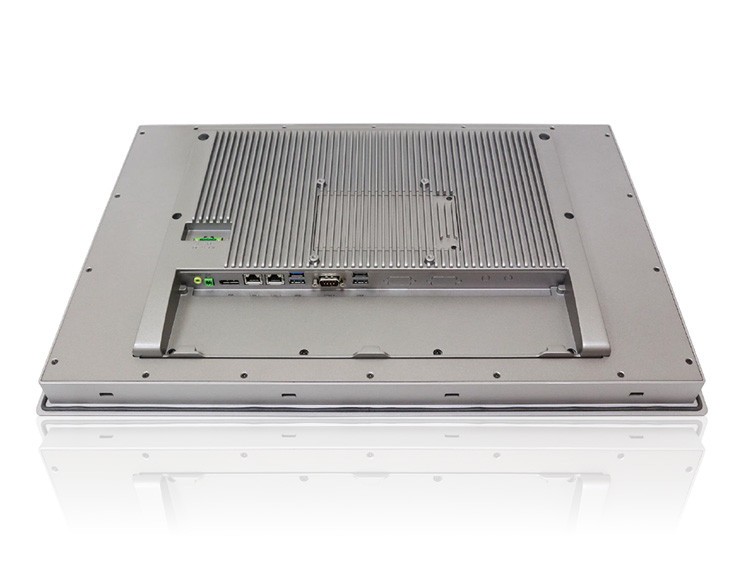

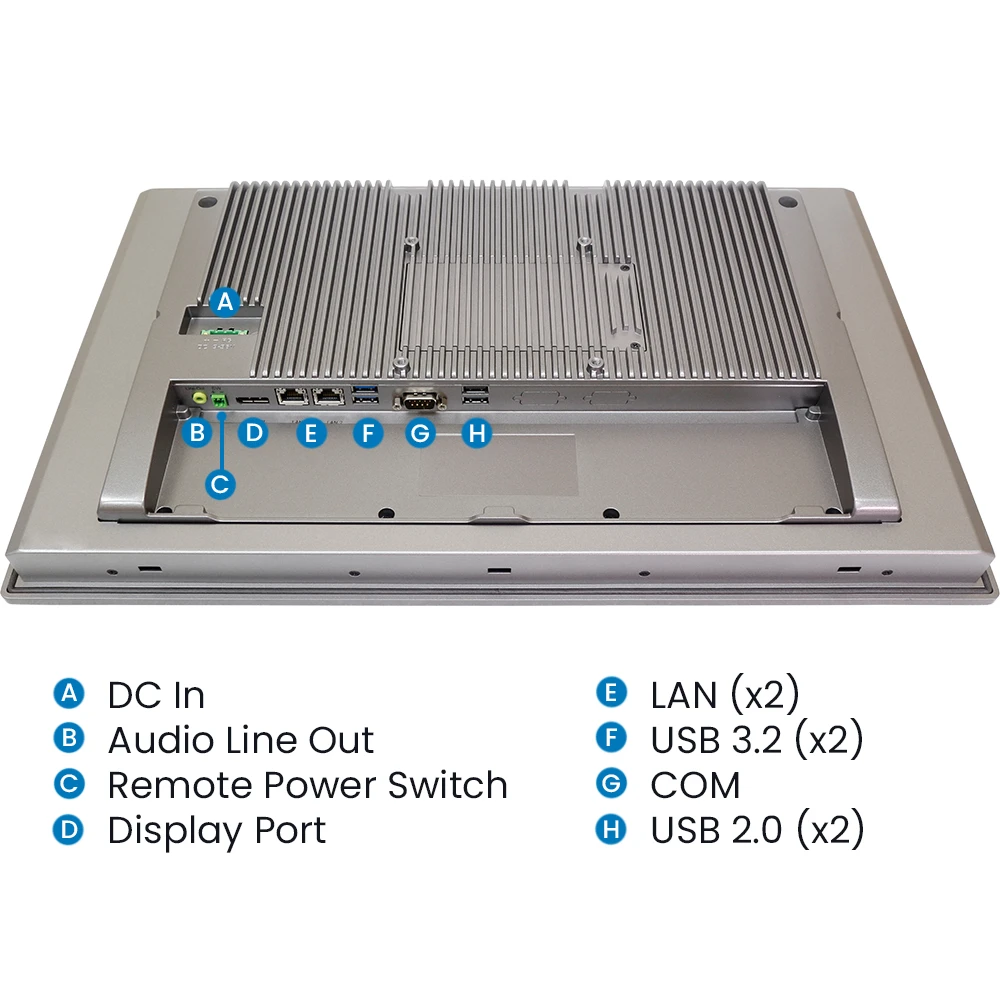

I/O

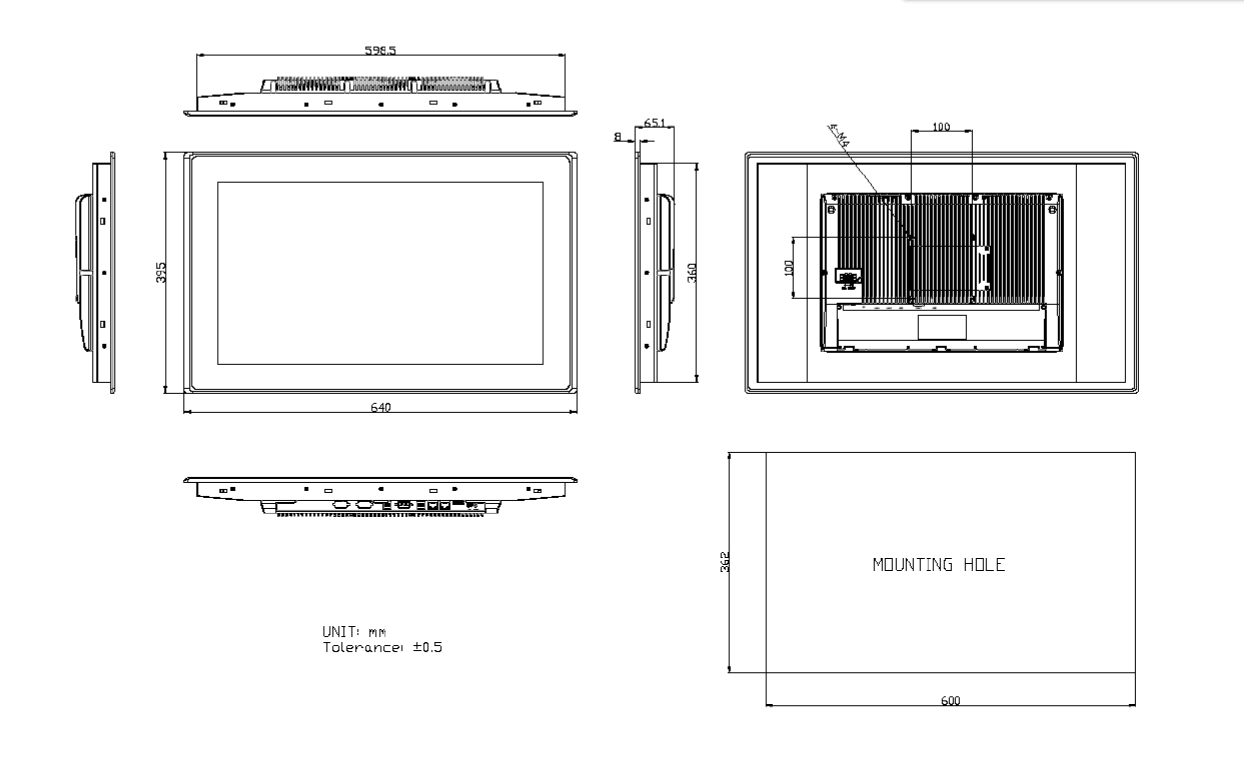

DIMENSIONS
