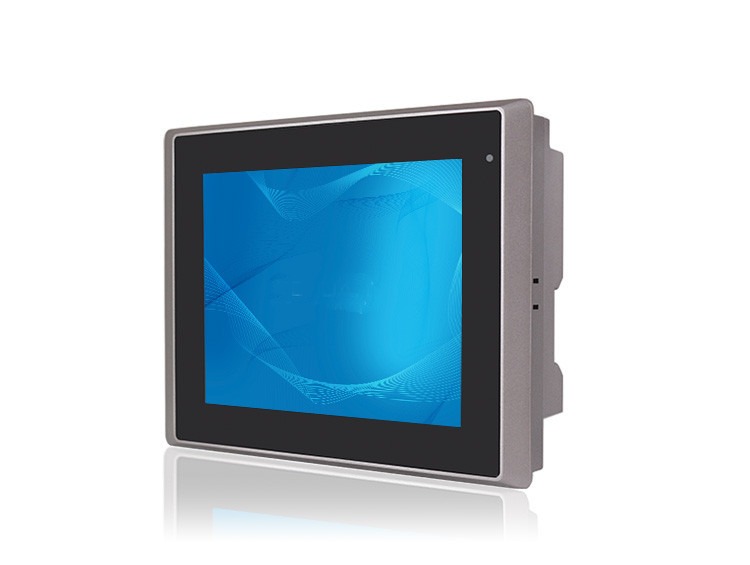

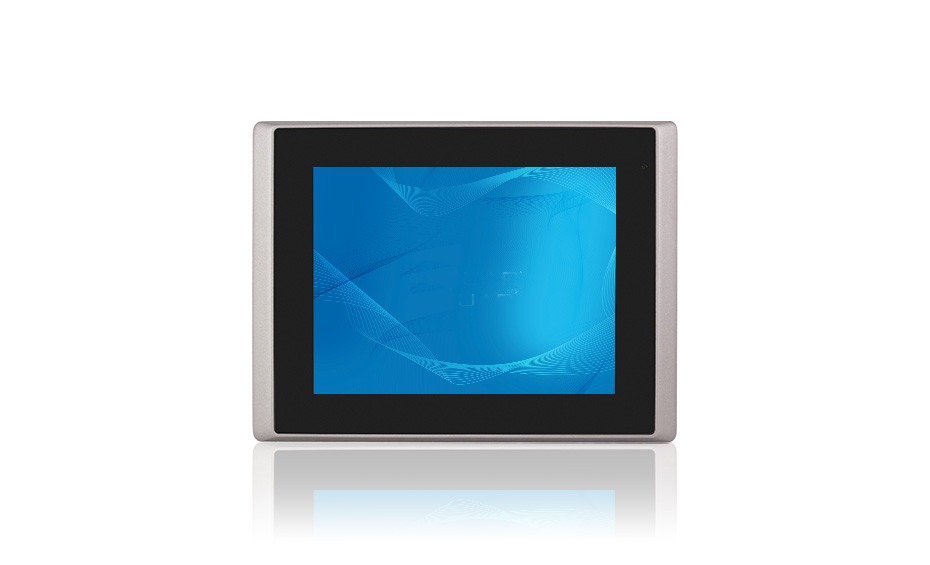

The 8” TP-4845-08 Panel PC is powered by an Intel Celeron J6412 Quad Core processor and is built to last. With an IP66 rated aluminum die-cast housing, this Panel PC is ideal for rugged manufacturing applications where dust and debris are present. You can enjoy all the latest features with the Windows 11 operating system. Tailor the TP-4845-08 to your specific project by adding customizable I/Os such as extra USB and COM ports. The 8” screen size comes in either a resistive or PCAP touch option.
Industrial Automation Control Systems: The TP-4845 is powered by the Intel J6412 Quad Core processor, ensuring seamless Windows 11 operation for precise control in industrial automation. With a full flush IP66 rated front bezel and integrated WiFi 6 capability, it’s ideal for standard industrial applications.
Manufacturing Process Monitoring: The TP-4845 Flush Mount Panel PC series excels in rugged manufacturing applications for process monitoring. Featuring a full flush IP66 rated front bezel, it ensures reliable performance in environments with dust and dirt. With integrated WiFi 6, it offers connectivity support.
Machine Vision and Quality Inspection: The TP-4845, powered by the Intel J6412 Quad Core processor, is a reliable choice for machine vision and quality inspection. Offering seamless Windows 11 operation and integrated WiFi 6, it suits rugged manufacturing environments with its full flush IP66 rated front bezel. Available in various screen sizes with both capacitive and resistive touch options, providing flexibility for user interaction.
CONTACT US today for TP-4845-08 pricing.
SPECIFICATIONS
Primary Components
| Processor Family |
Intel Celeron Elkhart Lake |
| Processor Model |
Celeron J6412 |
| Processor Speed |
2.0 GHz, Up to 2.6 GHz |
| Memory Type |
1x DDR4 SO-DIMM |
| Memory Support |
4GB, 8GB, 16GB, 32GB |
| Storage Type |
1x M.2 SATA3 2242 Slot |
| Storage Support |
M.2: 256GB-1TB |
Display
| Screen Size |
8″ |
| Screen Resolution |
800 x 600 (SVGA) |
| Screen Ratio |
4:3 |
| Brightness |
350 nits, Optional 1000 nit High Brightness |
Touch Screen
| Touch Screen |
Projected Capacitive, Resistive |
External I/O Ports
| USB |
2x USB 2.0, 2x USB 3.2 |
| Serial / Com |
1x COM |
| Serial Protocol Detail |
RS-232/422/485 (Default RS-232; select via BIOS) |
| Ethernet / LAN |
2x RJ45 2.5 GbE LAN |
| Video Outputs |
1x DisplayPort, supports DP++ |
| Audio Ports |
1x Audio Line-Out |
| Power Input Port |
3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range |
9-36V DC |
| Standard Power Adapter |
Optional 12V AC/DC Adapter, 5A, 60W |
Operating Systems
| Windows |
Windows 10 IoT, Windows 10 Pro, Windows 11 Pro |
Expansion Slots
| Internal M.2 |
1x M.2 2230 Key E (for WiFi expansion option) |
Thermal & Environmental
| Operating Temperature |
0°C – 50°C (32°F – 122°F), -20°C – 60°C (Optional -4°F – 140°F) |
| Storage Temperature |
-30°C – 70°C (-22°F – 158°F) |
| Cooling Solution |
Passive – Fanless with Heatsink |
| Humidity Range |
10% – 95% Non-condensing |
Enclosure
| Material |
Aluminum |
| IP Rating |
IP66 Front Bezel |
| Color |
Gray |
| Mounting Options |
Panel Mount, VESA 100 Mount |
Peripherals & Wireless Connectivity
| WiFi |
Optional WiFi |
| Bluetooth |
Optional Bluetooth 4.0 |
Weight / Dimensions
| Weight |
1.9 kg (4.2 lbs) |
| Dimensions |
231 x 176 x 50 mm (9.1 x 6.9 x 2.0 in) |
Certification
| Certifications |
CE, FCC, UL 62368 |
Warranty

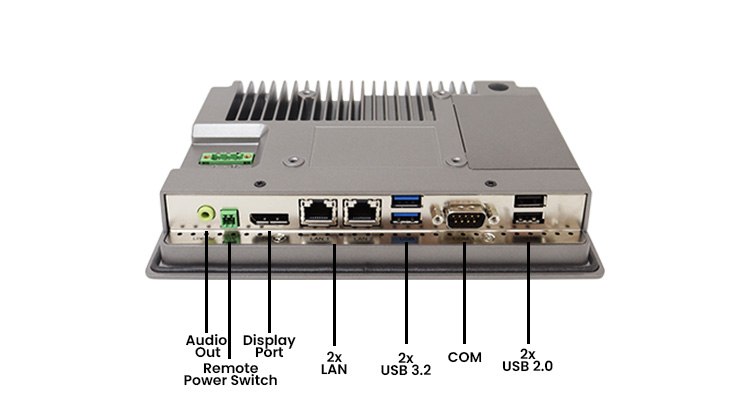

I/O

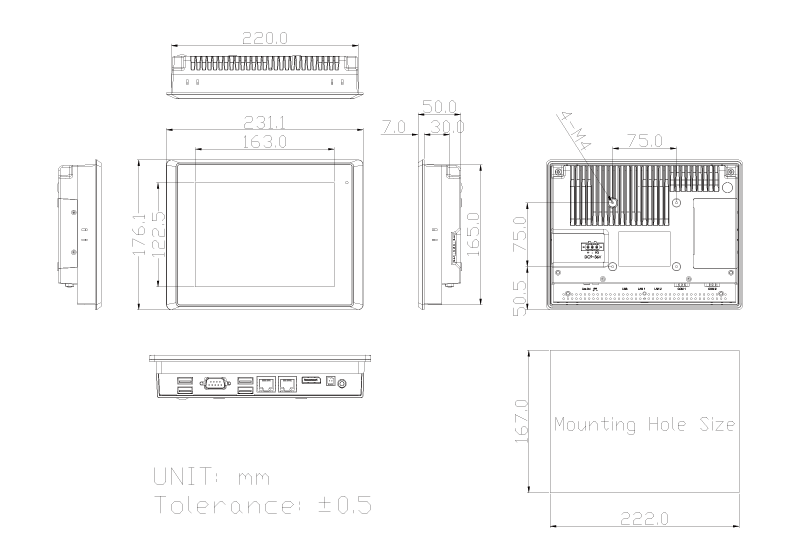

DIMENSIONS
