The TM-7110-24F 23.8″ Medical PC presents a spacious interface, ideal for critical visual tasks such as medical imaging, surgery room computing, and radiograph room operations. Medically compliant and fortified with isolated IO ports, it ensures data security. With an Intel 13th Generation Core i5 CPU, it delivers robust performance. AI is becoming essential in medical applications, and the TM-7110-24F offers AI acceleration support via DDR5. Windows 11 compatibility enhances user experience and software compatibility. With these features, the 24″ Medical PC offers a comprehensive solution for modern medical environments, prioritizing efficiency, reliability, and patient care. Contact Us today for a TM-7110-24F quote.
SPECIFICATIONS
Primary Components
| Processor Family |
Intel Core I series 13th Generation Raptor Lake |
| Processor Model |
Core i5-13500TE |
| Processor Speed |
8x Efficient Cores @1.1 GHz, up to 3.1GHz, 6x Performance Cores @ 1.3 GHz, up to 4.5 GHz |
| Memory Type |
2x DDR5 SO-DIMM |
| Memory Support |
4GB, 8GB, 16GB, 32GB, 64GB, 96GB |
Display
| Screen Size |
23.8″ |
| Resolution |
1920 x 1080 (Full HD) |
| Screen Ratio |
16:9 |
| Brightness |
250 nits |
| Contrast Ratio |
3000:1 |
| Viewing Angle |
178º (H), 178º (V) |
| Number of Colors Supported |
16.7M |
Touch Screen
| Touch Screen |
Projected Capacitive (Multi-touch) |
| Light Transmission |
Over 85% |
| Hardness |
7H |
| Lifetime Usage |
50,000 hrs |

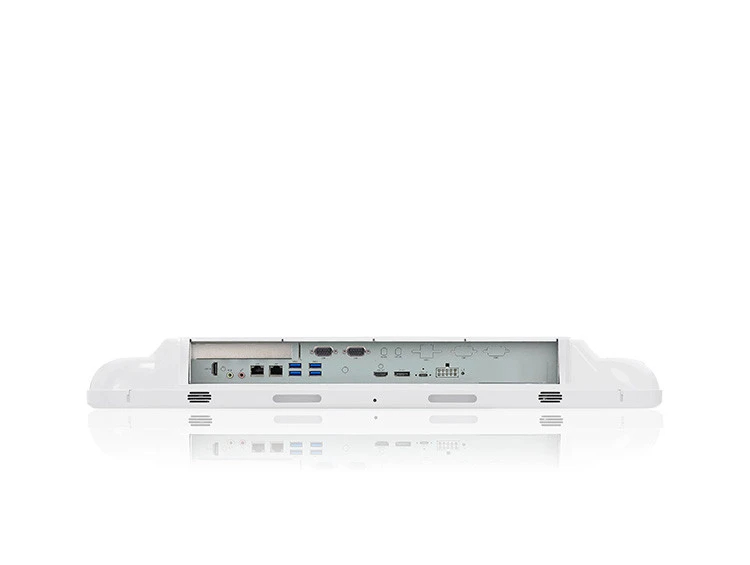

External I/O ports
| USB |
4x USB 3.2, 1x USB 3.2 Type-C (DP 1.4A) |
| Serial / Com |
2x COM |
| Serial Protocol Detail |
1x RS232/RS422/RS485, 1x RS232 |
| Ethernet / LAN |
1x RJ45 GbE LAN, 1x RJ45 2.5 GbE LAN |
| Video Outputs |
1x DisplayPort, supports DP++, 1x HDMI |
| Video Inputs |
1x HDMI-no audio |
| Audio |
1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack |
| Power Input Port |
DC-in via adapter cable |
Power
| Standard Power Adapter |
Input 100/240 AC, Output 19VDC, 250W |
Battery
| Type |
Optional 10.8V/10350mAh Battery |
| Quantity |
1x Optional Battery |
| Weight with Optional Batteries |
9.5KG (20.9 lbs) |
Operating Systems
| Windows |
Windows 11 Pro, Windows 10 IoT, Windows 10 Pro |
Compatibility
| Security Hardware |
fTPM 2.0, Intel vPro Technology: Intel AMT Supported |
Expansion Slots
| PCIe Slot |
1x PCI-E (x4) |
| PCIe Expansion Details |
40W MAX |
| video card support |
MXM, laptop graphics card NVidia A1000, A2000, A4500 |
Multimedia
| Camera |
Optional 5MP Webcam |
Thermal and Environmental
| Operating Temperature |
0°C – 40°C
(32°F – 104°F) |
| Storage Temperature |
-20°C – 60°C
(-4°F – 140°F) |
| Humidity Range |
10% – 90% Non-condensing |
| Storage Humidity |
10% – 90% Non-condensing |
| Cooling Solution |
Active – with Fan |
Enclosure
| Material |
Anti-Microbial |
| Ip Rating |
IP65 Front Bezel, IPX1 enclosure |
| Color |
White |
| Antibacterial Housing |
Yes |
| Control Buttons |
Audio Down, Audio Up, Brightness Down, Brightness Up, Clean me, Display on/off, Programming Function Key, Power Button, Reading Light |
| Mounting Options |
VESA 100 Mount |
Peripherals & Wireless Connectivity
| WiFi |
WiFi 6 / 802.11 a/b/g/n/ac/ax |
| BlueTooth |
Bluetooth 5.0 |
| RFID |
Optional 13.56 MHz |
| Smartcard Reader |
Optional |
Dimensions / Weight
| Weight |
9 KG (19.8 lbs) |
| Dimensions |
594 x 74.7 x 397 mm (23.4 x 2.9 x 15.6 in) |
Warranty

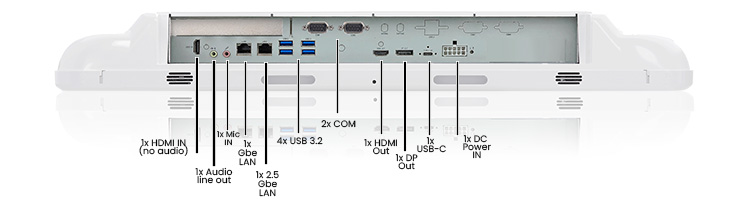

I/O

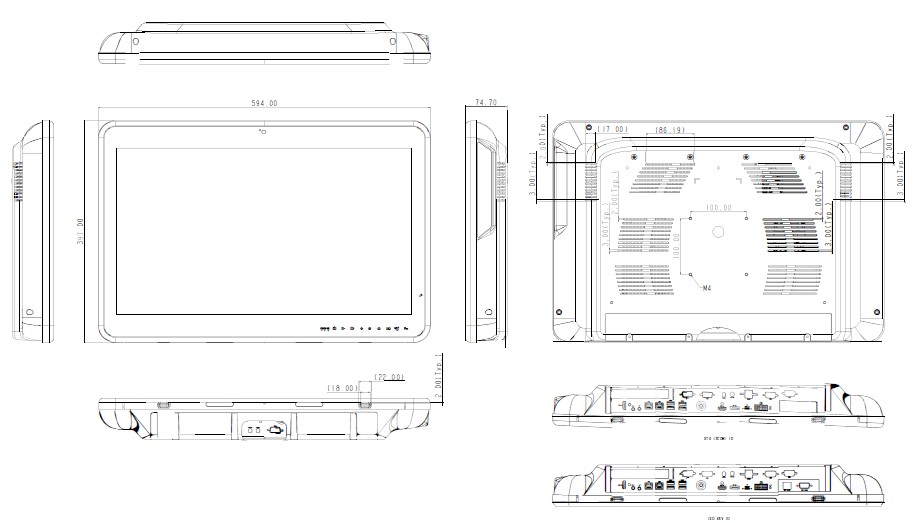

DIMENSIONS
