Host your next computing project on the rugged AI platform PC: a processor that handles tough tasks, in a box that handles tough environments.

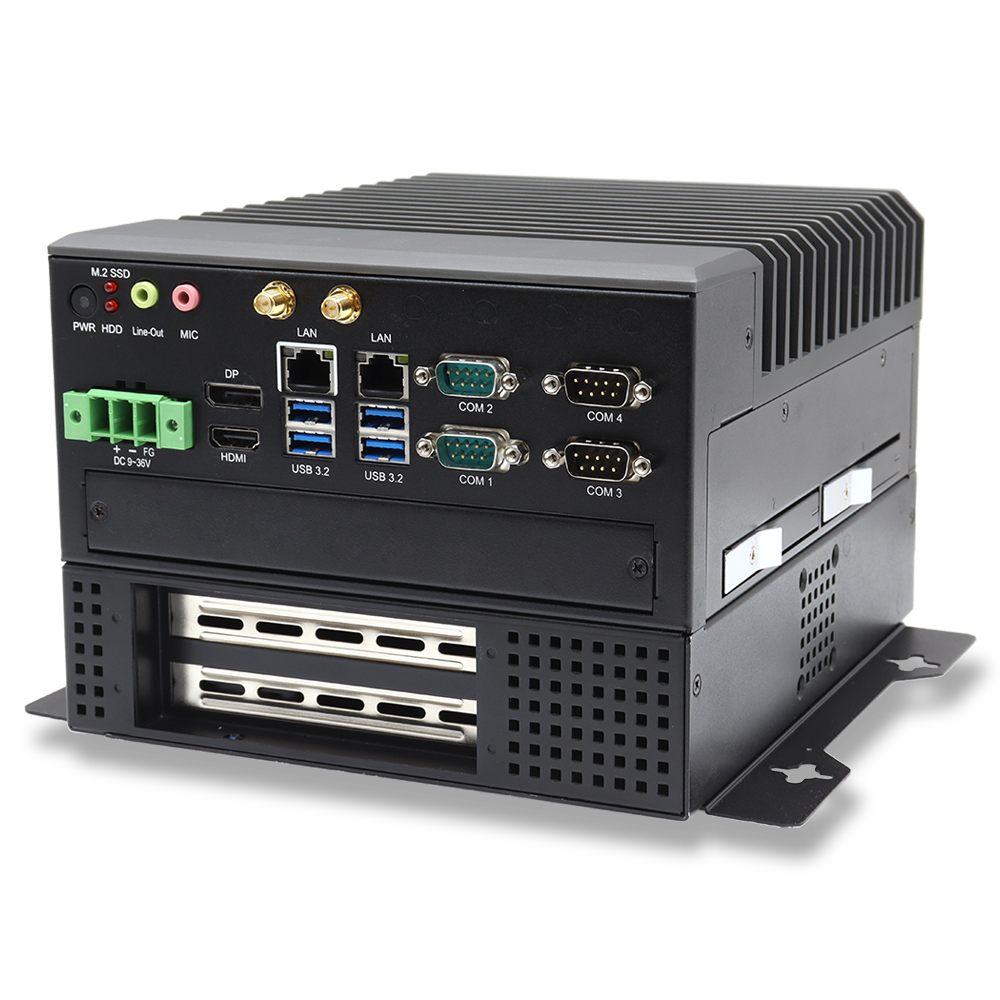

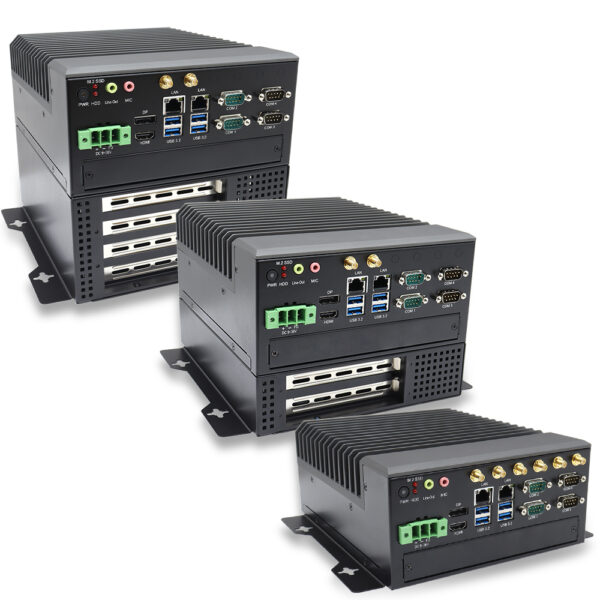

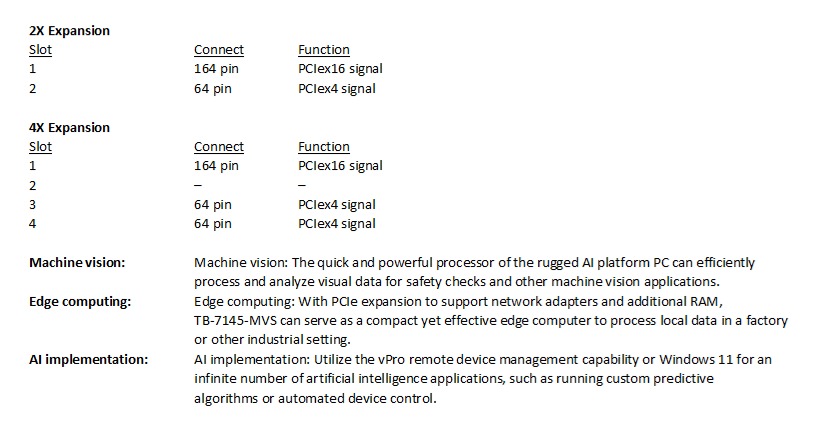

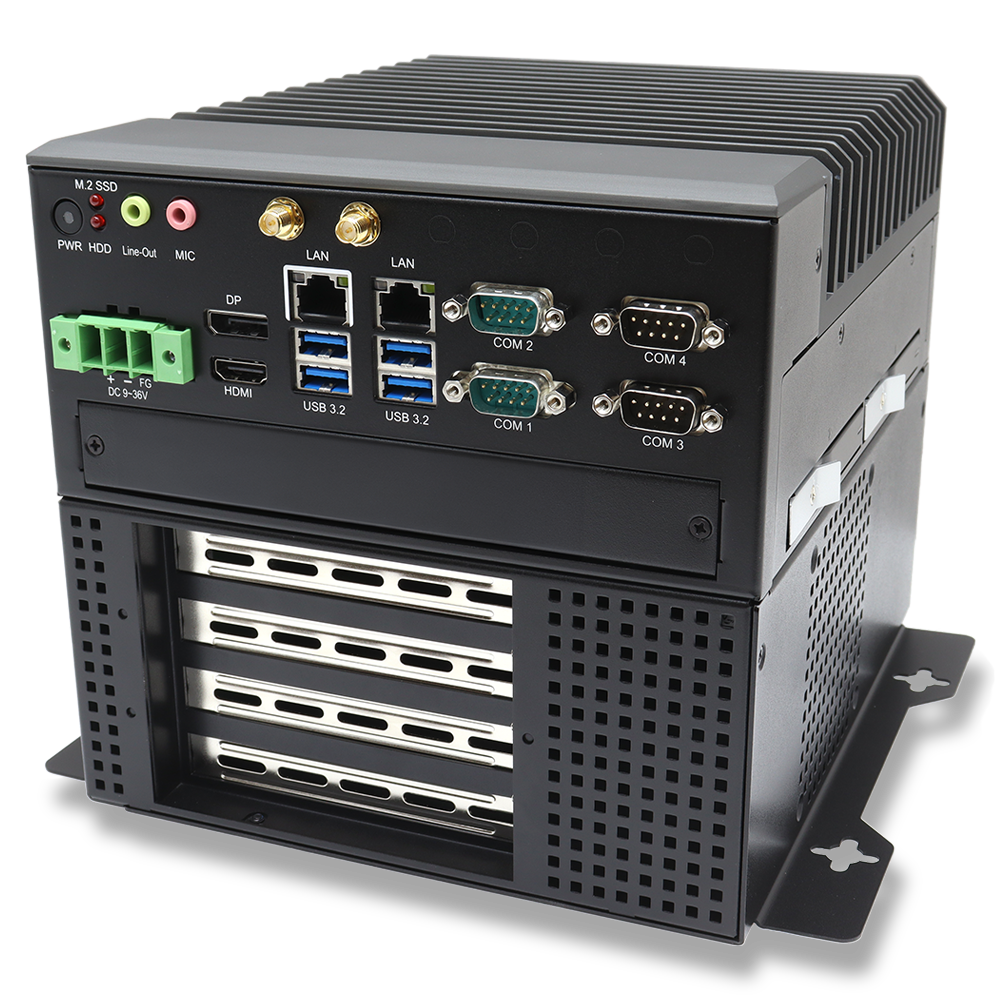

This PC’s three different forms offer different amounts of PCIe slots to suit your needs. Utilize the PCIex4 slots for Ethernet network adapters, 4K video capture cards for medical monitoring or data streaming, and raid controllers. Save the PCIex16 slot for the big jobs — a powerful Nvidia graphics card will fit right in using the 4X expansion’s extra height.
With these opportunities for expansion, IO additions, the processing power to support the most complex of machine inferencing, and a fanless, durable build, the rugged AI platform PC is built to hold down the fort where other PCs can’t hold up.
SPECIFICATIONS
Primary Components
| Processor Family |
Intel Core I series 13th Generation Raptor Lake |
| Processor Model |
Core i3-13100TE Optional, Core i5-13500TE Optional, Core i7-13700TE Optional |
| Processor Speed |
Up to 4.8 Ghz |
| Memory Type |
2x DDR5 SO-DIMM |
| Memory Support |
8GB, 16GB, 32GB, 64GB |
| Storage Type |
1x M.2 NVME SSD Slot (2242/2280), 2x 2.5″ SATA Drive Bay for SSD/HDD (easily accessible) |
| Storage Support |
Accessible Bays Support RAID 0/1, M.2 and 2.5″: 256GB – 1TB |
External I/O Ports
| USB |
4x USB 3.2 |
| Serial / Com |
4x COM |
| Serial Protocol Detail |
RS-232 Default/RS-422/RS-485 |
| Ethernet / LAN |
2x RJ45 2.5 GbE LAN |
| Video Outputs |
1x DisplayPort, supports DP++, 1x HDMI |
| Other Ports |
Optional 2x additional 2.5Gbe LAN, 2 additional USB 3.2, 8-bit GPIO |
| Audio Ports |
1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack |
| Power Input Port |
3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range |
9-32V DC |
| Standard Power Adapter |
300W No Expansion slot-NO PCIe, Expansion slot 2x PCIe and 4x PCIe use 450W |
Operating Systems
| Windows |
Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
| Linux |
Linux Ubuntu 22.04 or above (Contact your sales rep for more information) |
Compatibility
| Security Hardware |
Supports Intel Vpro i5/i7, TPM 2.0 |
Expansion Slots
| Internal M.2 |
1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option) |
| Video Card Support |
125W PCIe x16 |
Thermal & Environmental
| Operating Temperature |
-20°C – 60°C – -20°C – 50°C (-4°F – 140°F (i3/i5 CPU), -4°F – 122°F (i7 CPU)) |
| Storage Temperature |
-40°C – 85°C (-40°F – 185°F) |
| Cooling Solution |
Passive – Fanless with Heatsink |
| Storage Humidity |
10% – 90% Non-condensing |
Enclosure
| Material |
Aluminum, SECC Steel Chassis |
| Color |
Black |
| LED Indicator Light |
Power |
| Control Buttons |
Power Button |
| Mounting Options |
DIN Rail Mount, Wall Mount |
Peripherals & Wireless Connectivity
| WiFi |
Optional WiFi A/B/G/N/AC/AX -6 via M.2 E-Key slot |
| Bluetooth |
Optional Bluetooth 5.3 |
| Sim Card |
1x Nano SIM Card Slot |
Weight / Dimensions
| Weight |
3.9 kg (8.6 lbs) |
| Dimensions |
222 x 190 x 93 mm (8.7 x 7.5 x 3.7 in) |
Certification
| Certifications |
FCC and CE Compliant |
Warranty

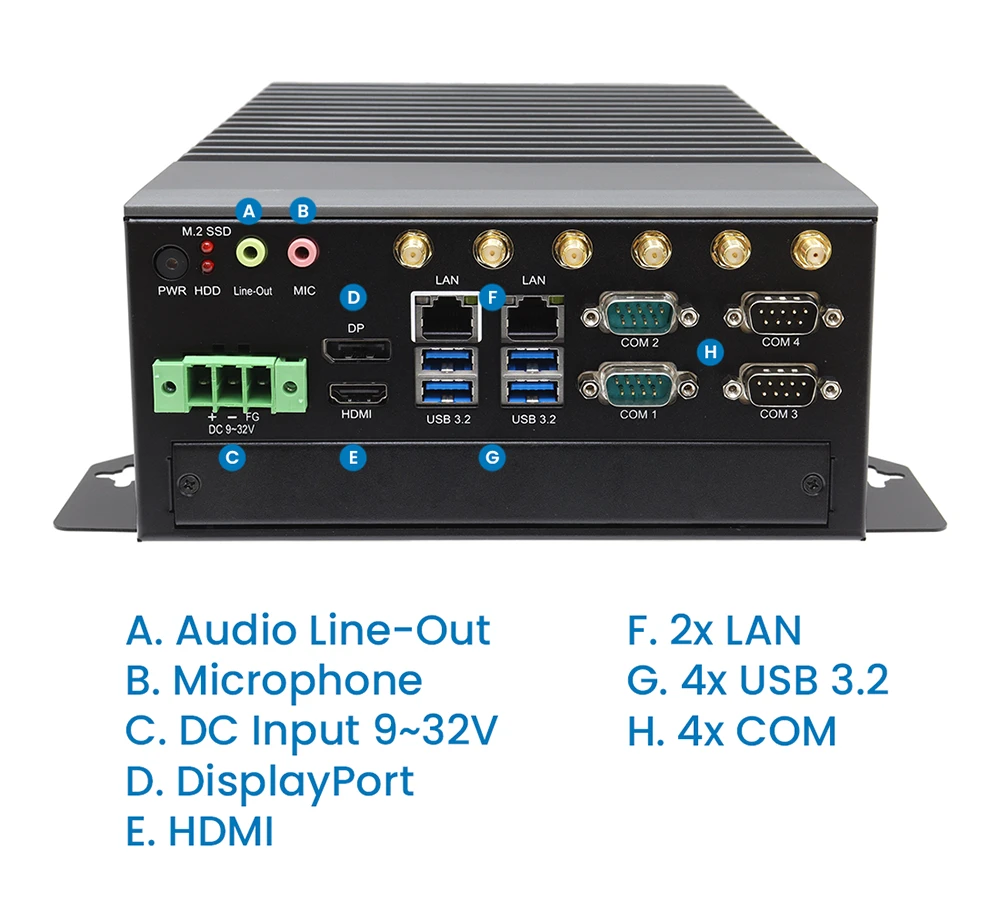

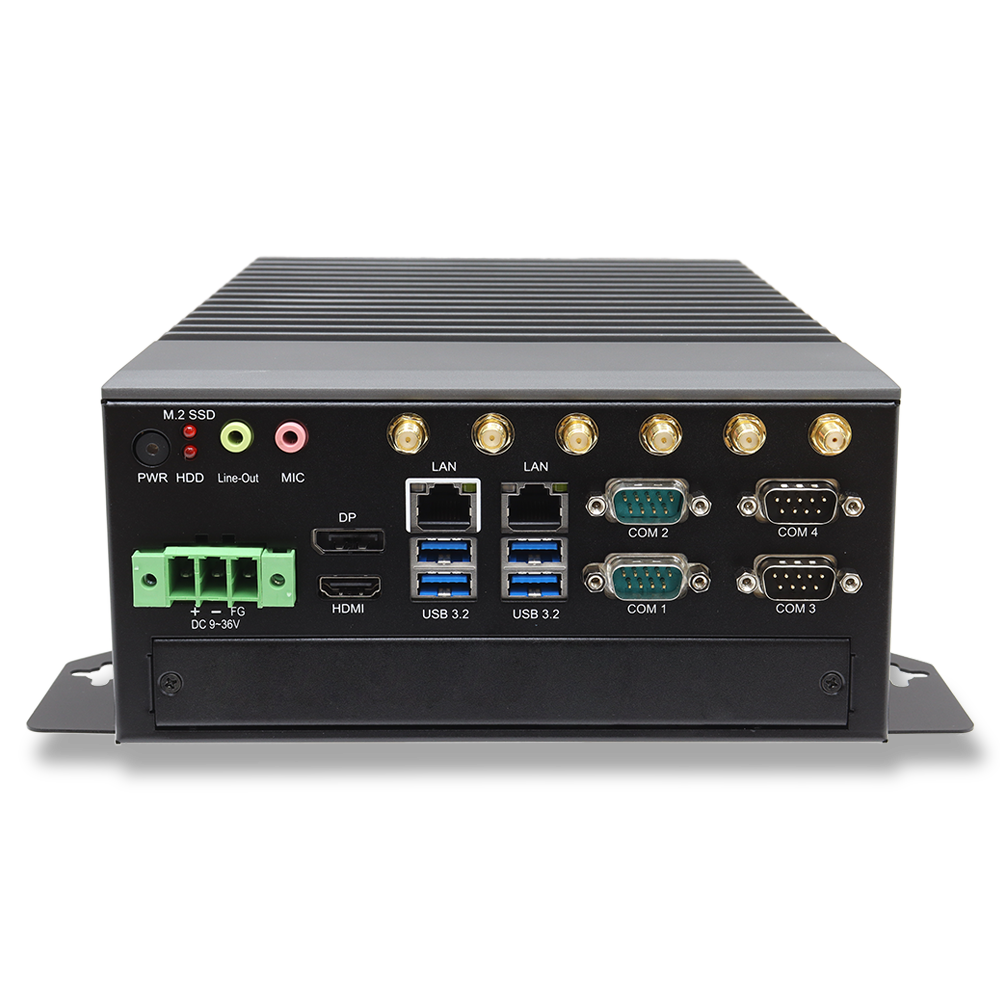

I/O

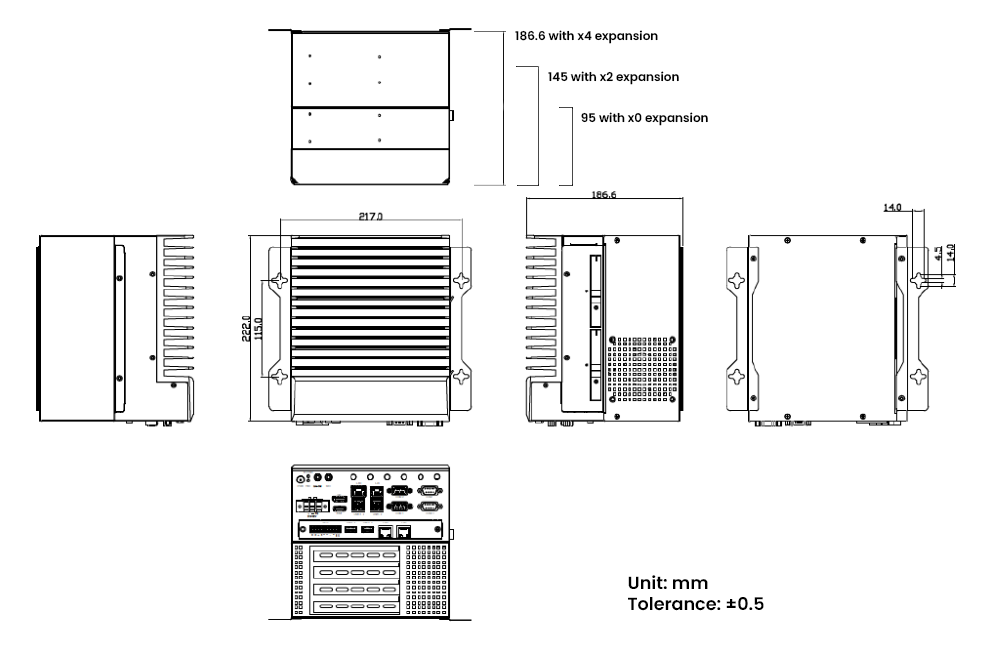

DIMENSIONS
