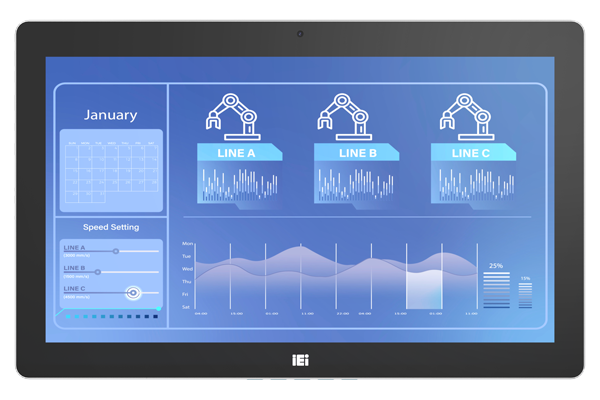

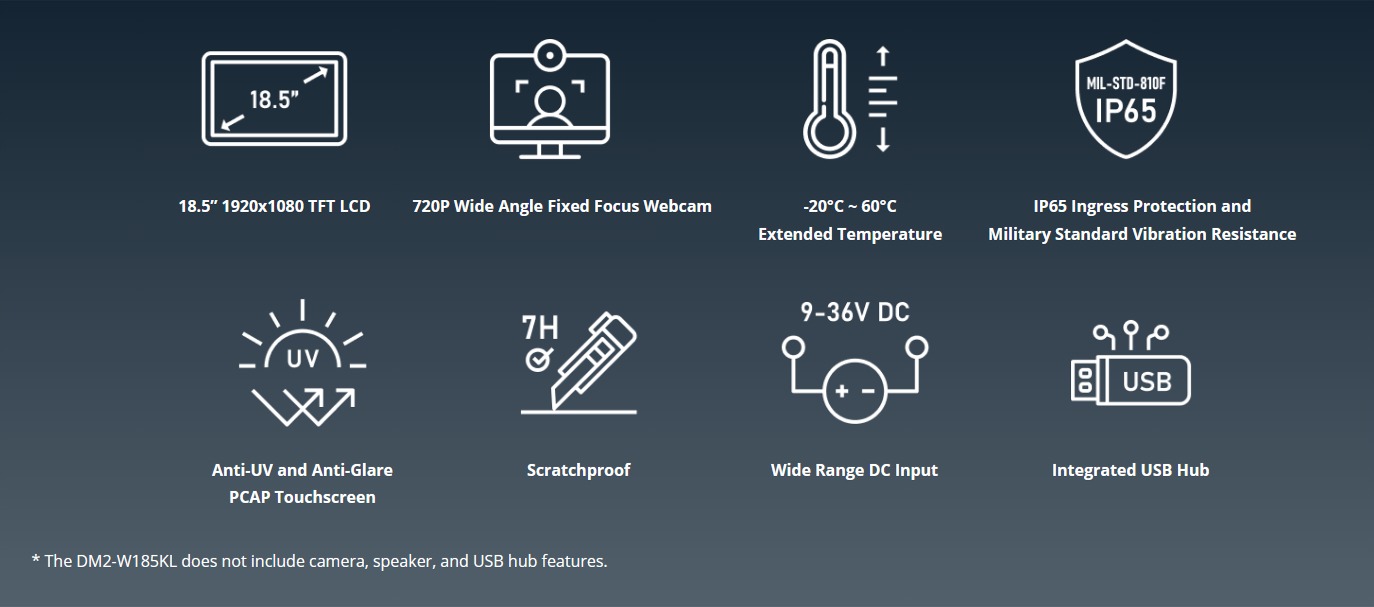

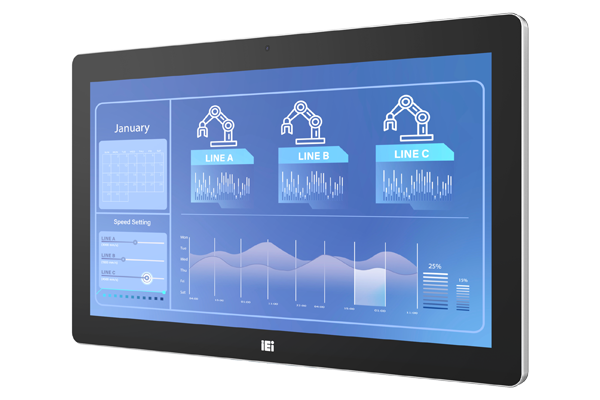

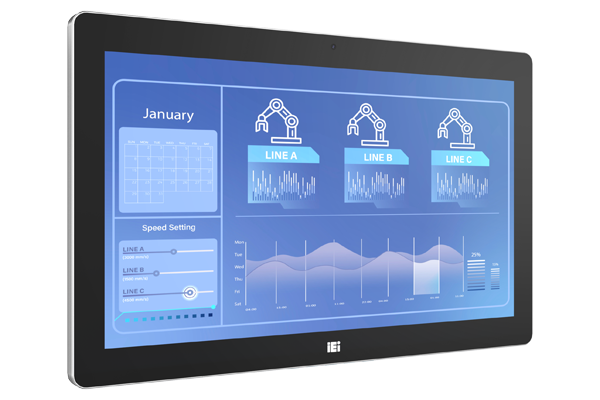

The DM2-W185K(L) is a high-performance 18.5″ industrial touch monitor meticulously engineered to boost productivity in demanding industrial environments. Featuring a full HD 1920×1080 resolution, this monitor delivers crystal-clear visuals, making it perfect for control tasks and industrial data visualization. Built to endure harsh conditions, it operates reliably within a wide temperature range of -20°C to 60°C and features an IP65-rated aluminum die-casting bezel for superior durability. CONTACT US today for a DM2-W185 quote.
SPECIFICATIONS
| Display | |
|---|---|
| LCD Size | 18.5” (16:9) |
| Brightness(cd/m2) | 350 |
| Max Resolution | 1920 x 1080 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF(hrs) | 50000 |
| I/O Interface | |

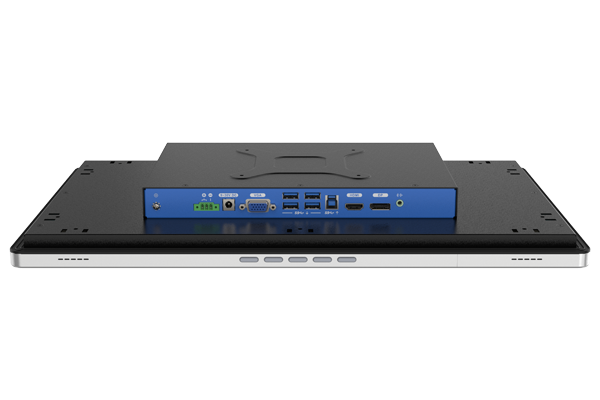

| I/O Ports | 1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
| Power | |
| Power adapter | 12V DC |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 10% to 95%@40°C (non-condensing) |
| Storage Temperature | -20°C ~ 70°C |
| IP Level | IP 65 compliant front panel |
| Physical Characteristics | |
| Color | Black + Silver |

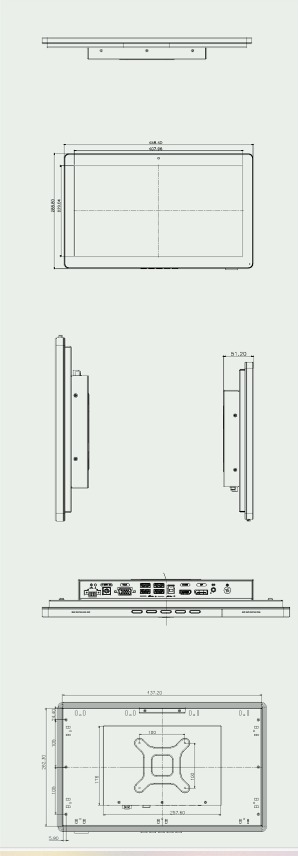

| Dimensions (LxWxH) (mm) | 458.40 x 288.80 x 50.50 |
| Cutout Dimensions | 438.20 x 262.80 |
| LCD | |
| LCD Color | 16.7M |
| Viewing Angle (H-V) | 170°/170° |
| Touch | |
| Touch Screen | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
| Touch Controller | ilitek |
ORDERING
| DM2-W185K-R10 | 18.5″ 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
|---|---|
| DM2-W185KL-R10 | 18.5″ 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
PACKAGE CONTENTS
| Package Content |
|
|---|
