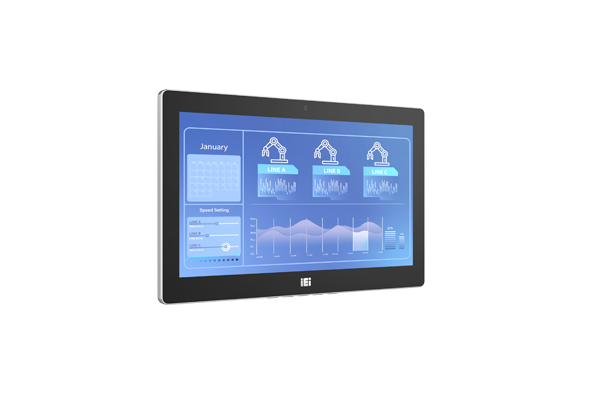

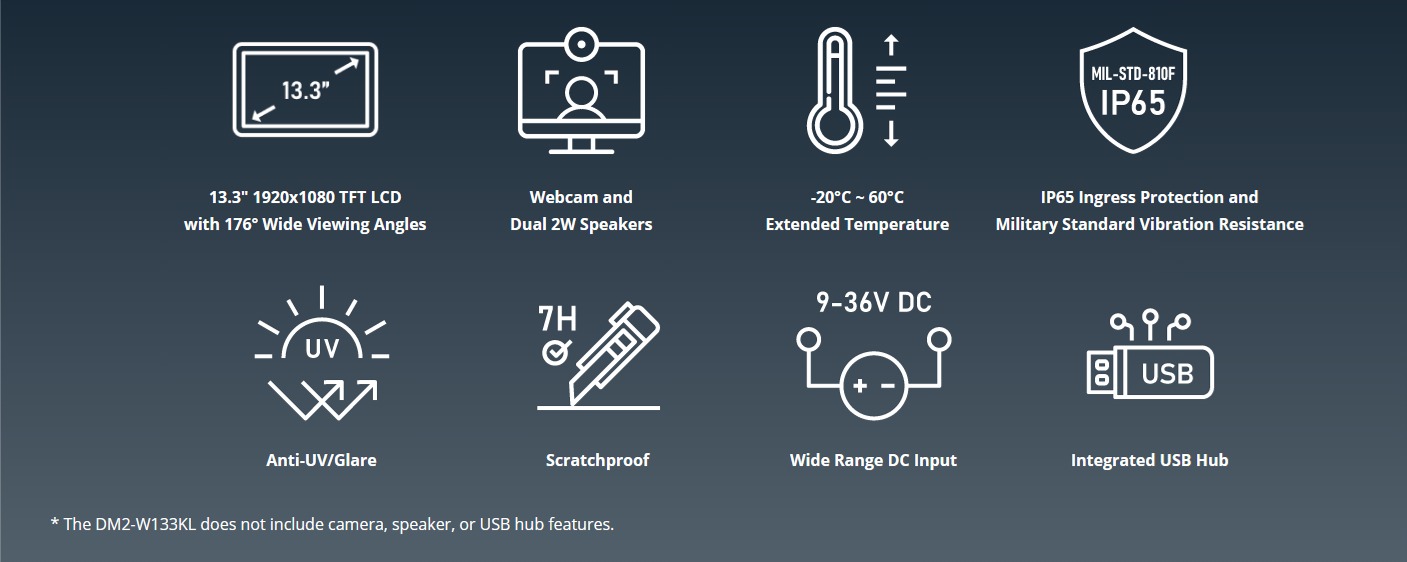

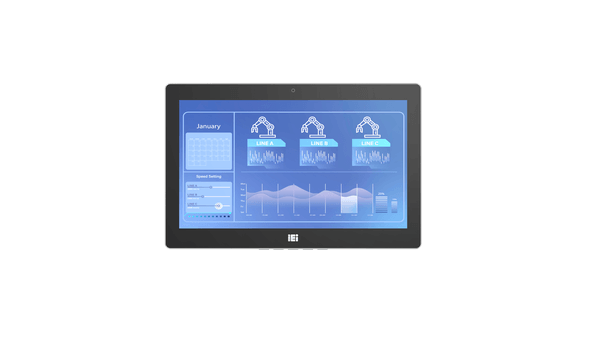

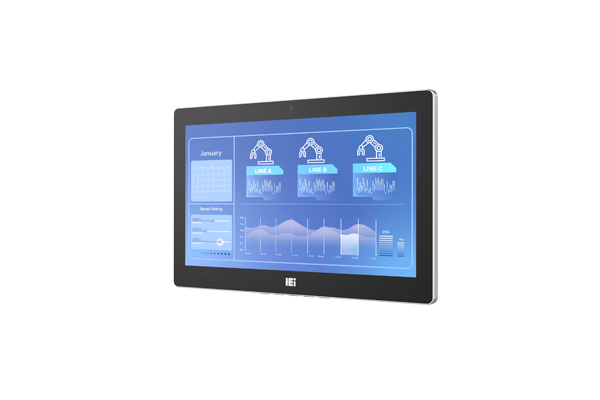

The DM2-W133K is a robust 13.3″ industrial monitor engineered to enhance productivity in industrial environments. Featuring a high-definition 1920×1080 resolution and 350 cd/ m² brightness, this IP65-rated monitor provides clear visuals that excel in detailed data monitoring and control tasks, even in challenging settings. Built to withstand extreme conditions, the DM2-W133K operates reliably in temperatures ranging from -20°C to 60°C. This versatile monitor also includes a built-in 720p wide-angle fixed-focus camera, dual front-facing speakers for clear audio output, and USB 3.2 Gen 1 ports for fast data transfer and connectivity. With its rugged design and advanced features, the DM2-W133K is the ideal choice for reliable and high-quality industrial solutions. CONTACT US today for a DM@-W133 quote.
SPECIFICATIONS
| Display | |
|---|---|
| LCD Size | 13.3” (16:9) |
| Brightness(cd/m2) | 350 |
| Max Resolution | 1920 x 1080 |
| Contrast Ratio | 800:1 |
| Backlight MTBF(hrs) | 30000 |
| I/O Interface | |

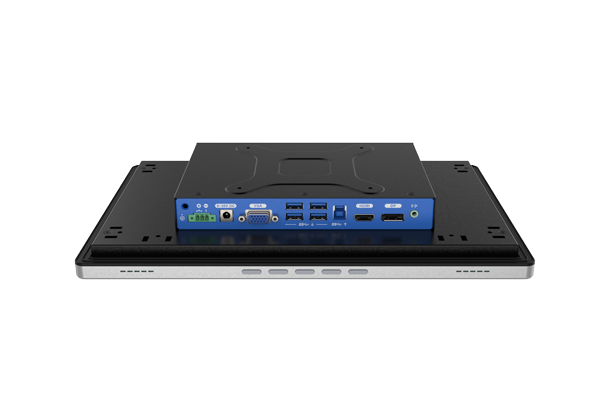

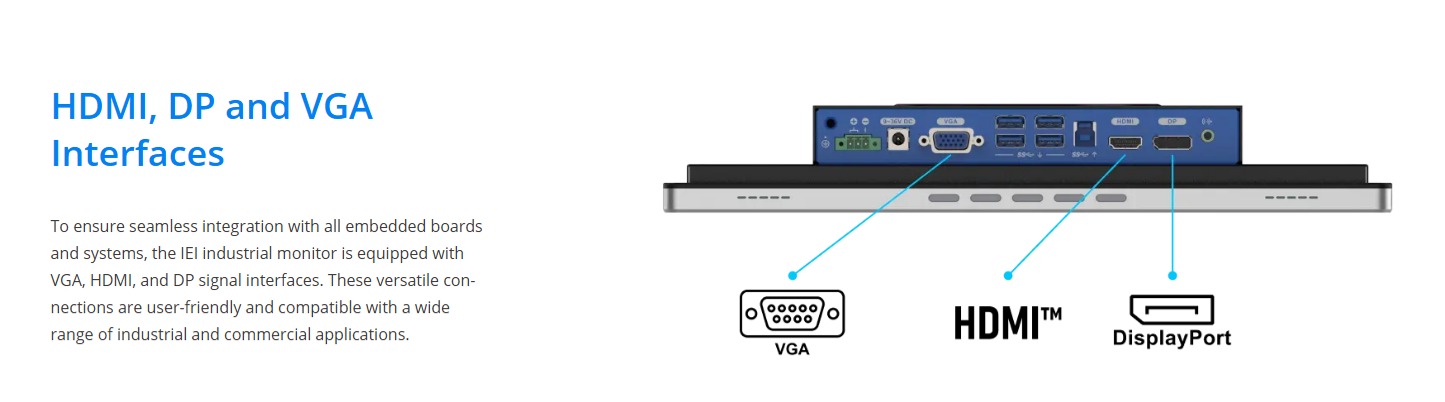

| I/O Ports | 1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
| Power | |
| Power adapter | 12V DC |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 10% to 95%@40°C (non-condensing) |
| Storage Temperature | -20°C ~ 70°C |
| IP Level | IP 65 compliant front panel |
| Physical Characteristics | |
| Color | Black + Silver |

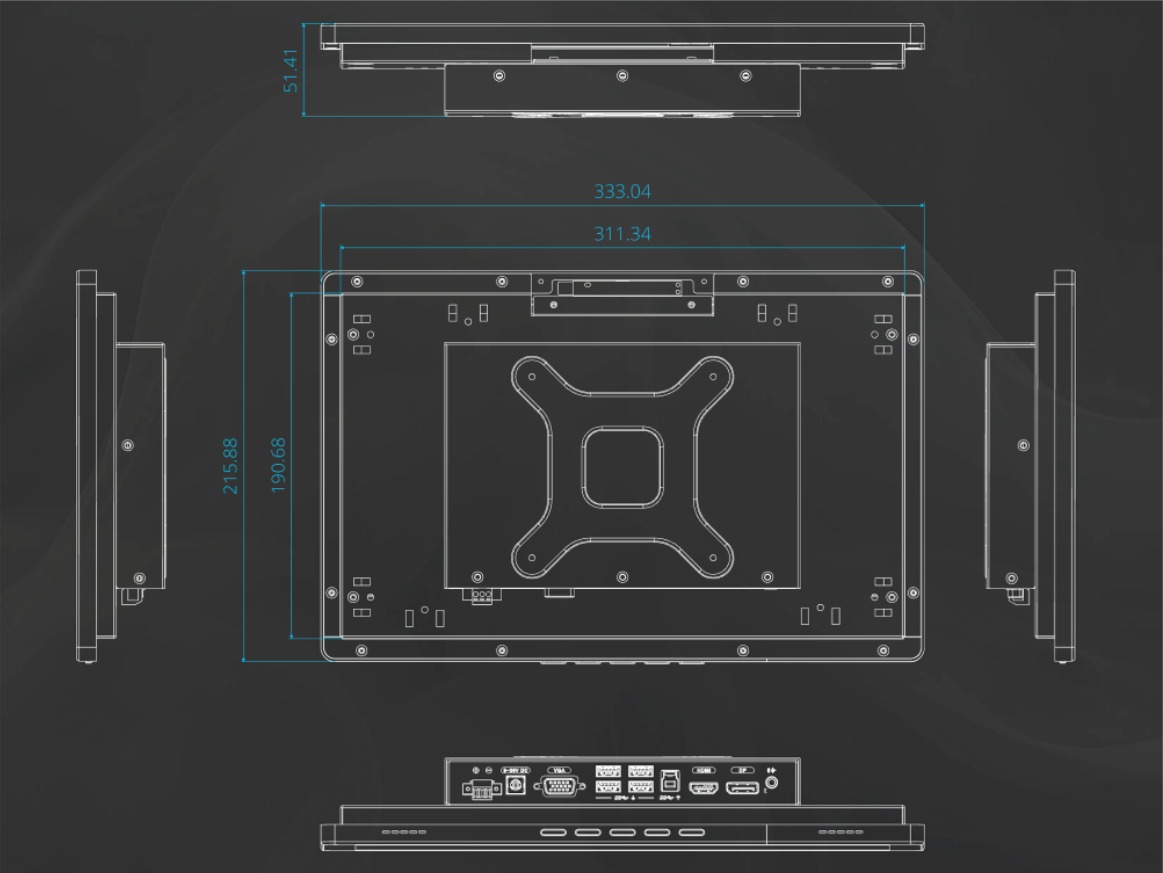

| Dimensions (LxWxH) (mm) | 333.04 x 215.88 x 51.41 |

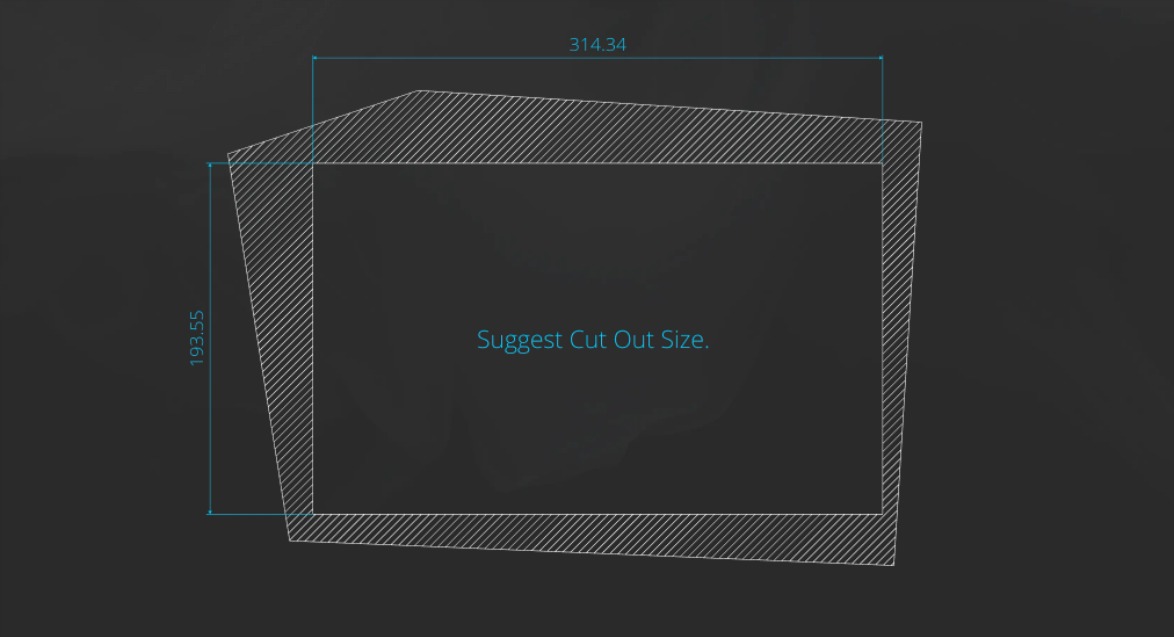

| Cutout Dimensions | 314.34 x193.55 |
| LCD | |
| LCD Color | 16.7M |
| Viewing Angle (H-V) | 176°/176° |
| Touch | |
| Touch Screen | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
| Touch Controller | ilitek |
ORDERING
| DM2-W133K-R10 | 13.3″ 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
|---|---|
| DM2-W133KL-R10 | 13.3″ 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
PACKAGE CONTENTS
| Package Content |
|
|---|
