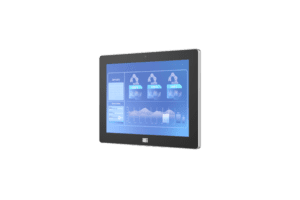

The DM2-W101 is engineered to excel in the toughest industrial environments, featuring an IP65-rated front panel, durable all-metal housing, and the ability to operate in extreme temperatures ranging from -20°C to 60°C. An integrated HD camera and dual front speakers enhance security and communication. With four USB 3.2 Gen 1 ports for expanded productivity and a user-friendly panel mount design, the DM2-W101 is more than just a display—it’s a comprehensive solution for demanding industrial operations. Contact Us today for DM2-W101 pricing.
SPECIFICATIONS
| Display | |
|---|---|
| LCD Size | 10.1” (16:10) |
| Brightness(cd/m2) | 400 |
| Max Resolution | 1280 x 800 |
| Contrast Ratio | 800:1 |
| Backlight MTBF(hrs) | 20000 |
| I/O Interface | |
| I/O Ports | 1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
| Power | |
| Input | 9V ~ 36V DC |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 10% to 95%@40°C (non-condensing) |
| Storage Temperature | -20°C ~ 60°C |
| IP Level | IP 65 compliant front panel |
| Physical Characteristics | |
| Color | Black |
| Dimensions (LxWxH) (mm) | 251 x 180.95 x 49.30 |
| Cutout Dimensions | 241.80 x 157.80 |
| LCD | |
| LCD Color | 16.7M |
| Viewing Angle (H-V) | 178°/178° |
| Touch | |
| Touch Screen | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
| Touch Controller | ilitek |
ORDERING
| DM2-W101G-R10 | 10.1″ 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
|---|---|
| DM2-W101GL-R10 | 10.1″ 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
