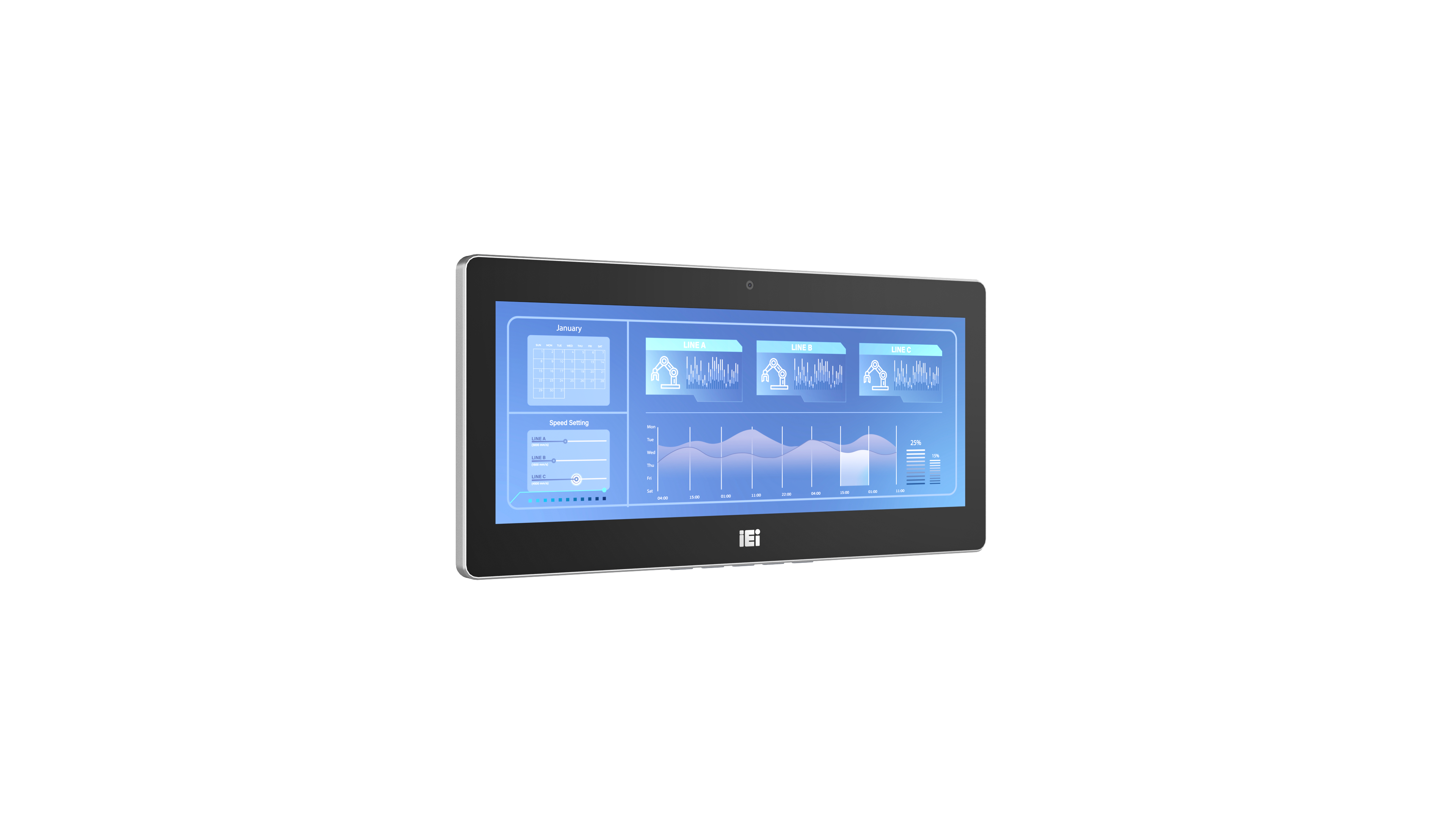

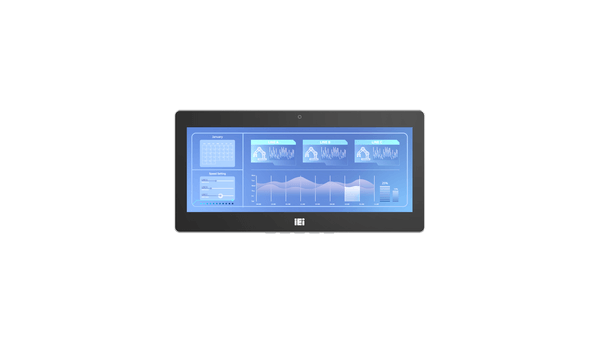

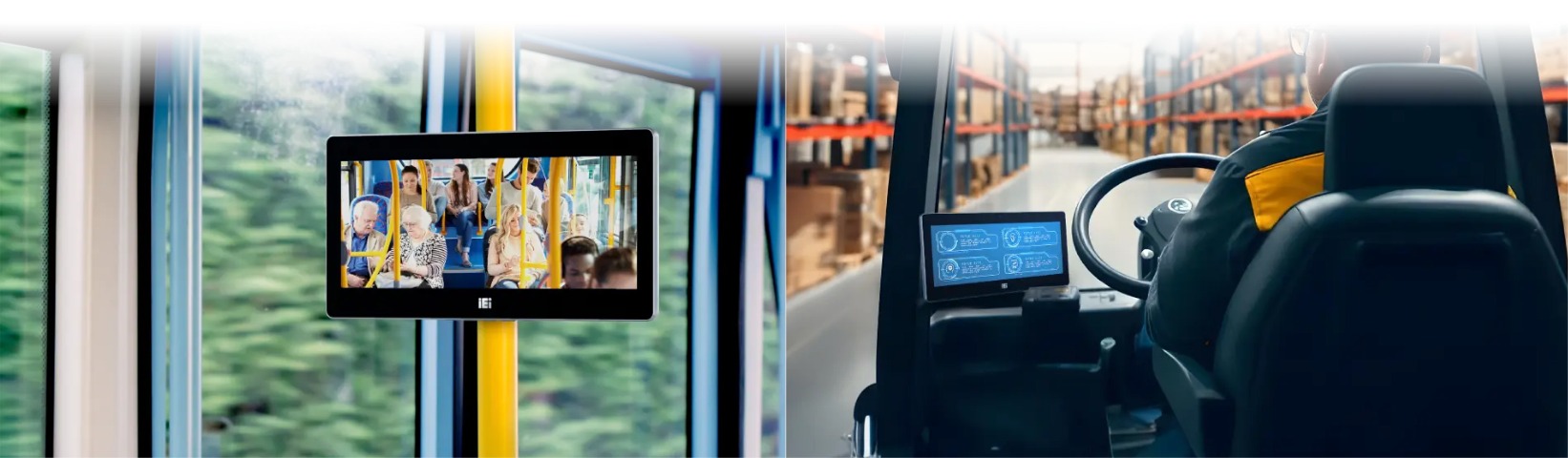

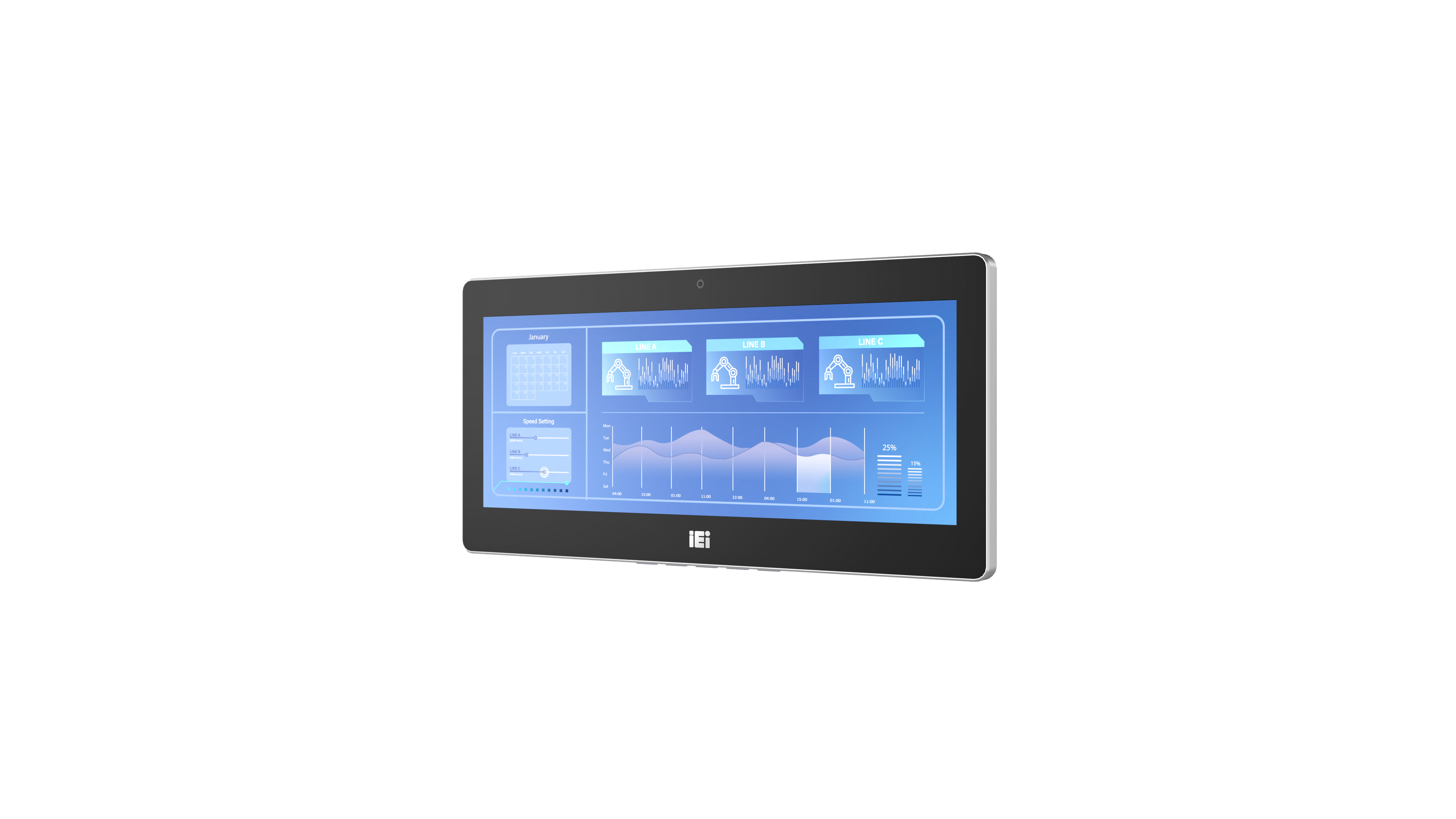

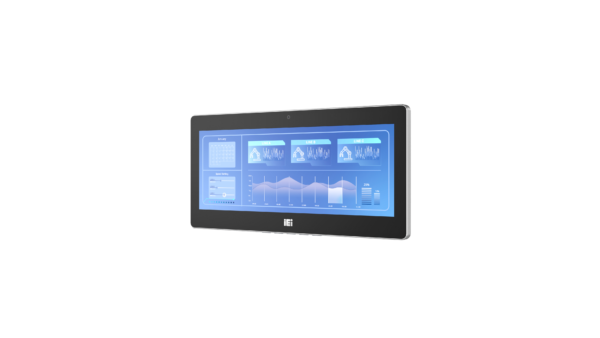

The DM2-UW123 is a 12.3″ IP65 industrial monitor that redefines workspace efficiency with its ultra-wide 1920×720 resolution and 850 cd/m² brightness, providing unparalleled clarity even in high-light conditions. Its expansive aspect ratio eliminates the need for multiple monitors, making it a game-changer for logistics control centers, public transportation hubs, and industrial operations. Engineered for durability, it thrives in extreme environments with IP65 front panel protection, and an extended operating temperature range from -20°C to 60°C. With a built-in HD camera, dual front-facing speakers, and USB 3.2 Gen 1 ports, it’s not just a monitor—it’s an all-in-one industrial command center. CONTACT US today for DM2-UW123 pricing.
SPECIFICATIONS
Display |
|
|---|---|
| LCD Size | 12.3” (8:3) |
| Brightness(cd/m2) | 850 |
| Max Resolution | 1920 x 720 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF(hrs) | 30000 |
I/O Interface |
|

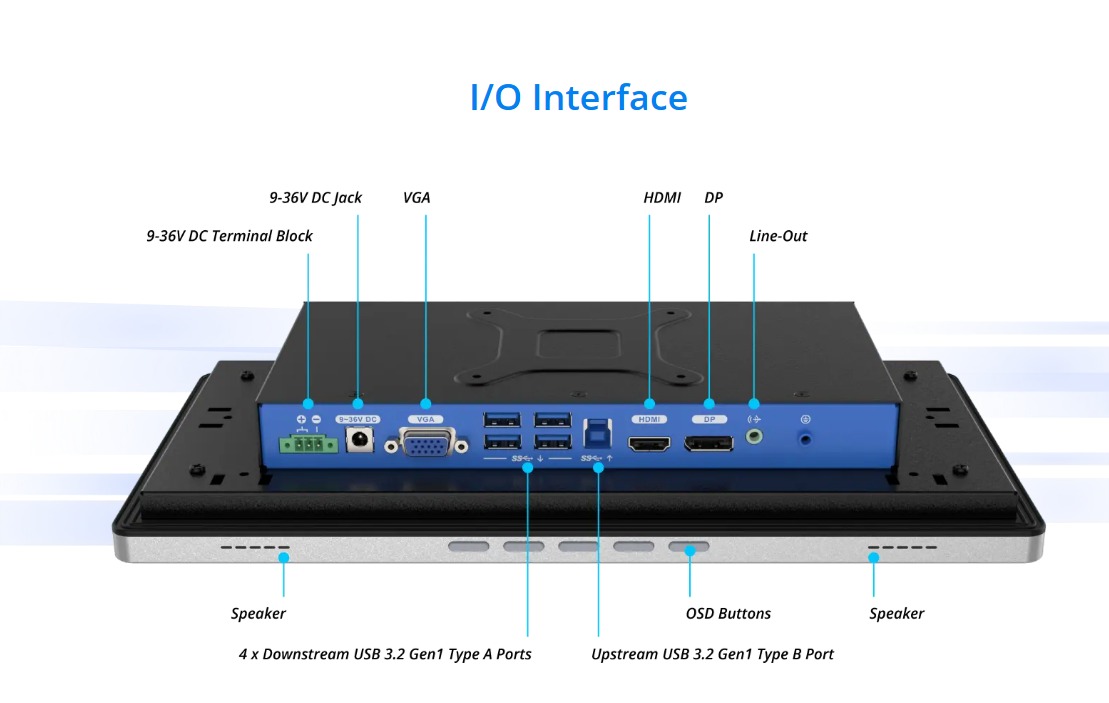

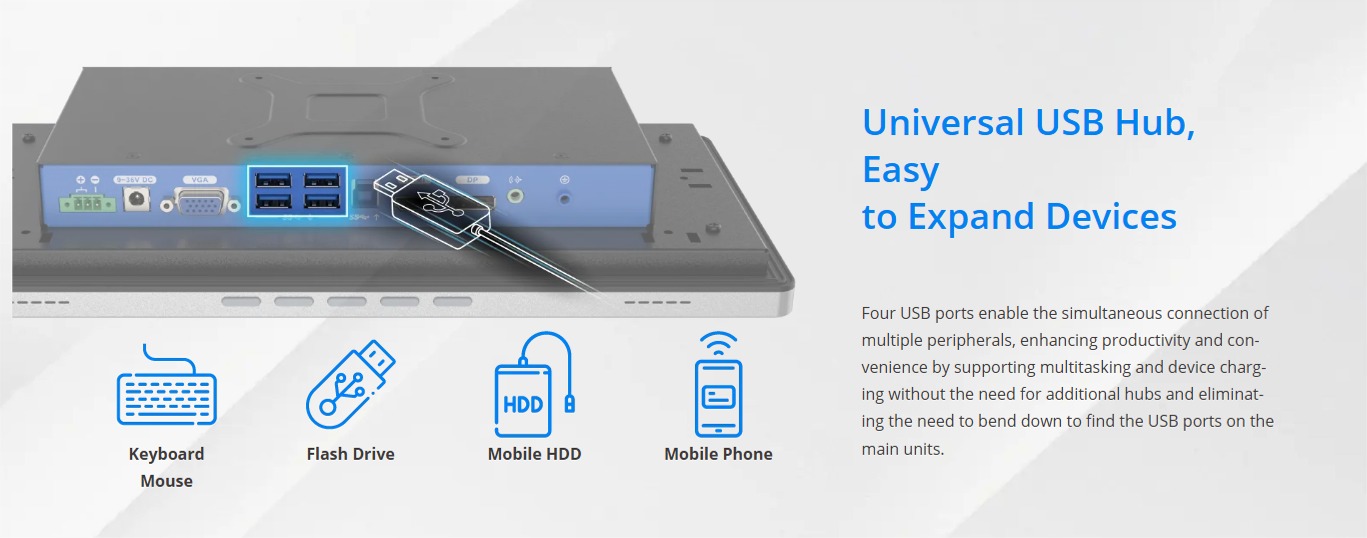

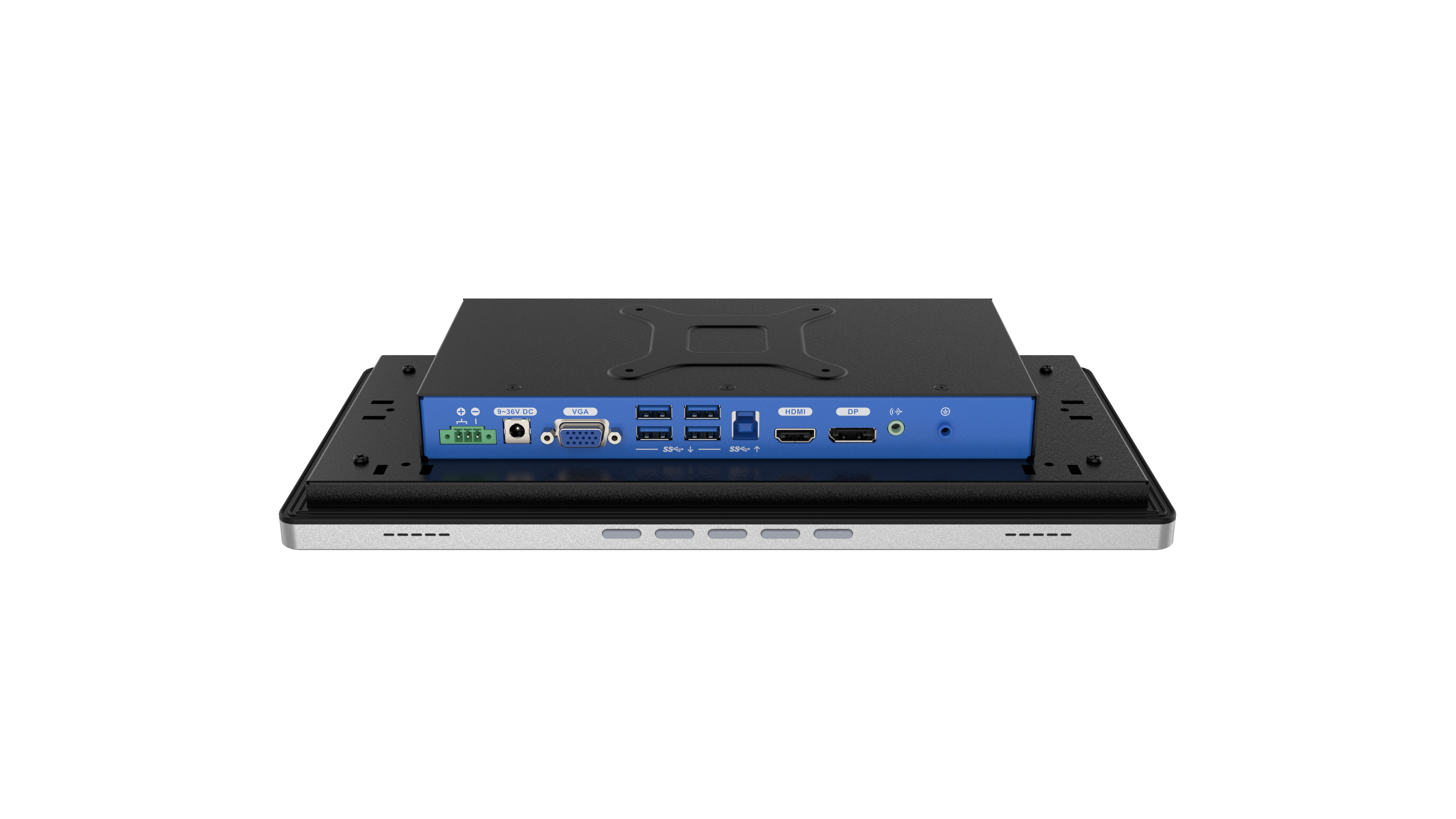

| I/O Ports | 1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
Power |
|
| Power adapter | 12V DC |
Environment |
|
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 10% to 95%@40°C (non-condensing) |
| Storage Temperature | -20°C ~ 70°C |
| IP Level | IP 65 compliant front panel |
Physical Characteristics |
|
| Color | Black + Silver |

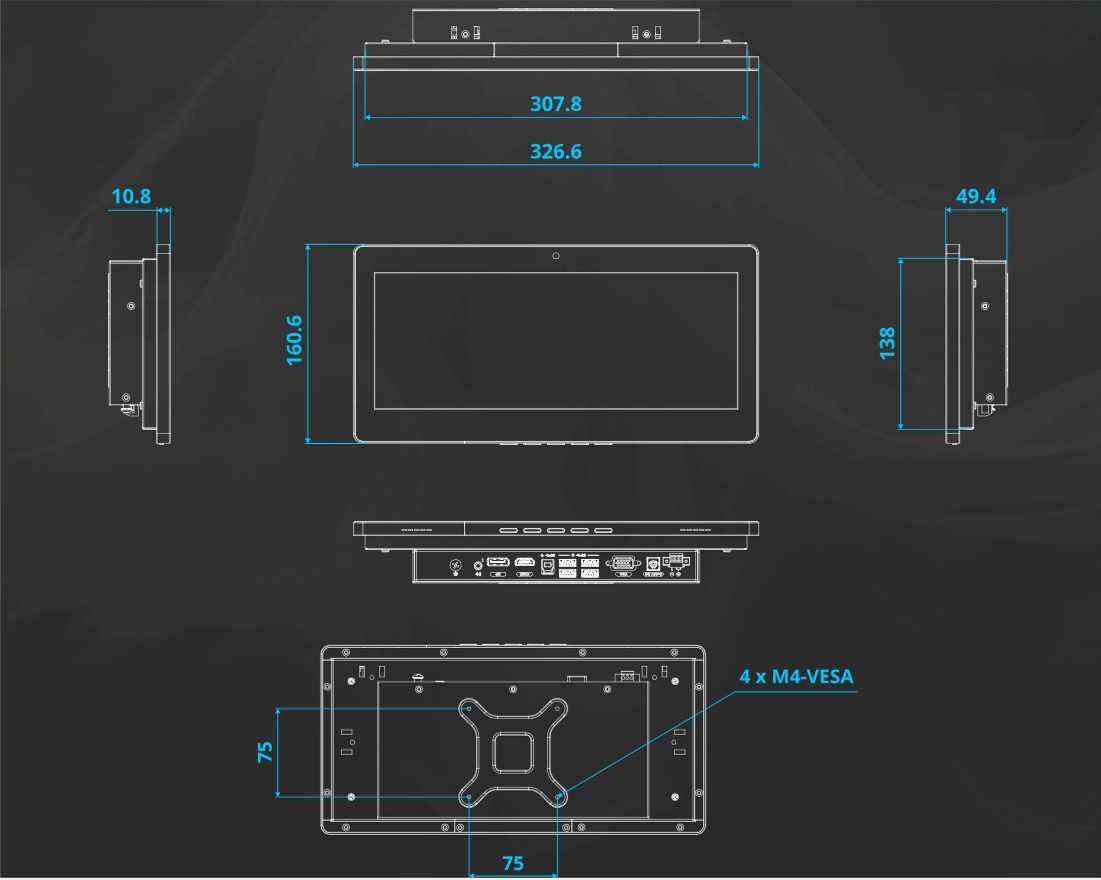

| Dimensions (LxWxH) (mm) | 326.60 x 160.60 x 49.40 |
| Cutout Dimensions | 310.80 x 141.00 |
LCD |
|
| LCD Color | 16.7M |
| Viewing Angle (H-V) | 170°/170° |
Touch |
|

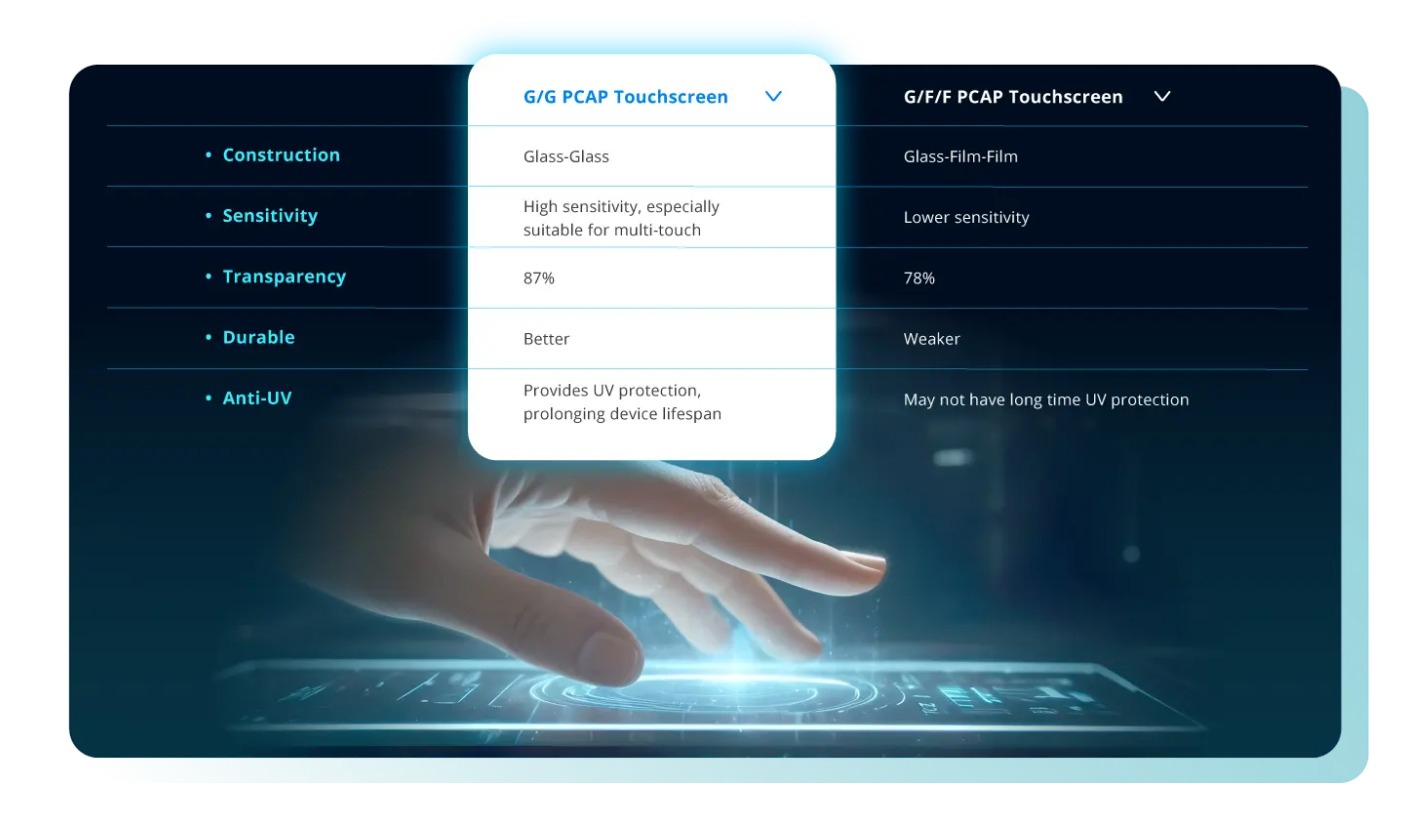

| Touch Screen | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
| Touch Controller | ilitek |
ORDERING
| DM2-UW123J-R10 | 12.3″ 850 cd/m² 1920 x 720 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
|---|---|
| DM2-UW123JL-R10 | 12.3″ 850 cd/m² 1920 x 720 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |
