The DM2-104E is a 10.4″ IP65-rated industrial monitor that delivers exceptional performance and reliability in challenging environments. Featuring a high-definition 1024 x 768 resolution, 350 cd/m² brightness, and seamless operation in extreme temperatures from -20°C to 60°C, the DM2-104E ensures crystal-clear visuals and durable functionality.
Advanced features include a built-in 720p wide-angle camera, dual speakers, and USB 3.2 Gen 1 ports for efficient connectivity. Its versatility makes it ideal for industrial control, CNC and laser equipment, production monitoring, as well as commercial uses such as digital signage, kiosks, and vending machines.
CONTACT US today for a DM2-104 quote.
SPECIFICATIONS
| Display | |
|---|---|
| LCD Size | 10.4” (4:3) |
| Brightness(cd/m2) | 350 |
| Max Resolution | 1024 x 768 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF(hrs) | 50000 |
| I/O Interface | |
| I/O Ports | 1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block |
| Power | |
| Power adapter | 12V DC |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 10% to 95%@40°C (non-condensing) |
| Storage Temperature | -20°C ~ 70°C |
| IP Level | IP 65 compliant front panel |
| Physical Characteristics | |
| Color | Black + Silver |
| Dimensions (LxWxH) (mm) | 256.60 x 208.20 x 49.30 |
| Cutout Dimensions | 247.40 x 185.00 |
| LCD | |
| LCD Color | 16.7M |
| Viewing Angle (H-V) | 176°/176° |
| Touch | |
| Touch Screen | 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface) |
| Touch Controller | ilitek |
ORDERING
| DM2-104E-R10 | 10.4″ 350 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10 |
|---|---|
| DM2-104EL-R10 | 10.4″ 350 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10 |

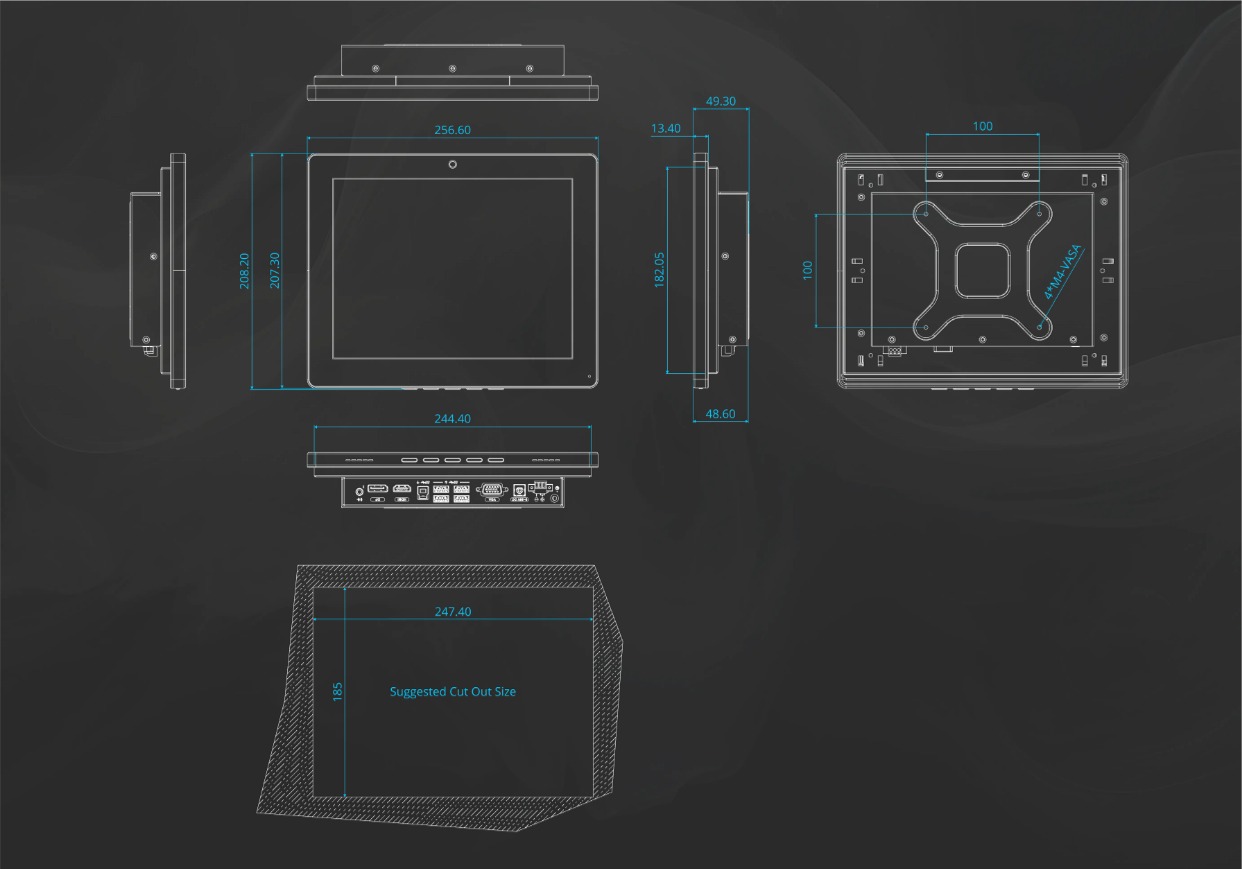

DIMENSIONS
