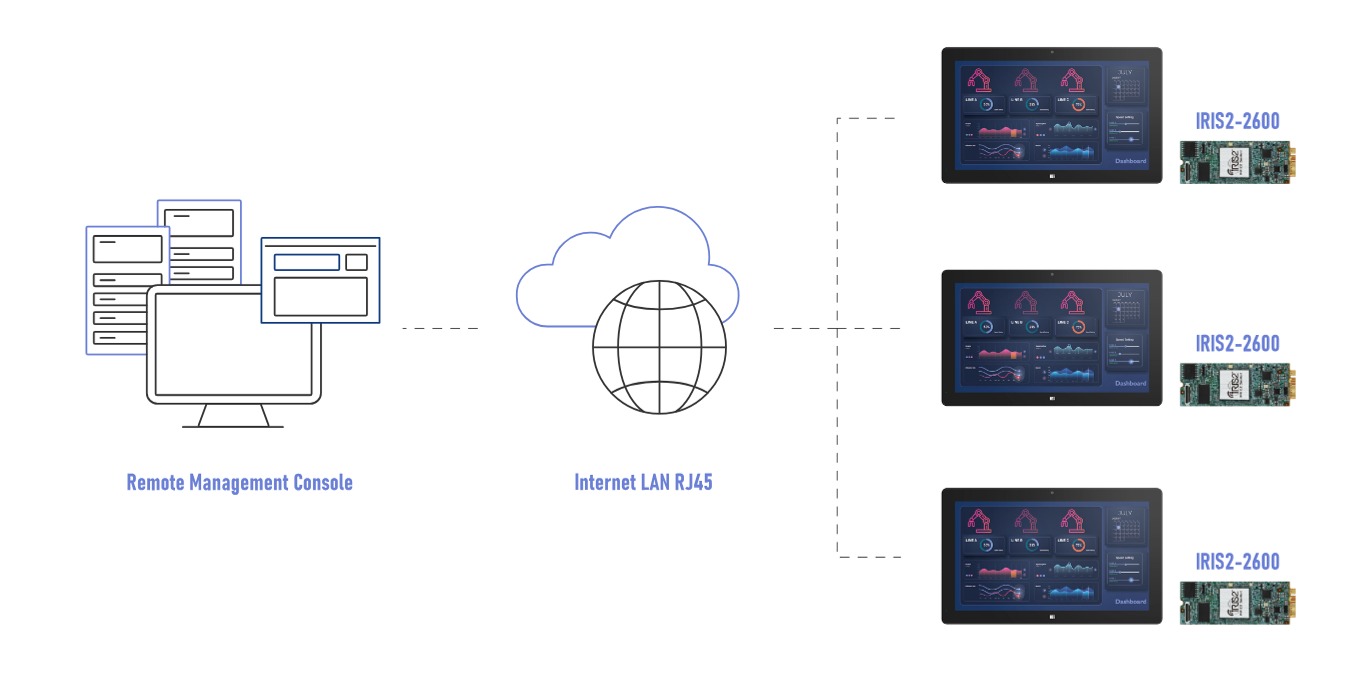

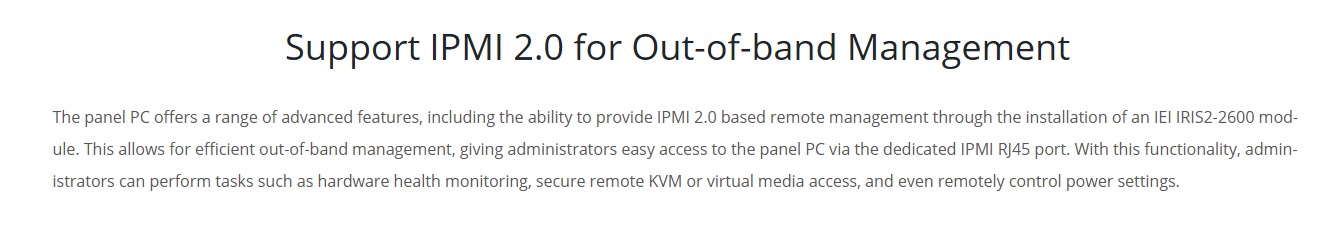

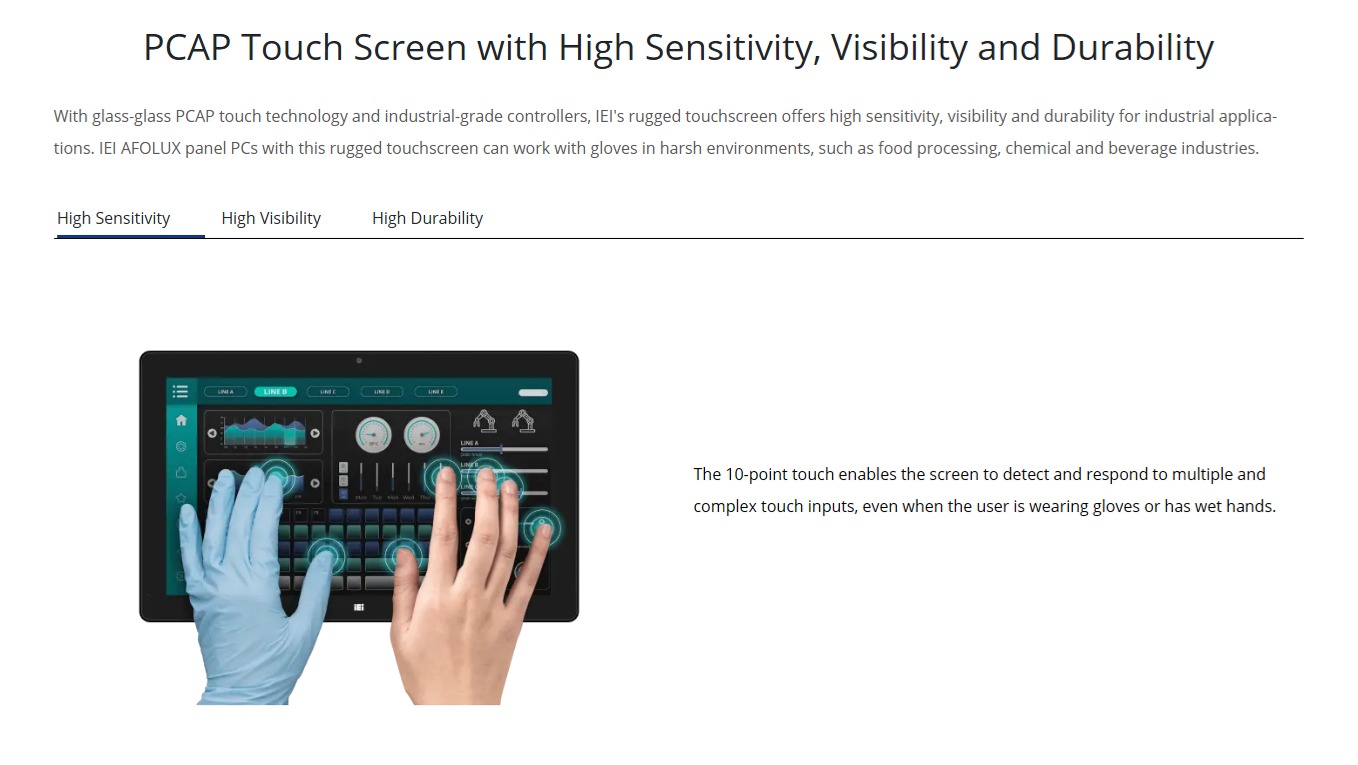

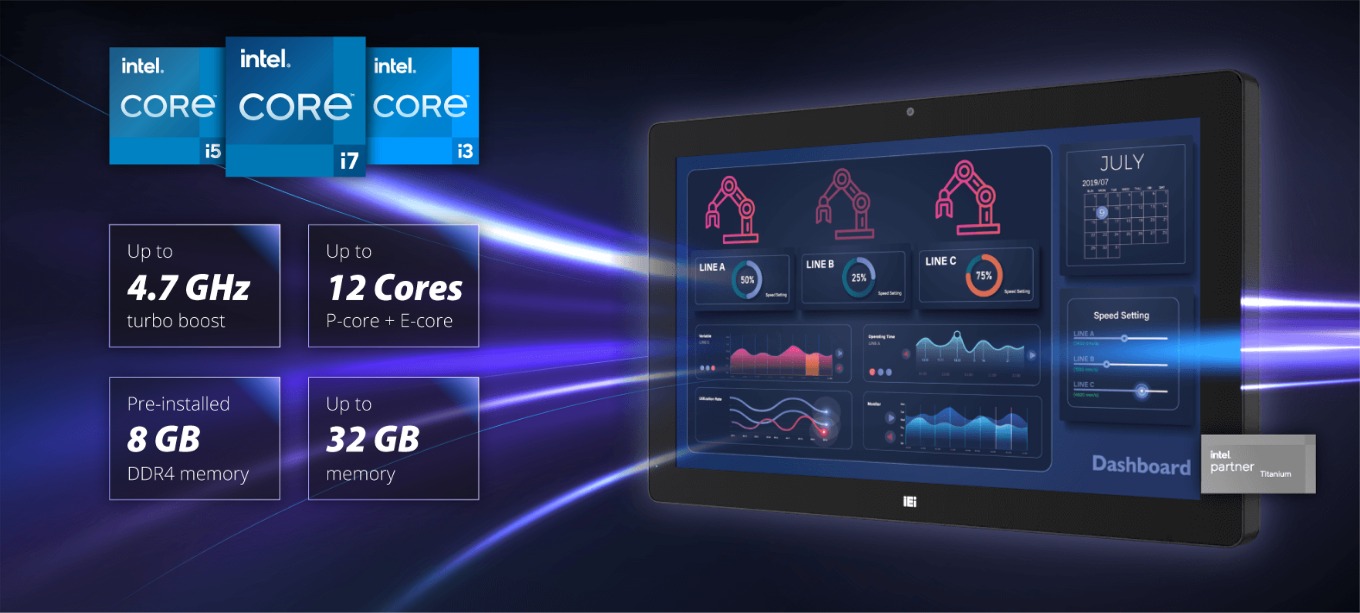

The AFL3-ADLP, a remarkable addition to the AFOLUX series, is a fanless panel PC that boasts an appealing design tailored for the light industrial markets. Equipped with a powerful 12th Gen Intel Core processor, this panel PC ensures seamless performance even in demanding applications. With 8GB DDR4 memory, expandable up to 32GB, it offers ample space for multitasking and data storage. The AFL3-ADLP also features an optimized PCAP touchscreen for enhanced user experience and a wide range of I/O ports for connectivity convenience. Its inclusion of Wi-Fi 6E and Bluetooth 5.2 guarantees fast and reliable wireless communication, while the dual 2.5G LAN enables efficient data transfer. Additionally, the AFL3-ADLP series supports IRIS2 modules, providing an IPMI 2.0 solution for efficient remote management that ensures optimal performance and minimizing downtime. CONTACT US today for an AFL3-W19C-ADLP quote.

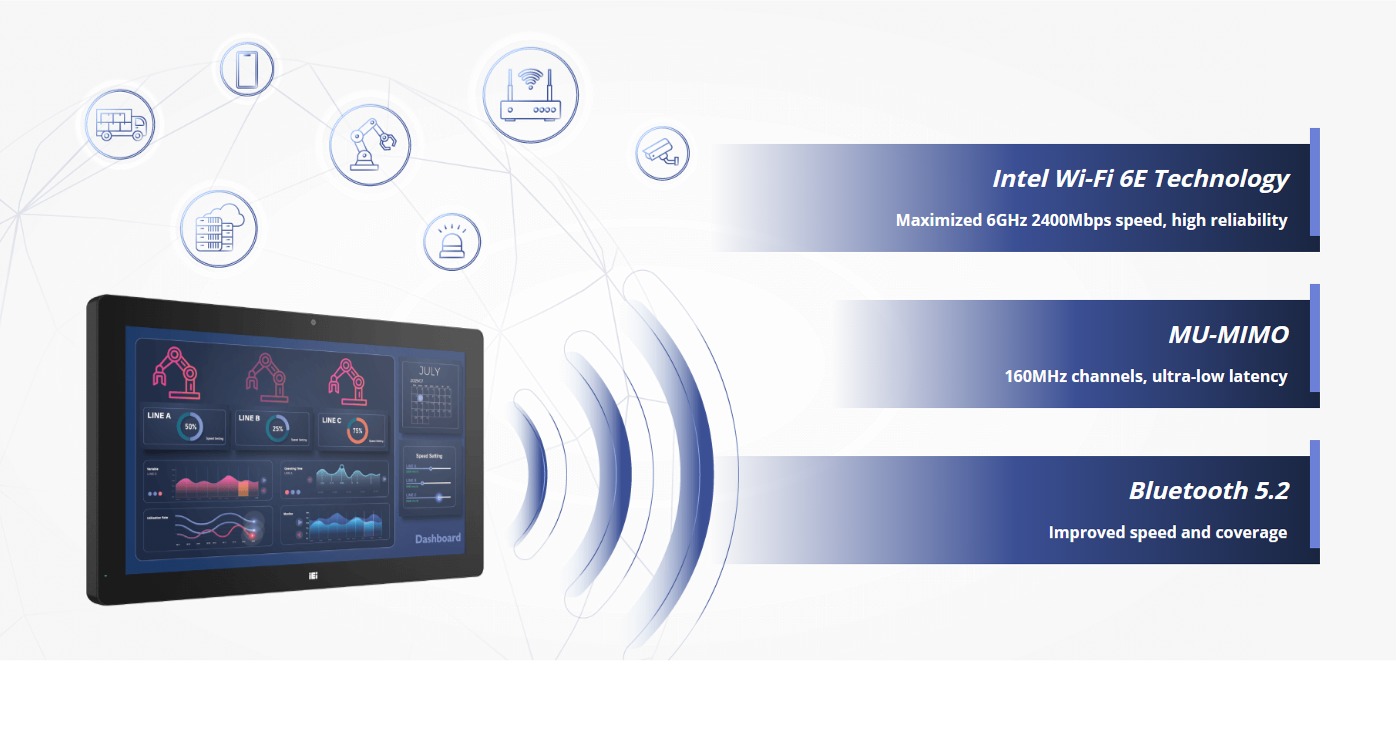

IoT Deployment Made Easy with Wireless Network Capability
The Internet of Things (IoT) encompasses various applications that have different connectivity requirements, necessitating both high bandwidth and low power and latency capabilities. The expansion of Wi-Fi into the 6 GHz band is crucial for supporting IoT devices in industrial settings worldwide, providing the necessary additional spectrum for Wi-Fi usage. The AFL3-ADLP industrial panel PC is equipped with an Intel® AX210 wireless module, featuring the advanced Wi-Fi 6E and Bluetooth 5.2 technologies, allowing businesses to work smarter, optimize processes, and unlock new possibilities for growth and innovation.
SPECIFICATIONS
System |
|
|---|---|
| CPU | 12/13th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P/Raptor Lake-P) |
| Memory Ext. | Two 260-pin 3200 MHz dual-Channel DDR4 SO-DIMM (8G Pre-installed) (max. 64GB) |
| Storage | 1 x 2.5” SATA HDD bay |
Communication |
|
| Wireless | IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key) |
I/O Interface |
|
| Ethernet | LAN1: Intel® I226 LM (support Intel AMT) LAN2: Intel® I226V |
| Audio | AMP 3W + 3W (internal speaker) |

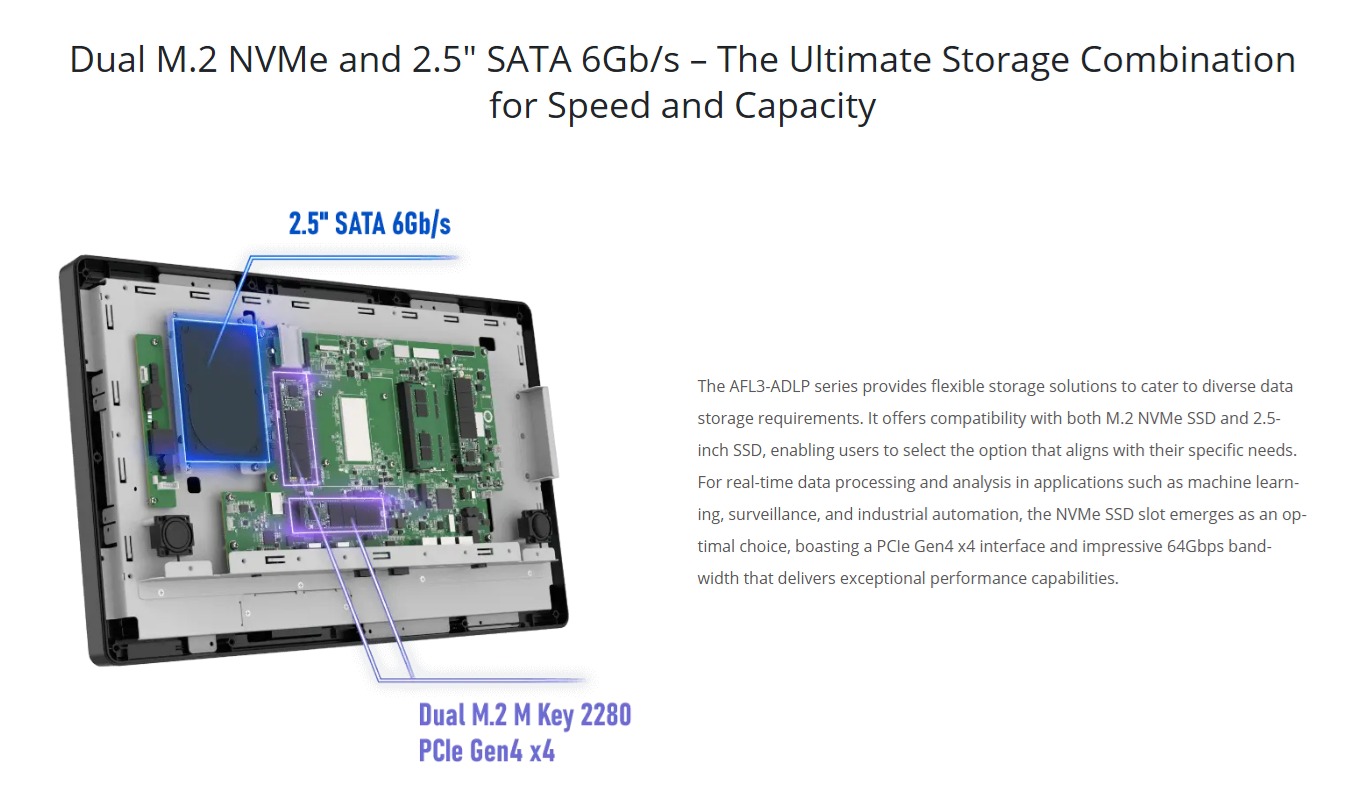

| Expansion | 2 x M.2 2280 M-key (PCle Gen 4 x4) 1 x M.2 B KEY (PCIe x1 or SATA) for IPMI 1 x M.2 2230 E Key Slot support Vpro (PCIe 3.0 x1 + USB2.0 x1 + CNVI) |
| Audio Codec | ALC888S |
Power |
|
| Power Supply | 12V DC |
| Environment | |
| Operating Temperature | 0°C ~ 50°C (50°C @90RH, ambient with air flow) |
| Safety & EMC | CE, FCC (Class A) , UKCA |
| Humidity | 10% ~ 90% (non-condensing) |
| Storage Temperature | -20ºC ~ 60ºC |
| IP Level | IP 64 compliant front panel |
Physical Characteristics |
|
| Color | Black |
| Mounting | VESA 75 /100mm |
| Construction Front Panel | PC + ABS Plastic |
LCD |
|
| Size | 18.5” |
| Resolution | 1920 x 1080 (16:9) |
| Brightness (cd/m2) | 350 cd/m² |
| Contrast Ratio | 1200 : 1 |
| Viewing Angle (H-V) | 170°/170° |
| Backlight MTBF | 50000 hours |
Touch |
|
| Touch Screen | PCAP with USB interface (anti-UV/AR coating) |
| Touch Controller | EXC3160 |

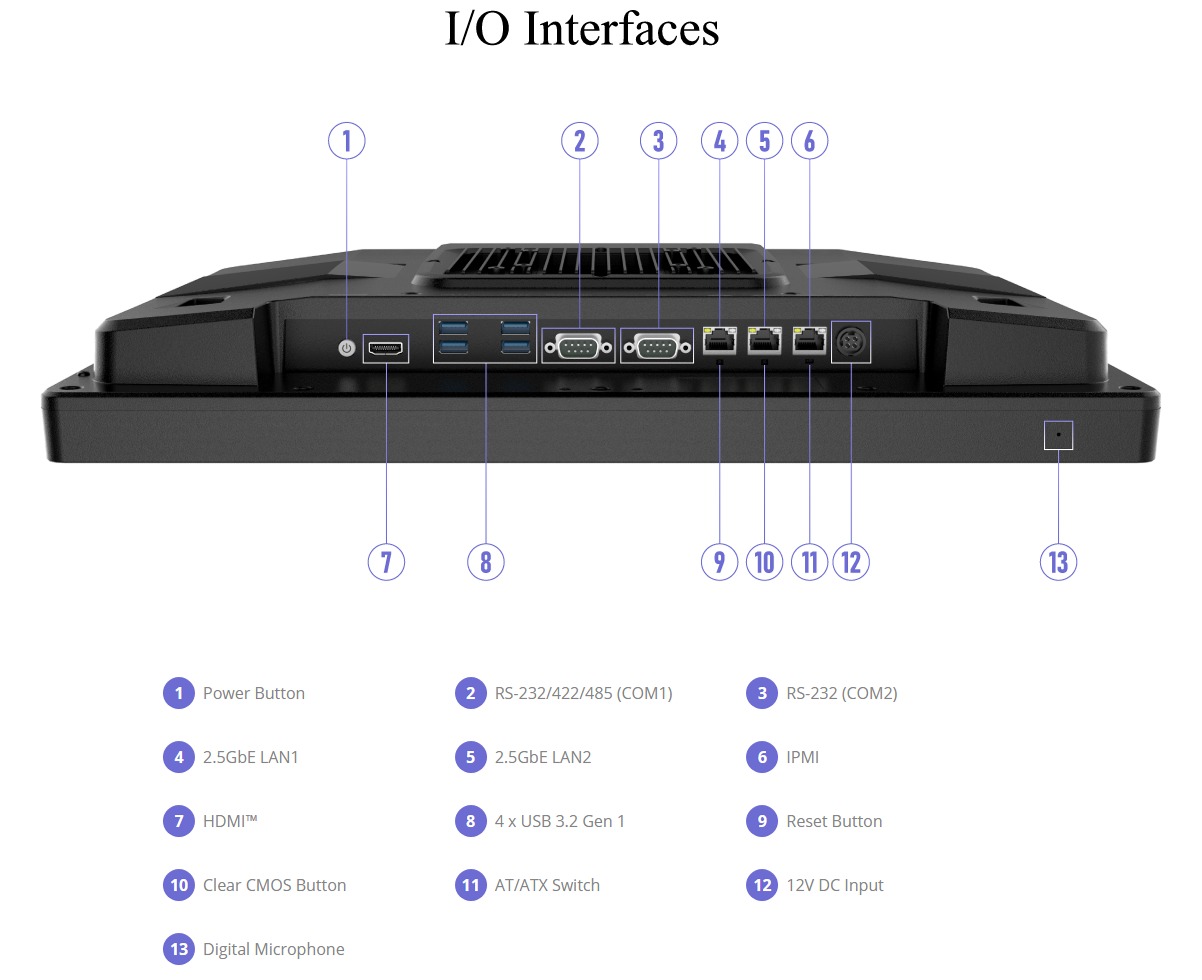

I/O Interface |
|
| I/O Interface | 1 x RS-232 (by DB9) |
| 1 x RS-232/422/485 (by DB9) | |
| 4 x USB 3.2 Gen1x1 (Type-A (5Gb/s)) | |
| 1 x HDMI™ (2.0 (up to 3840*2160 @60Hz)) | |
| 2 x LAN (Intel® I226V 2.5GbE controller) | |
| 1 x Reset Button | |
| 1 x AT/ATX switch | |
| 1 x Clear CMOS Button | |
ORDERING
| AFL3-W19C-ADLP-Ri7E/8G-R11 | Wide 18.5″ 350cd/m² 1920×1080 Panel PC with 13th Generation Intel® Core™ i7-1370PE on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS, R11 |
|---|---|
| AFL3-W19C-ADLP-Ri5E/8G-R11 | Wide 18.5″ 350cd/m² 1920×1080 Panel PC with 13th Generation Intel® Core™ i5-1340PE on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS, R11 |
| AFL3-W19C-ADLP-Ri3E/8G-R11 | Wide 18.5″ 350cd/m² 1920×1080 Panel PC with 13th Generation Intel® Core™ i3-1320PE on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS, R11 |
PACKAGE CONTENTS
| Package Content |
|
|---|
