The ADV156PF-6 features a bright 15.6″ Widescreen (16:9) LCD with built-in digital video player. Use the ADV156PF-6 to play your advertising message right where your customers will be able to see it. The ADV156PF-6 supports AVI full motion video, as well as JPEG still images with MP3 audio. This capability allows you to present a professional and eye catching advertising, informational, or instructive message to your audience.
OPERATION MODES
The ADV156PF-6 (and ADV156PF-6X Open Frame Module) supports 3 modes of operation:
1. Looping
The ADV156PF-6 can loop a single video or series of videos/images continuously.
2. Push Button Start

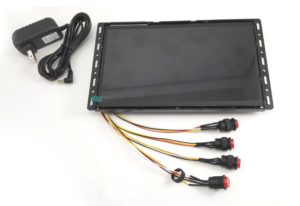

The ADV156PF-6 can be configured with 1 to 4 push button switches (included). The ADV156PF-6 starts in the OFF mode. When a button is pressed the video corresponding to that push button is played. When the video has played through once, the ADV156PF-6 will turn OFF until another program selection push button is pressed.
3. Combination Looping & Push Button
The ADV156PF-6 can loop a Main video that can be used, for example, to instruct the viewer to select from 1 to 4 alternate videos by pressing the corresponding push button. When a push button is pressed, the corresponding video will play through once, then the ADV156PF-6 will resume looping the Main video.
MOUNTING
The ADV156PF-6 can be easily mounted directly into your cabinetry or display using the mounting holes on the back of the unit. The ADV156PF-6 can also be mounted to a user provided industry standard VESA mount using the VESA 75mm mounting holes on the back of the ADV156PF-6.
The ADV156PF-6 also comes with a removable backstand for shelf or counter top use.
The slim design of the ADV156PF-6 minimizes the use of valuable display space, while the bright display is large enough to catch the eye of any passer-by.
The ADV156PF-6 offers a very cost effective way to double or even triple your sales. The built-in video player eliminates the reliability problems associated with DVD players which have moving parts that wear out. And because the ADV156PF-6 is self contained, there is no need to find a place to put a separate player. To change your message, simply load your video onto a USB Flash drive, plug the drive with your new file into the USB port on the ADV156PF-6, and the ADV156PF-6 will automatically download the video file into its 512MB internal flash memory for immediate use. Then remove your USB Flash drive and move on to the next unit. Contact us today for an ADV156PF-6 quotation.
SPECIFICATIONS
Screen Size – 15.6″ Widescreen (16:9)
Brightness – 250 NIT
Supported Video Formats – AVI, JPEG/MP3
Power Source – AC Power Adapter
Supported Music/Audio Formats – MP3 for Audio, JPEG for Photos
Rear Controls – None
Audio Output – Built-in Stereo Speakers
Viewing Angle (R/L/T/B) – TBD
Dimensions – Overall Width: 16.8″, Height: 10″, Overall Depth: 1.25″
Mounting – VESA 75mm
Operating Temperature – 0° ~ 45°C
Storage Temperature – -20° ~ 70°C
Memory – Built-in 512MB Flash Memory (loaded via USB port) (Max. user file size: 496MB)
Weight – TBD
Integrated Flash Memory Player Built In. Continuous loop operation.
ORDERING
ADV156PF-6 – 15.6″ Widescreen POP Video Player for Looping or 1-4 Program Selections by Push Button
Includes: 512MB built-in flash memory, USB port for video loading, AC adapter, removable shelf back-stand, remote control.
ADV156PF-6X – 15.6″ Widescreen POP Video Player Open Frame OEM Module for Looping or 1-4 Program Selections by Push Button
Includes: 512MB built-in flash memory, USB port for video loading, AC adapter, removable shelf back-stand, remote control.
