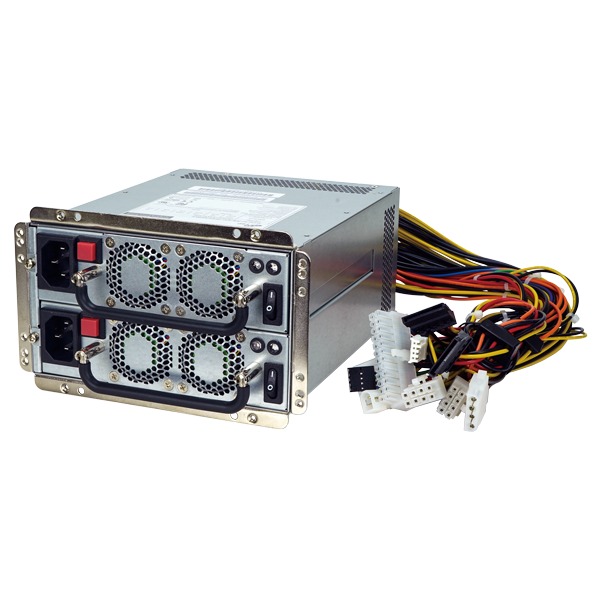

500 W ATX Mini Redundant Power Supply. Replaces the ACE-R4150AP-R10.
SPECIFICATIONS
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~80°C |
| Input | |
| Voltage | 90-264 VAC |
| Frequency | 47-63 Hz |
| Input Current | 6 A (RMS) @115 VAC, 3 A (RMS) @230 VAC |
| Inrush Current | 40 A max. for 115 VAC, 80 A max. for 230 VAC |
| Output | |
| Voltage | +3.3V/20A,+5V/20A,+12V/40A,-5V/0.3A,-12V/0.5A,+5Vsb/3A |
| General | |
| Watt | 500W |
| Efficiency | 0.84 |
| MTBF | 100,000 hours |

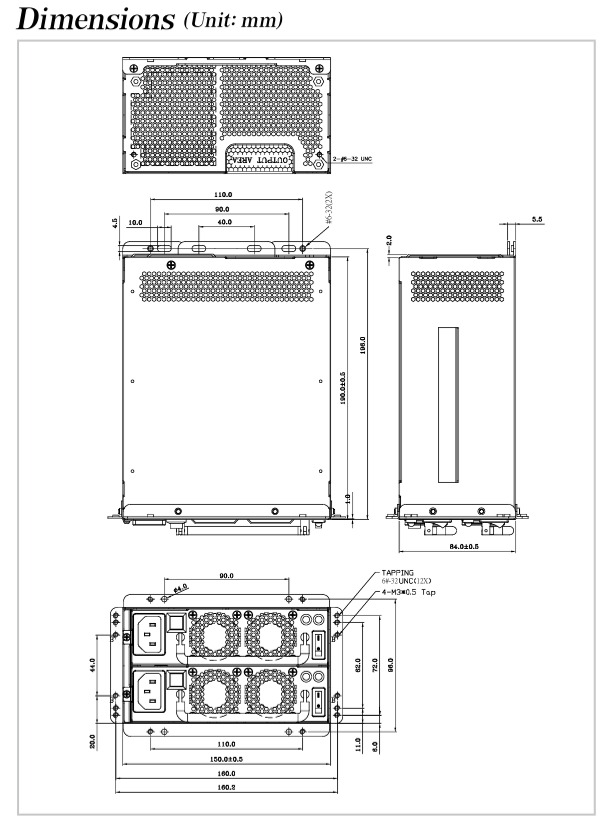

| Dimensions | 150 × 84× 190 mm |
ORDERING
| 63050-010500-010-RS | Redundant Power; FSP; FSP500-60MRB(S); 9PR5000712; Active PFC; Vin: 90~264VAC; 500W; Vout: ATX; ATX; CCL; RoHS |
|---|---|
| 63050-010500-000-RS | Redundant Power; FSP; FSP500-40MRB(M); 9PA500C614; Active PFC; Vin: 90~264VAC; 500W; UNIT, meet 80plus (GOLD); Vout: 12VDC/-12VDC/5VSB; Gold Finger; CCL; RoHS |
