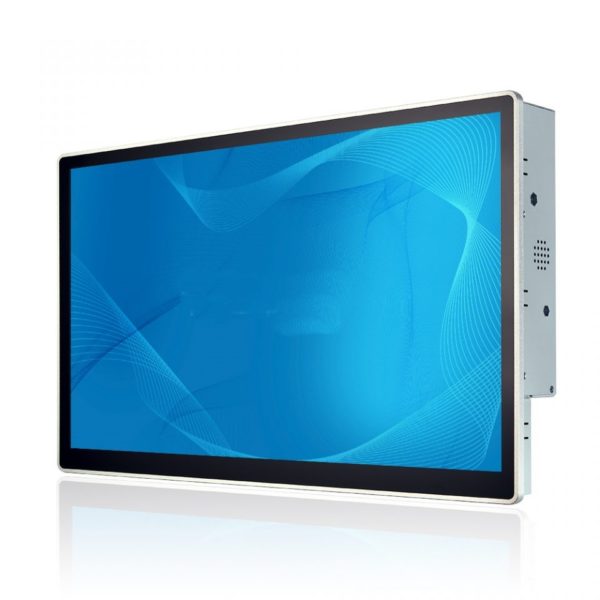

The 22” Economy Panel PC offered as part of our Economy Panel PC line combines many popular features of our computers, including a large HD touchscreen, aluminum chassis, high processing power, an IP65 rated waterproof front bezel, and more. But perhaps the most desirable feature of the TP-5593-22 is its low cost. By limiting customization options and streamlining assembly, we are now able to offer this 21.5-inch industrial computer at a price more commonly associated with smaller screen size computers. Add in up to 32 GB of RAM, an Intel Core i3 Processor and optional WiFi, and the TP-5593-22 emerges as one of our most attractive offerings yet. Contact Us today for a TP-5593-22 price quote.
SPECIFICATIONS
Primary Components
| Processor Family | Intel Core I series 7th Generation Kaby Lake |
| Processor Model | Core i3-7100U |
| Processor Speed | 2.4 GHz |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB, 32GB |
| Storage type | 1x 2.5″ SATA Drive Bay for SSD/HDD |
| Storage support | 64GB-512GB |
Display
| Screen Size | 21.5″ |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | 250 nits |
| Viewing Angle | 170º (H), 160º (V) |
| Number of Colors Supported | 16.7M |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |
| Hardness | 7H |
| Lifetime Usage | 30,000 hrs |

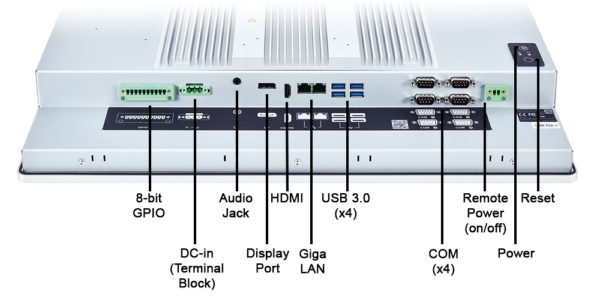

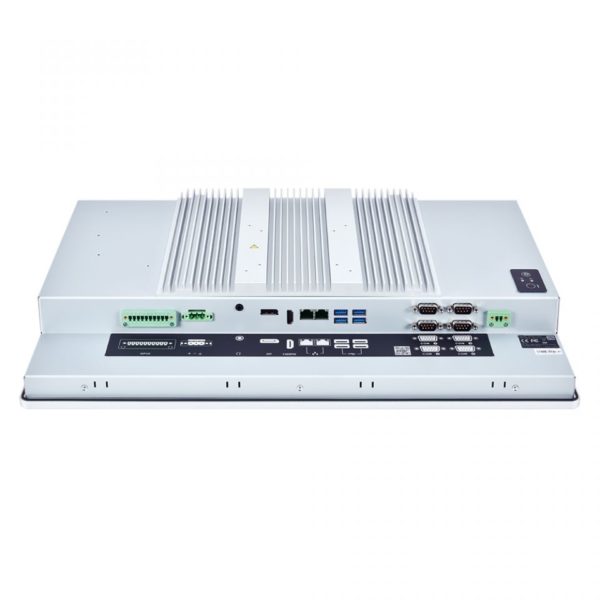

External I/O Ports
| USB | 4x USB 3.0 |
| Serial / Com | 4x COM |
| Ethernet / LAN | 2x RJ45 GbE LAN |
| Video Outputs | 1x DisplayPort, 1x HDMI |
| Other Ports | 1x 8-bit GPIO Terminal Block |
| Audio | 1x Audio Line-Out, 1x Mic-In |
| Power Input Port | 3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range | 8-24V DC |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro |
Expansion Slots
| Internal Mini PCIe | 1x Mini-PCIe |
| Internal M.2 | 1x M.2 Type E |
Multimedia
| Speakers | 2x 2W Speakers |
Thermal and Environmental
| Operating Temperature | 0°C – 50°C (32°F – 122°F) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Humidity Range | 10% – 90% Non-condensing |
| Storage Humidity | 10% – 90% Non-condensing |
| Cooling Solution | Passive – Fanless |
Enclosure
| Material | Aluminum |
| Ip Rating | IP65 Front Bezel |
| Color | Silver |
| Control Buttons | Power Button, Power Reset |
| Shock Rating | 10g for 11ms |
| Vibration Rating | 2G, 5Hz – 500Hz, random for SSD |
| Mounting Options | Panel Mount, VESA 100 Mount, VESA 75 Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional |
Dimensions / Weight
| Weight | 22 KG (48.5 lbs) |

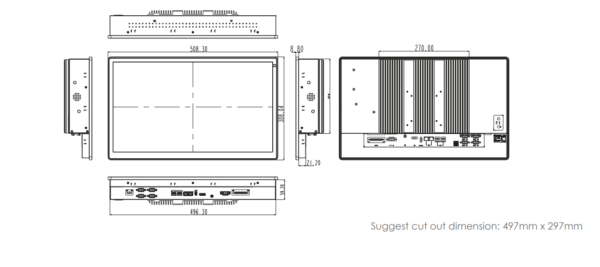

| Dimensions | 308 x 508 x 83 mm (12.1 x 20.0 x 3.3 in) |
Certification
| Certifications | CE, FCC Class B, IEC 60068-2-27 for Vibration / Shock |
