The maritime field faces critical environmental challenges, making reliable and rugged systems essential. Miller Technologies provides maritime professionals with marine-grade panel PCs, monitors and embedded box that use leading technologies and reliable designs which are perfect for applications on the dock, on the open deck, or in the control room or bridge. Considering various and complicated marine environment and real applications, we have a total solution from harbor to ship, providing customers a reliable environment.
The S19M/S24M marine monitor series has many sophisticated features that fit with practical marine environment, including front panel IP 66 dust- and water-proof level, wide-rang operating temperatures, multi-point capacitive touch, wide viewing angles and OSD control. Most importantly, optical bonding is the best choice for use in high brightness environments. Versatile mounting methods offer customers flexibility to match the widest variety of operating environments.
The marine grade series panel PCs and monitors are all certified to the most demanding marine standards–DNV, IEC 60945 and IACS-E10. Contact Us today for an S24M quote.
SPECIFICATIONS
| Display | |
| Backlight MTBF(hrs) | 50000 |
| Brightness(cd/m2) | 300 |
| Contrast Ratio | 5000 : 1 |
| LCD Size | 24″ |
| Max Resolution | 1920(W) x 1080(H) |
| Environment | |
| Humidity | 10% to 95% (non-condensing) |
| Operating Temperature | -15°C~55°C |
| Storage Temperature | -20°C~60°C |
| I/O Interface | |
| I/O Ports and Switches | DVI-D Signal Input: 2 x DVI (24-pin, female) VGA Signal Output: 1 x D-sub (15-pin, female) – Clone of VGA IN* Composite Video Input: 1 x BNC connector (female) |
| LCD | |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.3075mm x 0.3075mm |
| Viewing Angle (H-V) | 178° / 178° |
| Physical Characteristics | |

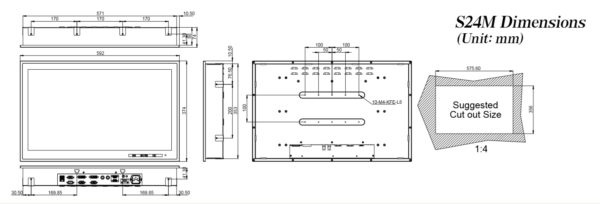

| Cutout Dimensions | 576 mm x 358 mm |
| Dimensions (LxWxH) (mm) | 592 mm x 374 mm x 113 mm |
| Touch | |
| Touch Controller | 6H |
| Touch Screen | EXC7200 (2-point) |
| Weight | |
| Weight | 11.48 Kg |

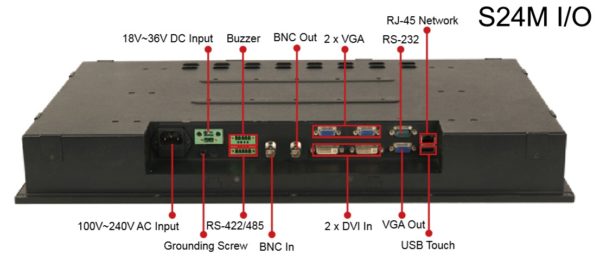

| I/O Interface | |
| I/O Interface | 1 x LAN(RJ-45) |
| 2 x Power In(100) | |
| 1 x RS-422/485 | |
| 1 x Touchscreen(UUSB Type A connector (female)) | |
| 2 x BNC(Input/Output) | |
| 1 x Buzzer | |
| 3 x VGA(Input x 2/Output x 1) | |
| 2 x DVI-D | |
ORDERING
| S24M-AD/PC-R10 | 24″ FHD 300cd/m2 Marine Display with AC and DC redundant power, PCAP touch screen, R10 |
OPTIONS
Panel Mount Kit: PK-S19M-R10 For S19M; PK-S24M-R10 For S24M
Desktop Stand: STAND-A21-R10 For S19M & S24M
PACKAGE CONTENTS
- 1 x Power Adapter
- 1 x Screw Kit
- 1 x Touch Pen
