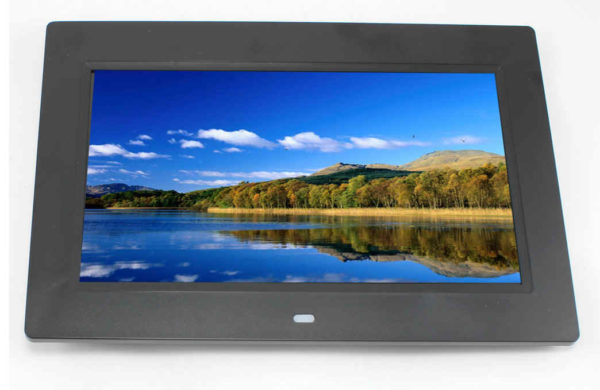

ADV10PFM – 10.1″ Widescreen Video Player Open Frame Module, Looping

10″ Widescreen Digital Sign Open Frame OEM Module with Audio and Built-in Flash Memory Player for Continuous Loop Operation.


  • Integrated Digital Media Player (MPEG2, AVI, & JPEG with MP3)
  • 2 Watt Speaker
  • ON/OFF Power Switch
  • Includes Wall/Surface Mount Bracket
  • 512MB Internal Flash Memory (Max. file: 496MB)
  • USB Port for Updates
  • Built-in Security Features Prevent Unauthorized Downloads to Internal Memory

The ADV10PF/ADV10PFM both feature a bright 10″ Widescreen (16:9) LCDs with A built-in flash memory player. Use the ADV10PF/ADV10PFM to play your advertising message right where your customers will be able to see it. The ADV10PF/ADV10PFM supports MPEG2 and AVI full motion video, as well as JPEG still image files with MP3 audio, which allows you to present a professional and eye catching advertising message to your audience. The ADV10PF/ADV10PFM will begin playing your message as soon as it is turned on, and your message runs in a continuous loop.

The ADV10PF can be flush mounted into your cabinetry or display stand, placed on a counter top, or wall/surface mounted for a professional presentation. The compact size minimizes the use of valuable display space, while the bright display is large enough to catch the eye of any passer-by. The ADV10PFM is an open frame module that can be built into a custom fixture/display.

The ADV10PF & ADV10PFM offer a very cost effective way to double or even triple your sales. The built-in flash memory player eliminates the reliability problems associated with DVD players which have moving parts that wear out. And because the ADV10PF/ADV10PFM are self contained, there is no need to find a separate place to put a cumbersome DVD player. To change your message, simply load your video onto a USB Flash Drive, plug the drive with your new file into the USB port on the ADV10PF/ADV10PFM, and the ADV10PF/ADV10PFM will automatically download the new file into the internal memory for immediate use. Then remove your USB Flash Drive and move on to the next unit. The ADV10PF/ADV10PFM can also play directly from a user provided SD, MS, or MMC memory card. Contact us for an ADV10PF or ADV10PFM quotation.

Screen Size – 10.1″ Widescreen (16:9)
Brightness – 250 NIT
Supported Video Formats – MPEG2, AVI, JPEG, MP3
Power Source – AC Power Adapter, Output: 5 VDC @ 2000mA, Input: 100-240VAC, 50/60Hz, Non-removable U.S. Plug, 46″ Cord Length
Supported Music/Audio Formats – MP3/WMA and JPEG for photos
Rear Controls – Power, Setup Menu Functions
Audio Output – Built-in Stereo Speakers
Viewing Angle (R/L/T/B) – 70°/70°/70°/50° (typ.)
ADV10PF: 10 3/4″(W) x 7 3/8″(H) x 1″(D)
ADV10PFM: 9 1/8″(W) x 5 5/8″(H)
Max. Supported Resolution: 720 x 480
Aspect Ratio: 16:9 Widescreen
Contrast Ratio: 600:1 (typ.)
Viewable Area: 5″(H) x 8.6″(W)

Mounting – Flush or Surface Mount, (Surface Bracket Included), Desktop or Shelf Stand
Operating Temperature – 0° ~ 45°C
Storage Temperature – -20° ~ 70°C
Memory – Built-in 512MB Flash Memory (loaded via USB port), (Max. file size: 496MB), Can play directly from user supplied SD, MS or MMC Card
Weight – ~2 lb.(0.9kg) (monitor only)
Integrated Flash Memory Player Built In. Continuous loop operation. Includes IR remote, power supply.

ADV10PF – 10.1″ Housed Digital Sign. Includes 512MB internal flash memory, USB port & SD card slot, AC adapter, and surface mount bracket.
ADV10PFM – 10.1″ Open Frame Digital Sign Module. Includes 512MB internal flash memory, USB port & SD card slot, AC adapter.
