ADV10PF-4 – 10.1″ Widescreen Video Player Open Frame Module, 4 Program Push-Button Selection

10.1″ LCD Looping Digital Video Player Module with Audio and 1-4 Program Selection Buttons.


  • Integrated Flash Memory Player (AVI video format)
  • 2 X 2 Watt Speakers
  • Loops Main Video or Image
  • Supports 1-4 Program Selection Push Button Switches to Select Alternate Videos or Images
  • SD Card Slot for User Provided Memory Card

The ADV10PF-4 features a bright 10.1″ Widescreen LCD with a built-in flash memory player. Use the ADV10PF-4 to play your advertising or informational message right where your customers will be able to see them. The ADV10PF-4 video player supports AVI full motion video, as well as JPEG still image files with MP3 audio, which allows you to present a professional and eye catching advertising message to your audience. The ADV10PF-4 can either loop a single video, or can run a “MENU” video in a loop that prompts the viewer to select from 1 to 4 alternate videos by pressing the corresponding push button switch. Once the alternate program video has finished playing through to the end, the ADV10PF-4 will resume looping the MENU video until another push button is pressed.

The ADV10PF-4 utilizes a user provided SD flash memory card to store your videos.

The ADV15PFIRPB2 is an open frame module and can be flush, surface, or VESA 75mm mounted into your cabinetry/fixture for a professional presentation.

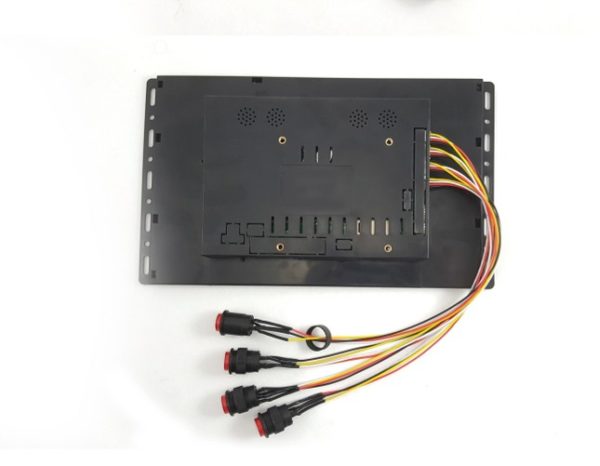

The ADV10PF-4 includes 4 push button switches and an AC power adapter.

The ADV10PF-4 offers a very cost effective way to double or even triple your sales. The built-in flash memory player eliminates the reliability problems associated with DVD players which have moving parts that wear out. And because the ADV10PF-4 is self contained, there is no need to find a separate place to put a cumbersome DVD player. To install or change your message, simply load your video onto an SD card, plug the card into the SD slot, turn on the power, and the ADV10PF-4 will automatically start playing your message. Contact us for a quotation.

Screen Size – 10.1″ Widescreen
Brightness – 300 NIT
Active Area –  222.72 x 125.28 mm
Supported File Types – AVI
Power Source – AC Power Adapter, Output: 12 VDC @ 2.0A, Input: 100-240VAC, 50/60Hz, Non-removable U.S. Plug, Ratings: CE

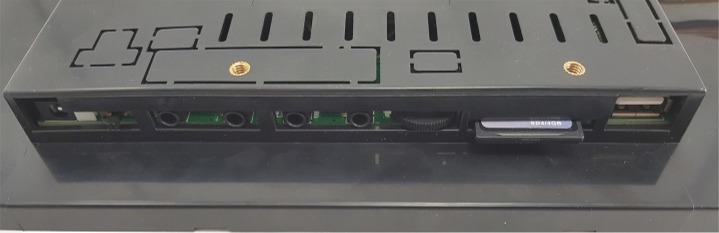

Rear Controls – Power, Volume
Viewing Angle (R/L/T/B) – 60º/60º/60º/60º
Dimensions (H/W/D) – 235mmW x 143mmH x 5.1mmD
Resolution – 1024 x 768
Mounting – Surface/Flush/VESA (75mm)
Operating Temperature – 0° ~ 45°C
Storage Temperature – -20° ~ 70°C
Media – SD/MS/MMC, USB up to 32GB, User Provided
Weight – 2.0 LB
Integrated Flash Memory Player Built In. Optional Continuous Loop Operation available. Includes AC power adapter.

ADV10PF-4 – 10.1″ Widescreen Open Frame POP Digital Video Player Module for Looping or 1 to 4 Program Selection Push Buttons.
Includes: SD card slot for user provided memory card, 4 push button switches, AC adapter.
