The ADV10PF features a bright 10.1″ Widescreen (16:9) LCD with built-in flash memory player. Use the ADV10PF to play your advertising message right where your customers will be able to see it. The ADV10PF supports MPEG2 and AVI full motion video, as well as JPEG still image files with MP3 audio, which allows you to present a professional and eye catching advertising message to your audience. The ADV10PF will begin playing your message as soon as it is turned on, and your message runs in a continuous loop.
The ADV10PF can be flush mounted into your cabinetry or display stand, placed on a counter top, or wall/surface mounted for a professional presentation. The compact size minimizes the use of valuable display space, while the bright display is large enough to catch the eye of any passer-by.
The ADV10PF offers a very cost effective way to double or even triple your sales. The built-in flash memory player eliminates the reliability problems associated with DVD players which have moving parts that wear out. And because the ADV10PF is self contained, there is no need to find a separate place to put a cumbersome DVD player. To change your message, simply load your video onto a USB Flash Drive, plug the drive with your new file into the USB port on the ADV10PF, and the ADV10PF will automatically download the new file into the internal memory for immediate use. Then remove your USB Flash Drive and move on to the next unit. The ADV10PF can also play directly from a user provided SD, MS, or MMC memory card. Contact us for an ADV10PF quotation.
SPECIFICATIONS
Screen Size – 10.1″ Widescreen (16:9)
Brightness – 250 NIT
Supported Video Formats – MPEG2, AVI, JPEG, MP3
Power Source – AC Power Adapter, Output: 5 VDC @ 2000mA, Input: 100-240VAC, 50/60Hz, Non-removable U.S. Plug, 46″ Cord Length
Supported Music/Audio Formats – MP3/WMA and JPEG for photos

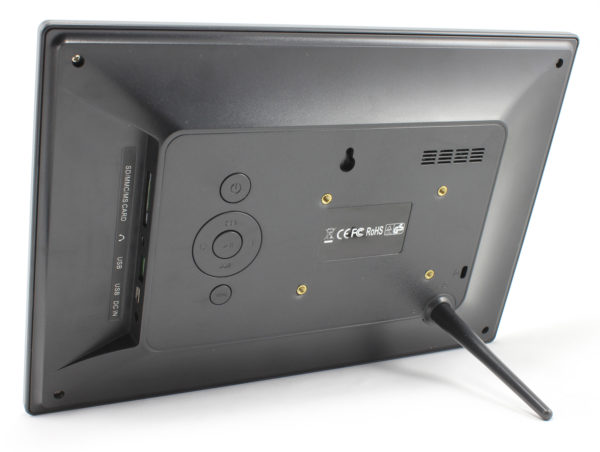

Rear Controls – Power, Setup Menu Functions
Audio Output – Built-in Stereo Speakers
Viewing Angle (R/L/T/B) – 70°/70°/70°/50° (typ.)
Dimensions:
ADV10PF: 10 3/4″(W) x 7 3/8″(H) x 1″(D)
ADV10PFM: 9 1/8″(W) x 5 5/8″(H)
Display:
Max. Supported Resolution: 720 x 480
Aspect Ratio: 16:9 Widescreen
Contrast Ratio: 600:1 (typ.)
Viewable Area: 5″(H) x 8.6″(W)

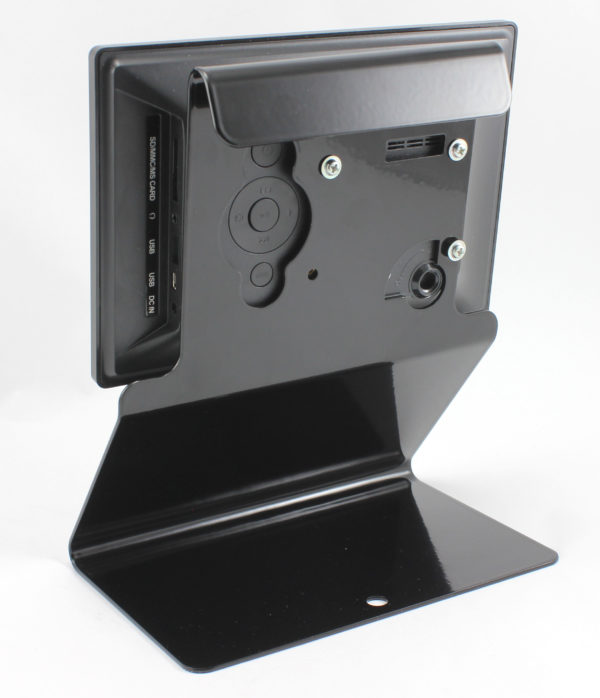

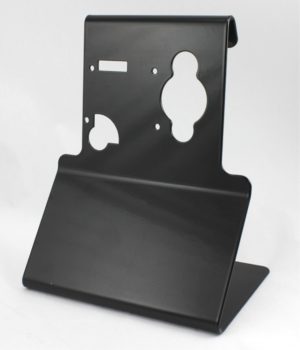

Mounting – Flush or Surface Mount, (Surface Bracket Included), Desktop or Shelf Stand
Operating Temperature – 0° ~ 45°C
Storage Temperature – -20° ~ 70°C
Memory – Built-in 512MB Flash Memory (loaded via USB port), (Max. file size: 496MB), Can play directly from user supplied SD, MS or MMC Card
Weight – ~2 lb.(0.9kg) (monitor only)
Integrated Flash Memory Player Built In. Continuous loop operation. Includes IR remote, power supply.
ORDERING

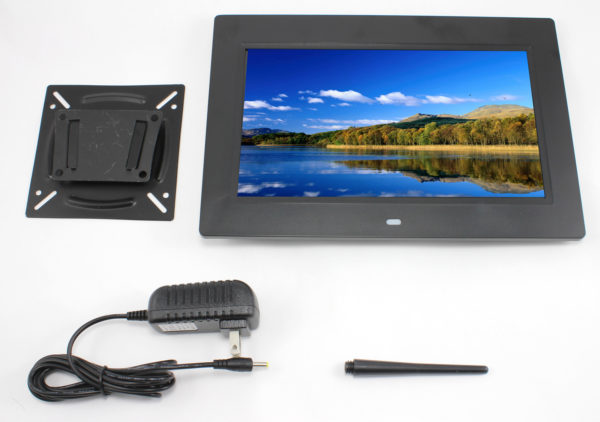

ADV10PF – 10.1″ Housed Digital Sign. Includes 512MB internal flash memory, USB port & SD card slot, AC adapter, and surface mount bracket.
ADV10PFM – 10.1″ Open Frame Digital Sign Module. Includes 512MB internal flash memory, USB port & SD card slot, AC adapter.
