  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM

    • The post TP-7045-24 – 23.8˝ IP66 Industrial Panel PC with Fanless Intel 12th Gen Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>     Meet Cornerstone, the TP-7045-24 23.8” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.

    Lay the groundwork for your industrial application with Cornerstone. CONTACT US today for a TP-7045-24 quote.

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Core I series 12th Generation Alder Lake
    Processor Model Core i3-1215U
    Processor Speed Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz
    Memory Type 2x DDR4 SO-DIMM
    Memory Support 4GB, 8GB, 16GB, 32GB, 64GB
    Storage Type 1x M.2 2280 NVME SSD slot
    Storage Support M.2: 256GB-1TB

    Display

    Screen Size 23.8″
    Resolution 1920 x 1080 (Full HD)
    Screen Ratio 16:9
    Brightness Optional 1000 nit High Brightness, 250 nits

    Touch Screen

    Touch Screen Projected Capacitive (Multi-touch), Resistive

    External I/O Ports

    USB 2x USB 2.0, 2x USB 3.0
    Serial / Com 3x COM
    Serial Protocol Detail COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232
    Ethernet / LAN 2x RJ45 GbE LAN
    Power Input Port 3-Pin DC-In (Phoenix Type)

    Power

    Input Voltage Range 9-36V DC

    Operating Systems

    Windows Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

    Compatibility

    Security Hardware TPM 2.0

    Expansion Slots

    Internal M.2 1x M.2 2230 Key E (for WiFi expansion option)

    Thermal & Environmental

    Operating Temperature -20°C – 60°C (-4°F – 140°F)
    Storage Temperature -30°C – 70°C (-22°F – 158°F)
    Cooling Solution Passive – Fanless with Heatsink
    Humidity Range 10% – 95% Non-condensing

    Enclosure

    Material Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis
    IP Rating IP66 Front Bezel
    Color Gray
    Led Indicator Light Power
    Mounting Options Panel Mount, VESA 100 Mount

    Peripherals & Wireless Connectivity

    WiFi Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
    Bluetooth Optional Bluetooth 5.3

    Weight / Dimensions

    Dimensions 640 x 88 x 395 mm (25.2 x 3.5 x 15.6 in)

    Warranty

    Warranty Up to 5 Years

    I/O

    DIMENSIONS

    The post TP-7045-24 – 23.8˝ IP66 Industrial Panel PC with Fanless Intel 12th Gen Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>         TP-7045-22 – 21.5˝ IP66 Industrial Panel PC with fanless Intel 12th Generation Core i3-1215U CPU https://millertech.com/product/tp-7045-22-21-5%cb%9d-ip66-industrial-panel-pc-with-fanless-intel-12th-generation-core-i3-1215u-cpu/?utm_source=rss&utm_medium=rss&utm_campaign=tp-7045-22-21-5%25cb%259d-ip66-industrial-panel-pc-with-fanless-intel-12th-generation-core-i3-1215u-cpu Thu, 11 Dec 2025 16:44:08 +0000 https://millertech.com/?post_type=product&p=16140
  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM

    • The post TP-7045-22 – 21.5˝ IP66 Industrial Panel PC with fanless Intel 12th Generation Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>     Meet Cornerstone, the TP-7045-22 21.5” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.

    Lay the groundwork for your industrial application with Cornerstone. CONTACT US today for TP-7045-22 pricing.

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Core I series 12th Generation Alder Lake
    Processor Model Core i3-1215U
    Processor Speed Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz
    Memory Type 2x DDR4 SO-DIMM
    Memory Support 4GB, 8GB, 16GB, 32GB, 64GB
    Storage Type 1x M.2 2280 NVME SSD slot
    Storage Support M.2: 256GB-1TB

    Display

    Screen Size 21.5
    Resolution 1920 x 1080 (Full HD)
    Screen Ratio 16:9
    Brightness Optional 1000 nit High Brightness, 250 nits

    Touch Screen

    Touch Screen Projected Capacitive (Multi-touch), Resistive

    External I/O Ports

    USB 2x USB 2.0, 2x USB 3.0
    Serial / Com 3x COM
    Serial Protocol Detail COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232
    Ethernet / LAN 2x RJ45 GbE LAN
    Power Input Port 3-Pin DC-In (Phoenix Type)

    Power

    Input Voltage Range 9-36V DC

    Operating Systems

    Windows Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

    Compatibility

    Security Hardware TPM 2.0

    Expansion Slots

    Internal M.2 1x M.2 2230 Key E (for WiFi expansion option)

    Thermal & Environmental

    Operating Temperature -20°C – 60°C (-4°F – 140°F)
    Storage Temperature -30°C – 70°C (-22°F – 158°F)
    Cooling Solution Passive – Fanless with Heatsink
    Humidity Range 10% – 95% Non-condensing

    Enclosure

    Material Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis
    IP Rating IP66 Front Bezel
    Color Gray
    Led Indicator Light Power
    Mounting Options Panel Mount, VESA 100 Mount

    Peripherals & Wireless Connectivity

    WiFi Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
    Bluetooth Optional Bluetooth 5.3

    Weight / Dimensions

    Weight 7.5 kg (16.5 lbs)
    Dimensions 557.3 x 88 x 362.3 mm (21.9 x 3.5 x 14.3 in)

    Warranty

    Warranty Up to 5 Years

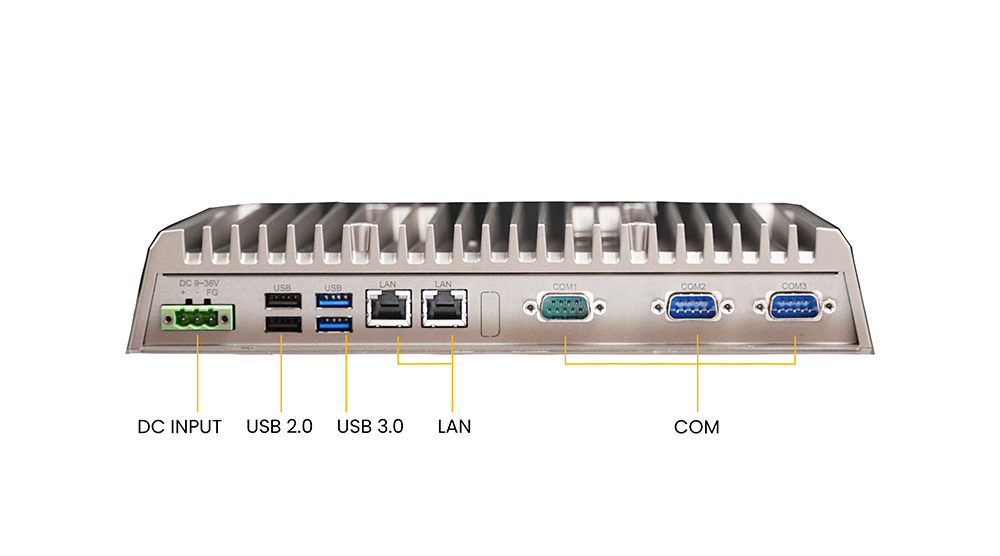

    I/O

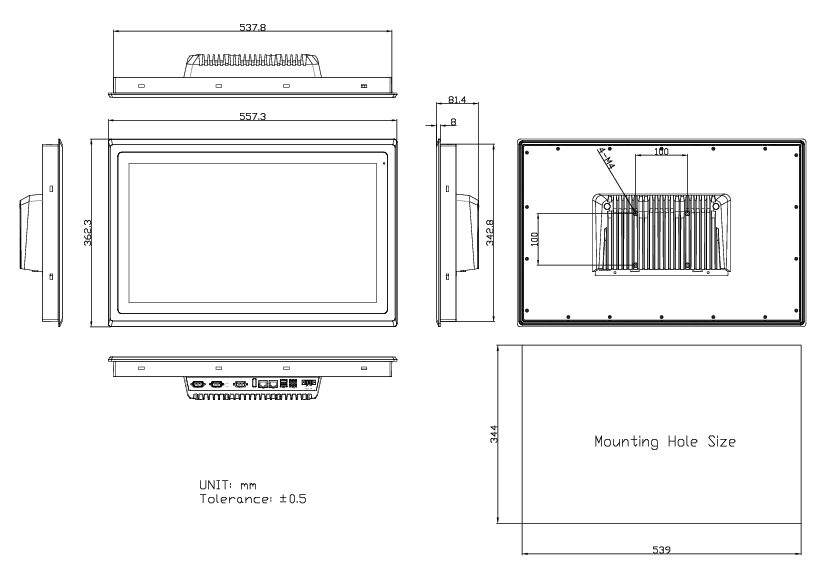

    DIMENSIONS

    The post TP-7045-22 – 21.5˝ IP66 Industrial Panel PC with fanless Intel 12th Generation Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>         TP-7045-19 – 19˝ IP66 Industrial Panel PC with fanless Intel Core i3-1215U CPU https://millertech.com/product/tp-7045-19-19%cb%9d-ip66-industrial-panel-pc-with-fanless-intel-core-i3-1215u-cpu/?utm_source=rss&utm_medium=rss&utm_campaign=tp-7045-19-19%25cb%259d-ip66-industrial-panel-pc-with-fanless-intel-core-i3-1215u-cpu Thu, 11 Dec 2025 16:11:18 +0000 https://millertech.com/?post_type=product&p=16133
  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM

    • The post TP-7045-19 – 19˝ IP66 Industrial Panel PC with fanless Intel Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>     Meet Cornerstone, the TP-7045-19 19-inch Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.

    Lay the groundwork for your industrial application with Cornerstone. CONTACT US today for a TP-7045-19 quote.

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Core I series 12th Generation Alder Lake
    Processor Model Core i3-1215U
    Processor Speed Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz
    Memory Type 2x DDR4 SO-DIMM
    Memory Support 4GB, 8GB, 16GB, 32GB, 64GB
    Storage Type 1x M.2 2280 NVME SSD slot
    Storage Support M.2: 256GB-1TB

    Display

    Screen Size 19
    Resolution 1280 x 1024 (SXGA)
    Screen Ratio 5:4
    Brightness Optional 1000 nit High Brightness, 350 nits

    Touch Screen

    Touch Screen Projected Capacitive (Multi-touch), Resistive

    External I/O Ports

    USB 2x USB 2.0, 2x USB 3.0
    Serial / Com 3x COM
    Serial Protocol Detail COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232
    Ethernet / LAN 2x RJ45 GbE LAN
    Power Input Port 3-Pin DC-In (Phoenix Type)

    Power

    Input Voltage Range 9-36V DC

    Operating Systems

    Windows Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

    Compatibility

    Security Hardware TPM 2.0

    Expansion Slots

    Internal M.2 1x M.2 2230 Key E (for WiFi expansion option)

    Thermal & Environmental

    Operating Temperature -20°C – 60°C (-4°F – 140°F)
    Storage Temperature -30°C – 70°C (-22°F – 158°F)
    Cooling Solution Passive – Fanless with Heatsink
    Humidity Range 10% – 95% Non-condensing

    Enclosure

    Material Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis
    IP Rating IP66 Front Bezel
    Color Gray
    Led Indicator Light Power
    Mounting Options Panel Mount, VESA 100 Mount

    Peripherals & Wireless Connectivity

    WiFi Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
    Bluetooth Optional Bluetooth 5.3

    Weight / Dimensions

    Dimensions 468 x 78 x 380 mm (18.4 x 3.1 x 15.0 in)

    Warranty

    Warranty Up to 5 Years

    I/O

    DIMENSIONS

    The post TP-7045-19 – 19˝ IP66 Industrial Panel PC with fanless Intel Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>         TP-7045-18 – 18˝ IP66 Industrial Panel PC with Intel Core i3-1215U CPU https://millertech.com/product/tp-7045-18-18%cb%9d-ip66-industrial-panel-pc-with-intel-core-i3-1215u-cpu/?utm_source=rss&utm_medium=rss&utm_campaign=tp-7045-18-18%25cb%259d-ip66-industrial-panel-pc-with-intel-core-i3-1215u-cpu Thu, 11 Dec 2025 15:51:13 +0000 https://millertech.com/?post_type=product&p=16127
  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM

    • The post TP-7045-18 – 18˝ IP66 Industrial Panel PC with Intel Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>     Meet Cornerstone, the TP-7045-18 18” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.

    Lay the groundwork for your industrial application with Cornerstone. CONTACT US today for a TP-7045-18 quote.

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Core I series 12th Generation Alder Lake
    Processor Model Core i3-1215U
    Processor Speed Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz
    Memory Type 2x DDR4 SO-DIMM
    Memory Support 4GB, 8GB, 16GB, 32GB, 64GB
    Storage Type 1x M.2 2280 NVME SSD slot
    Storage Support M.2: 256GB-1TB

    Display

    Screen Size 18.5″
    Resolution 1920 x 1080 (Full HD)
    Screen Ratio 16:9
    Brightness Optional 1000 nit High Brightness, 300 nits

    Touch Screen

    Touch Screen Projected Capacitive (Multi-touch), Resistive

    External I/O Ports

    USB 2x USB 2.0, 2x USB 3.0
    Serial / Com 3x COM
    Serial Protocol Detail COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232
    Ethernet / LAN 2x RJ45 GbE LAN
    Power Input Port 3-Pin DC-In (Phoenix Type)

    Power

    Input Voltage Range 9-36V DC

    Operating Systems

    Windows Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

    Compatibility

    Security Hardware TPM 2.0

    Expansion Slots

    Internal M.2 1x M.2 2230 Key E (for WiFi expansion option)

    Thermal & Environmental

    Operating Temperature -20°C – 60°C (-4°F – 140°F)
    Storage Temperature -30°C – 70°C (-22°F – 158°F)
    Cooling Solution Passive – Fanless with Heatsink
    Humidity Range 10% – 95% Non-condensing

    Enclosure

    Material Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis
    IP Rating IP66 Front Bezel
    Color Gray
    Led Indicator Light Power
    Mounting Options Panel Mount, VESA 100 Mount

    Peripherals & Wireless Connectivity

    WiFi Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
    Bluetooth Optional Bluetooth 5.3

    Weight / Dimensions

    Dimensions 499 x 78 x 314 mm (19.6 x 3.1 x 12.4 in)

    Warranty

    Warranty Up to 5 Years

    I/O

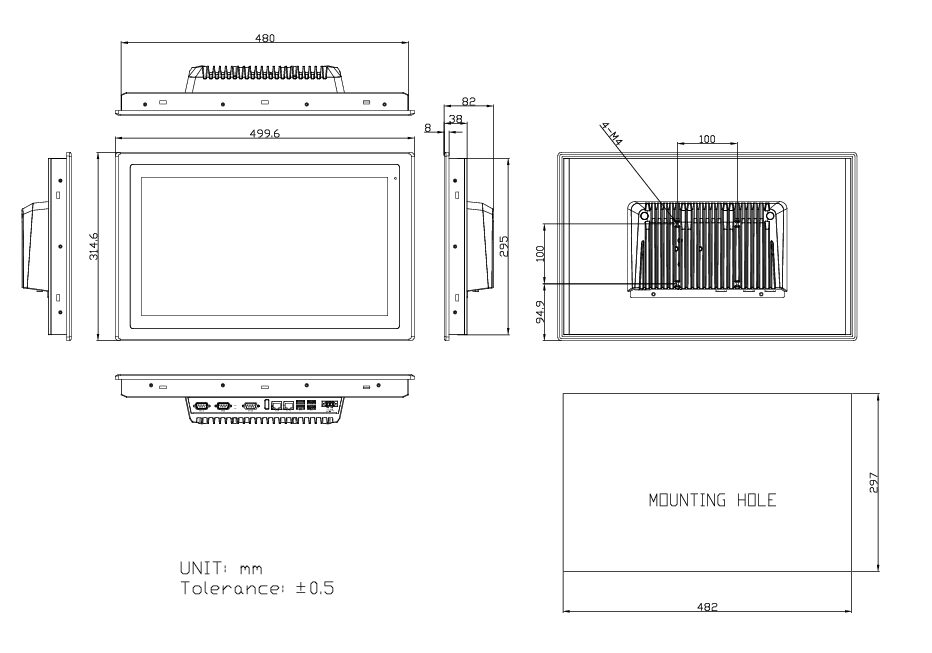

    DIMENSIONS

    The post TP-7045-18 – 18˝ IP66 Industrial Panel PC with Intel Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>         TP-7045-17 – 17˝ IP66 Industrial Panel PC with Fanless Intel Core i3-1215U CPU https://millertech.com/product/tp-7045-17-17%cb%9d-ip66-industrial-panel-pc-with-fanless-intel-core-i3-1215u-cpu/?utm_source=rss&utm_medium=rss&utm_campaign=tp-7045-17-17%25cb%259d-ip66-industrial-panel-pc-with-fanless-intel-core-i3-1215u-cpu Wed, 10 Dec 2025 20:42:37 +0000 https://millertech.com/?post_type=product&p=16122
  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM

    • The post TP-7045-17 – 17˝ IP66 Industrial Panel PC with Fanless Intel Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>     Meet Cornerstone, the TP-7045-17 17” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.

    Lay the groundwork for your industrial application with Cornerstone. CONTACT US today for TP-7045-17 pricing.

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Core I series 12th Generation Alder Lake
    Processor Model Core i3-1215U
    Processor Speed Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz
    Memory Type 2x DDR4 SO-DIMM
    Memory Support 4GB, 8GB, 16GB, 32GB, 64GB
    Storage Type 1x M.2 2280 NVME SSD slot
    Storage Support M.2: 256GB-1TB

    Display

    Screen Size 17″
    Resolution 1280 x 1024 (SXGA)
    Screen Ratio 5:4
    Brightness Optional 1000 nit High Brightness, 350 nits

    Touch Screen

    Touch Screen Projected Capacitive (Multi-touch), Resistive

    External I/O Ports

    USB 2x USB 2.0, 2x USB 3.0
    Serial / Com 3x COM
    Serial Protocol Detail COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232
    Ethernet / LAN 2x RJ45 GbE LAN
    Power Input Port 3-Pin DC-In (Phoenix Type)

    Power

    Input Voltage Range 9-36V DC

    Operating Systems

    Windows Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

    Compatibility

    Security Hardware TPM 2.0

    Expansion Slots

    Internal M.2 1x M.2 2230 Key E (for WiFi expansion option)

    Thermal & Environmental

    Operating Temperature -20°C – 60°C (-4°F – 140°F)
    Storage Temperature -30°C – 70°C (-22°F – 158°F)
    Cooling Solution Passive – Fanless with Heatsink
    Humidity Range 10% – 95% Non-condensing

    Enclosure

    Material Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis
    IP Rating IP66 Front Bezel
    Color Gray
    Led Indicator Light Power
    Mounting Options Panel Mount, VESA 100 Mount

    Peripherals & Wireless Connectivity

    WiFi Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
    Bluetooth Optional Bluetooth 5.3

    Weight / Dimensions

    Dimensions 439 x 77 x 348 mm (17.3 x 3.0 x 13.7 in)

    Warranty

    Warranty Up to 5 Years

    I/O

    DIMENSIONS

    The post TP-7045-17 – 17˝ IP66 Industrial Panel PC with Fanless Intel Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>         TP-7045-16 – 16″ IP66 Industrial Panel PC with Intel Core i3-1215U CPU https://millertech.com/product/tp-7045-16-16-ip66-industrial-panel-pc-with-intel-core-i3-1215u-cpu/?utm_source=rss&utm_medium=rss&utm_campaign=tp-7045-16-16-ip66-industrial-panel-pc-with-intel-core-i3-1215u-cpu Wed, 10 Dec 2025 16:35:05 +0000 https://millertech.com/?post_type=product&p=16112
  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM

    • The post TP-7045-16 – 16″ IP66 Industrial Panel PC with Intel Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>     Meet Cornerstone, the TP-7045-16 16” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.

    Lay the groundwork for your industrial application with Cornerstone. CONTACT US today for TP-7045-16 pricing.

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Core I series 12th Generation Alder Lake
    Processor Model Core i3-1215U
    Processor Speed Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz
    Memory Type 2x DDR4 SO-DIMM
    Memory Support 4GB, 8GB, 16GB, 32GB, 64GB
    Storage Type 1x M.2 2280 NVME SSD slot
    Storage Support M.2: 256GB-1TB

    Display

    Screen Size 15.6″
    Resolution 1920 x 1080 (Full HD)
    Screen Ratio 16:9
    Brightness Optional 1000 nit High Brightness, 500 nits

    Touch Screen

    Touch Screen Projected Capacitive (Multi-touch), Resistive

    External I/O Ports

    USB 2x USB 2.0, 2x USB 3.0
    Serial / Com 3x COM
    Serial Protocol Detail COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232
    Ethernet / LAN 2x RJ45 GbE LAN

    Power

    Input Voltage Range 9-36V DC

    Peripherals & Wireless Connectivity

    WiFi Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
    Bluetooth Optional Bluetooth 5.3

    Weight / Dimensions

    Weight 4.5 kg (9.9 lbs)
    Dimensions 412 x 78 x 277.5 mm (16.2 x 3.1 x 10.9 in)

    Warranty

    Warranty Up to 5 Years

    I/O

    DIMENSIONS

    The post TP-7045-16 – 16″ IP66 Industrial Panel PC with Intel Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>         TP-7045-15 – 15″ IP66 Industrial Panel PC with Intel 12th Generation Core i3-1215U https://millertech.com/product/tp-7045-15-15-ip66-industrial-panel-pc-with-intel-12th-generation-core-i3-1215u/?utm_source=rss&utm_medium=rss&utm_campaign=tp-7045-15-15-ip66-industrial-panel-pc-with-intel-12th-generation-core-i3-1215u Wed, 10 Dec 2025 16:11:43 +0000 https://millertech.com/?post_type=product&p=16106
  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM

    • The post TP-7045-15 – 15″ IP66 Industrial Panel PC with Intel 12th Generation Core i3-1215U appeared first on Miller Technologies.

    ]]>     Meet Cornerstone, the TP-7045-15 15” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.

    Lay the groundwork for your industrial application with Cornerstone. CONTACT US today for TP-7045-15 pricing.

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Core I series 12th Generation Alder Lake
    Processor Model Core i3-1215U
    Processor Speed Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz
    Memory Type 2x DDR4 SO-DIMM
    Memory Support 4GB, 8GB, 16GB, 32GB, 64GB
    Storage Type 1x M.2 2280 NVME SSD slot
    Storage Support M.2: 256GB-1TB

    Display

    Screen Size 15″
    Resolution 1024 x 768 (XGA)
    Screen Ratio 4:3
    Brightness Optional 1000 nit High Brightness, 350 nits

    Touch Screen

    Touch Screen Projected Capacitive (Multi-touch), Resistive

    External I/O Ports

    USB 2x USB 2.0, 2x USB 3.0
    Serial / Com 3x COM
    Serial Protocol Detail COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232
    Ethernet / LAN 2x RJ45 GbE LAN

    Power

    Input Voltage Range 9-36V DC
    Max Power Consumption 60W

    Operating Systems

    Windows Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

    Compatibility

    Security Hardware TPM 2.0

    Expansion Slots

    Internal M.2 1x M.2 2230 Key E (for WiFi expansion option)

    Thermal & Environmental

    Operating Temperature -20°C – 60°C (-4°F – 140°F)
    Storage Temperature -30°C – 70°C (-22°F – 158°F)
    Cooling Solution Passive – Fanless with Heatsink
    Humidity Range 10% – 95% Non-condensing

    Enclosure

    Material Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis
    IP Rating IP66 Front Bezel
    Color Gray
    Led Indicator Light Power
    Mounting Options Panel Mount, VESA 100 Mount

    Peripherals & Wireless Connectivity

    WiFi Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
    Bluetooth Optional Bluetooth 5.3

    Weight / Dimensions

    Weight 5 kg (11.0 lbs)
    Dimensions 410.2 x 78.7 x 290 mm (16.1 x 3.1 x 11.4 in)

    Warranty

    Warranty Up to 5 Years

    I/O

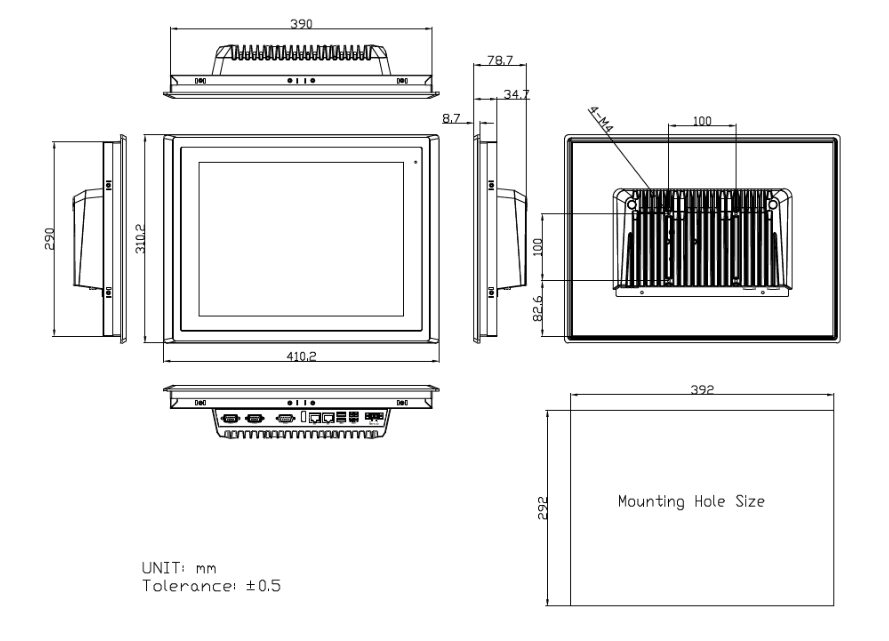

    DIMENSIONS

    The post TP-7045-15 – 15″ IP66 Industrial Panel PC with Intel 12th Generation Core i3-1215U appeared first on Miller Technologies.

    ]]>         TP-7045-12W – 12.1″ Widescreen IP65 Industrial Panel PC with Intel 12th Gen Core i3-1215U CPU https://millertech.com/product/tp-7045-12w-12-1-widescreen-ip65-industrial-panel-pc-with-intel-12th-gen-core-i3-1215u-cpu/?utm_source=rss&utm_medium=rss&utm_campaign=tp-7045-12w-12-1-widescreen-ip65-industrial-panel-pc-with-intel-12th-gen-core-i3-1215u-cpu Tue, 09 Dec 2025 20:37:43 +0000 https://millertech.com/?post_type=product&p=16100
  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM

    • The post TP-7045-12W – 12.1″ Widescreen IP65 Industrial Panel PC with Intel 12th Gen Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>     Meet Cornerstone, the TP-7045-12W 12” Widescreen Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.

    Lay the groundwork for your industrial application with Cornerstone. CONTACT US today for TP-7045-12W pricing.

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Core I series 12th Generation Alder Lake
    Processor Model Core i3-1215U
    Processor Speed Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz
    Memory Type 2x DDR4 SO-DIMM
    Memory Support 4GB, 16GB, 32GB, 64GB
    Storage Type 1x M.2 2280 NVME SSD slot
    Storage Support M.2: 256GB-1TB

    Display

    Screen Size 12.1″
    Resolution 1280 x 800 (WXGA)
    Screen Ratio 16:9
    Brightness Optional 1000 nit High Brightness, 600 nits

    Touch Screen

    Touch Screen Projected Capacitive (Multi-touch), Resistive

    External I/O Ports

    USB 2x USB 2.0, 2x USB 3.0
    Serial / Com 3x COM
    Serial Protocol Detail COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232
    Ethernet / LAN 2x RJ45 GbE LAN
    Power Input Port 3-Pin DC-In (Phoenix Type)

    Power

    Input Voltage Range 9-36V DC

    Operating Systems

    Windows Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

    Compatibility

    Security Hardware TPM 2.0

    Expansion Slots

    Internal M.2 1x M.2 2230 Key E (for WiFi expansion option)

    Thermal & Environmental

    Operating Temperature -20°C – 60°C (-4°F – 140°F)
    Storage Temperature -30°C – 70°C (-22°F – 158°F)
    Cooling Solution Passive – Fanless with Heatsink
    Humidity Range 10% – 95% Non-condensing

    Enclosure

    Material Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis
    IP Rating IP66 Front Bezel
    Color Silver
    Led Indicator Light Power
    Mounting Options Panel Mount, VESA 100 Mount

    Peripherals & Wireless Connectivity

    WiFi Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
    Bluetooth Optional Bluetooth 5.3

    Weight / Dimensions

    Dimensions 328 x 77 x 227 mm (12.9 x 3.0 x 8.9 in)

    Warranty

    Warranty Up to 5 Years

    I/O

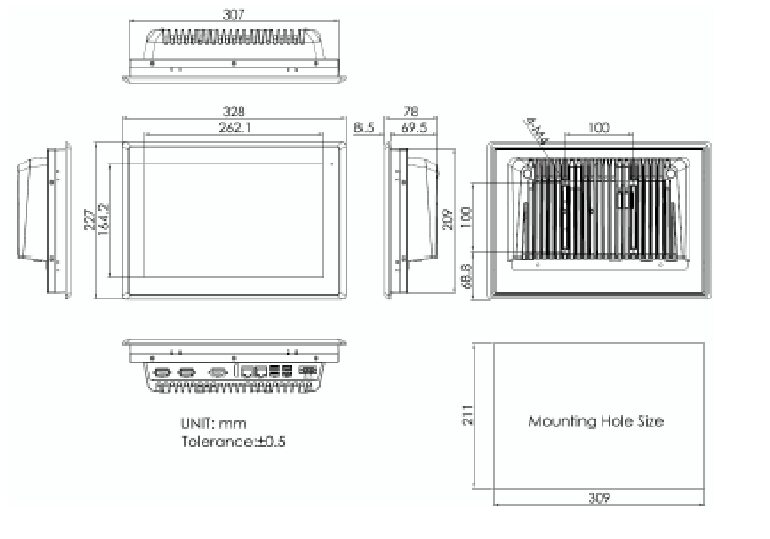

    DIMENSIONS

    The post TP-7045-12W – 12.1″ Widescreen IP65 Industrial Panel PC with Intel 12th Gen Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>         TP-7045-12 – 12.1″ Industrial Panel PC with Intel 12th Gen Core i3-1215U https://millertech.com/product/tp-7045-12-12-1-industrial-panel-pc-with-intel-12th-gen-core-i3-1215u/?utm_source=rss&utm_medium=rss&utm_campaign=tp-7045-12-12-1-industrial-panel-pc-with-intel-12th-gen-core-i3-1215u Tue, 09 Dec 2025 20:05:24 +0000 https://millertech.com/?post_type=product&p=16094
  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM

    • The post TP-7045-12 – 12.1″ Industrial Panel PC with Intel 12th Gen Core i3-1215U appeared first on Miller Technologies.

    ]]>     Meet Cornerstone, the TP-7045-12 12.1” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.

    Lay the groundwork for your industrial application with Cornerstone. CONTACT US today for TP-7045-12 pricing.

    I/O

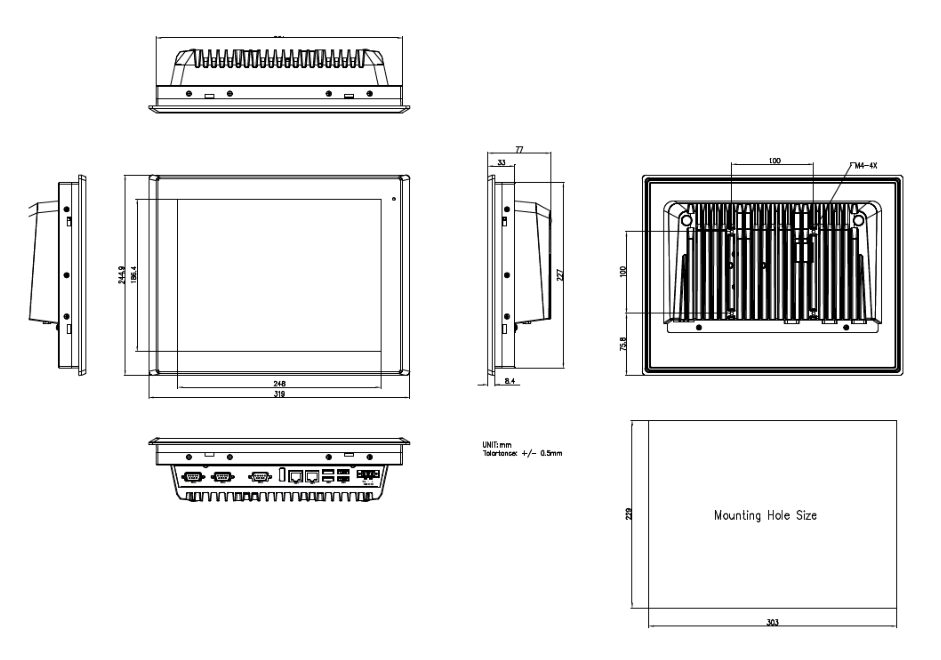

    DIMENSIONS

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Core I series 12th Generation Alder Lake
    Processor Model Core i3-1215U
    Processor Speed Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz
    Memory Type 2x DDR4 SO-DIMM
    Memory Support 4GB, 8GB, 16GB, 32GB, 64GB
    Storage Type 1x M.2 2280 NVME SSD slot
    Storage Support M.2: 256GB-1TB

    Display

    Screen Size 12.1″
    Resolution 1024 x 768 (XGA)
    Screen Ratio 4:3
    Brightness Optional 1000 nit High Brightness, 500 nits

    Touch Screen

    Touch Screen Projected Capacitive (Multi-touch), Resistive

    External I/O Ports

    USB 2x USB 2.0, 2x USB 3.0
    Serial / Com 3x COM
    Serial Protocol Detail COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232
    Ethernet / LAN 2x RJ45 GbE LAN
    Power Input Port 3-Pin DC-In (Phoenix Type)

    Power

    Input Voltage Range 9-36V DC

    Operating Systems

    Windows Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

    Compatibility

    Security Hardware TPM 2.0

    Expansion Slots

    Internal M.2 1x M.2 2230 Key E (for WiFi expansion option)

    Thermal & Environmental

    Operating Temperature -20°C – 60°C (-4°F – 140°F)
    Storage Temperature -30°C – 70°C (-22°F – 158°F)
    Cooling Solution Passive – Fanless with Heatsink
    Humidity Range 10% – 95% Non-condensing

    Enclosure

    Material Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis
    IP Rating IP66 Front Bezel
    Color Gray
    Led Indicator Light Power
    Mounting Options Panel Mount, VESA 100 Mount

    Peripherals & Wireless Connectivity

    WiFi Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
    Bluetooth Optional Bluetooth 5.3

    Weight / Dimensions

    Weight 3.5 kg (7.7 lbs)
    Dimensions 314 x 77 x 244.9 mm (12.4 x 3.0 x 9.6 in)

    Warranty

    Warranty Up to 5 Years

    The post TP-7045-12 – 12.1″ Industrial Panel PC with Intel 12th Gen Core i3-1215U appeared first on Miller Technologies.

    ]]>         TP-7045-10 – 10″ Industrial Panel PC with Core i3-1215U CPU https://millertech.com/product/tp-7045-10-10-industrial-panel-pc-with-core-i3-1215u-cpu/?utm_source=rss&utm_medium=rss&utm_campaign=tp-7045-10-10-industrial-panel-pc-with-core-i3-1215u-cpu Tue, 11 Nov 2025 22:27:59 +0000 https://millertech.com/?post_type=product&p=15940
  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • IP66 front bezel
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM

    • The post TP-7045-10 – 10″ Industrial Panel PC with Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>     Meet Cornerstone, the TP-7045-10 10” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed. Contact Us today for TP-7045-10 pricing.

    SPECIFICATIONS

    Primary Components
    Processor Family Intel Core I series 12th Generation Alder Lake
    Processor Model Core i3-1215U
    Processor Speed Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz
    Memory Type 2x DDR4 SO-DIMM
    Memory Support 4GB, 8GB, 16GB, 32GB, 64GB
    Storage Type 1x M.2 2280 NVME SSD slot
    Storage Support M.2: 256GB-1TB
    Display
    Screen Size 10.1″
    Resolution 1280 x 800 (WXGA)
    Screen Ratio 4:3
    Brightness 350 nits
    Enclosure
    Material Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis
    IP Rating IP66 Front Bezel
    Color Gray
    Led Indicator Light Power
    Mounting Options Panel Mount, VESA 100 Mount
    Peripherals & Wireless Connectivity
    WiFi Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
    Bluetooth Optional Bluetooth 5.3



    I/O

    DIMENSIONS

    The post TP-7045-10 – 10″ Industrial Panel PC with Core i3-1215U CPU appeared first on Miller Technologies.

    ]]>
