  • Supports 12th/13th Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC
  • Supports on-board LPDDR4x 3200 MHz 8GB memory, up to 32GB
  • Supports quadruple independent display via two HDMI™ and two DP
  • Supports PCIe X4, M.2 M key, M.2 B key and M.2 A key expansion
  • Supports two 2.5GbE LAN with I225V/I226V

    • The post WAFER-ADL-P – 3.5″ SBC supports Intel Core i7/i5/i3 and Celeron® processors appeared first on Miller Technologies.

    ]]>     The WAFER-ADL-P is a 3.5-inch single-board computer designed to seamlessly work with 12th/13th Gen Intel® Core™ i7/i5/i3 and Celeron® mobile processors. It comes with a reliable 8GB LPDDR4x on-board memory, typically used in high-vibration and shock environments. The quadruple 4K display connection makes the board ideal for digital signage, surveillance, maintenance, or monitoring usage. The PCIe x4 expansion offers additional extensive I/O and function expansion capabilities. To summarize, the WAFER-ADL-P is compact but versatile, able to adapt to various IoT applications such as surveillance, EV charging stations, AMR, and smart energy management.

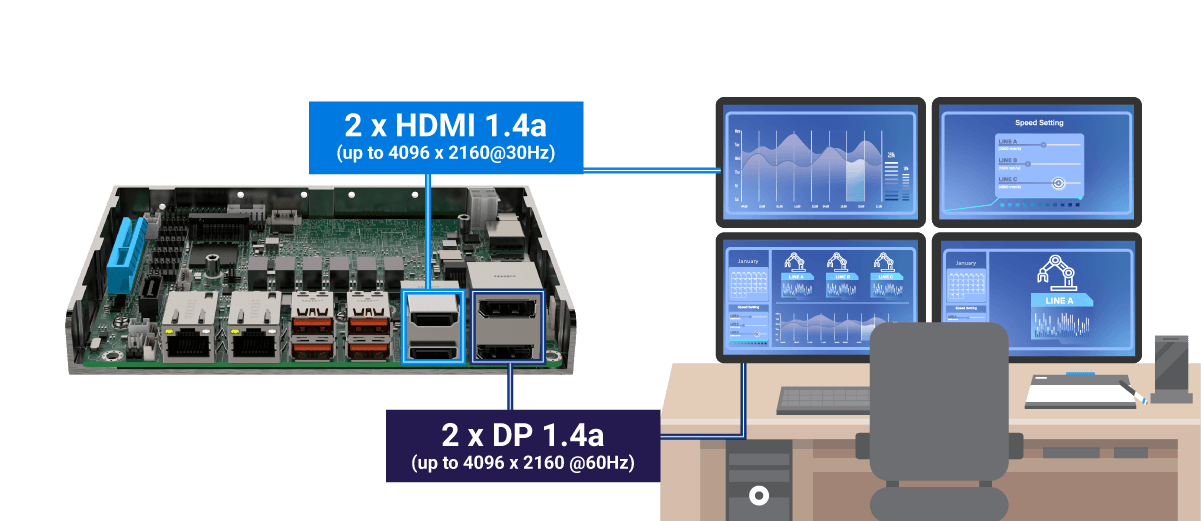

    4K Quadruple Independent Displays

    The WAFER-ADL-P integrates Intel® Iris® Xe Graphics, delivering up to 2.47x faster graphics performance compared to 11th Gen Intel Core processors. With Intel® Iris® Xe Graphics, the board can feature up to 96 graphics EUs and also provide up to four concurrent 4K independent displays. This is ideal for video wall and surveillance applications.

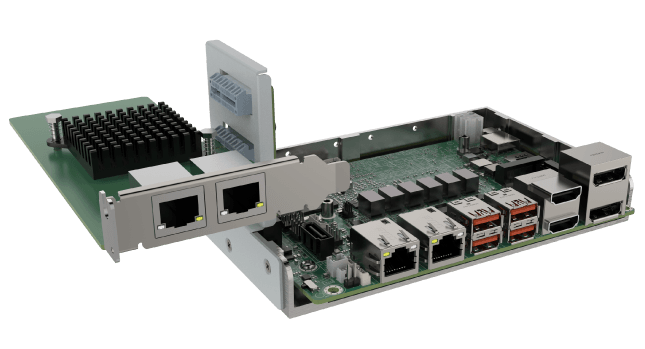

    Outwards-facing Expansions:

    Two PCIe x1 / One PCIe x2

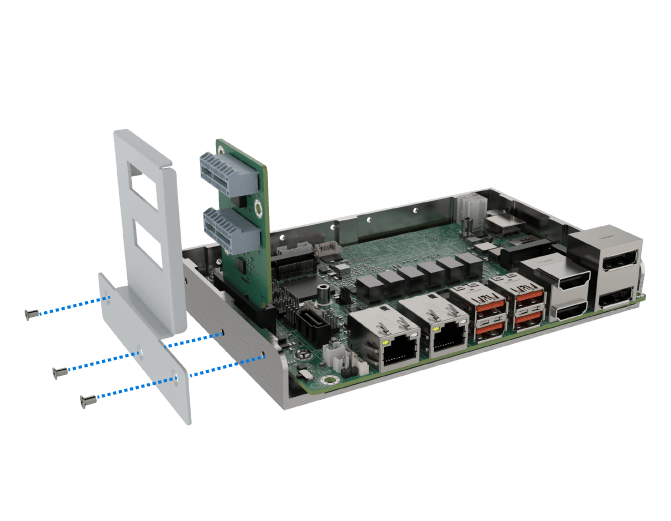

    The outwards-facing riser card, NWR-L2S, enables the connection of up to two outwards-facing PCIe x1 slots via one PCI Express interface. Although may take up more space, it can help enhance the airflow and heat transfer within the system. It is ideal for the chassis that is wide enough for the expansion card to be placed.

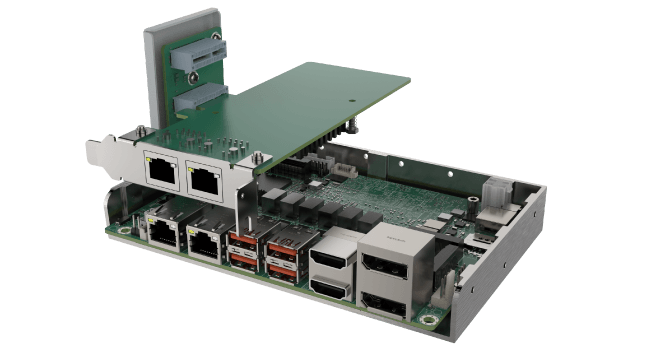

    Inwards-facing Expansions:
    Two PCIe x1 / One PCIe x2

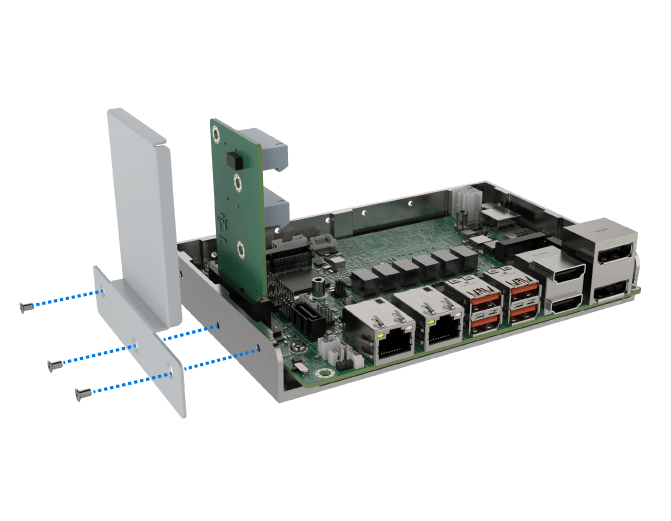

    The inwards-facing riser card, NWR-R2S, enables the connection of up to two inwards-facing PCIe x1 slots via one PCI Express interface. It is suitable for installation where space is limited. With higher height to increase spacing between boards, it can ensure efficient heat dissipation for space-constrained applications.

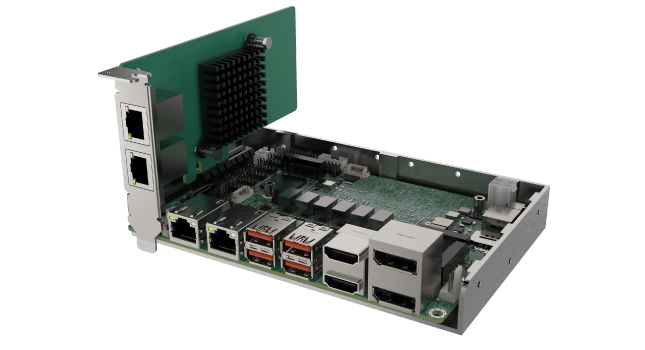

    PCIe x4 Interface Card Expansion

    The PCIe Gen3 x4 (x2 signal) slot, providing high-speed data transfer rate of up to 2GB/s, allows for additional customization and expansion. Directly installing a PCIe card enables the motherboard to run more complex and challenging tasks at the edge.

    Enhanced Stability and Easy Installation

    Both of the riser cards can be firmly secured to enhance stability by using the L-shaped bracket, in which screw holes are perfectly matched with those on the side of the heat spreader to make it simple and easy to install.

    DIMENSIONS

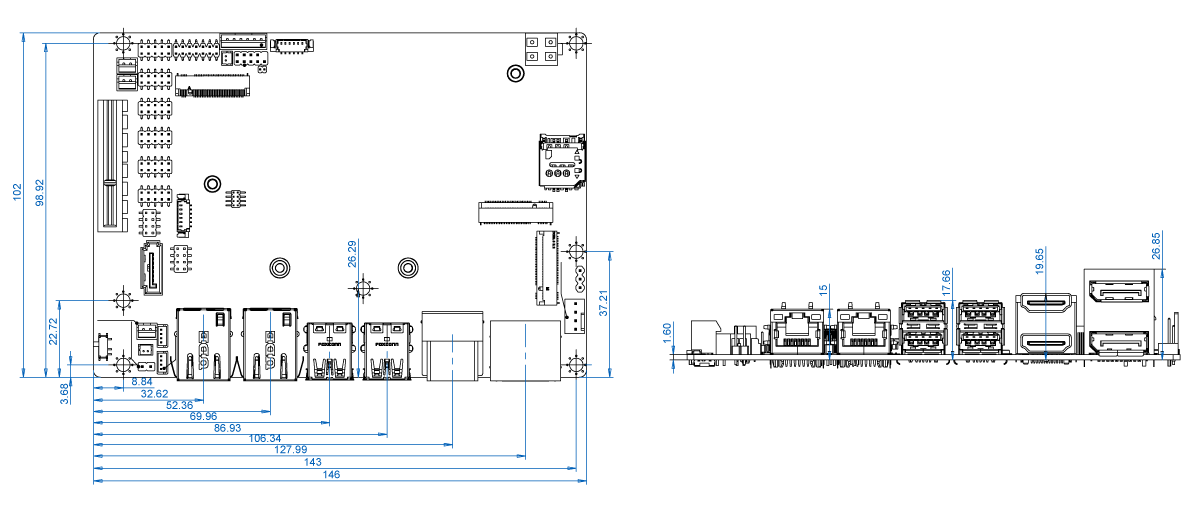

    WAFER-ADL-P

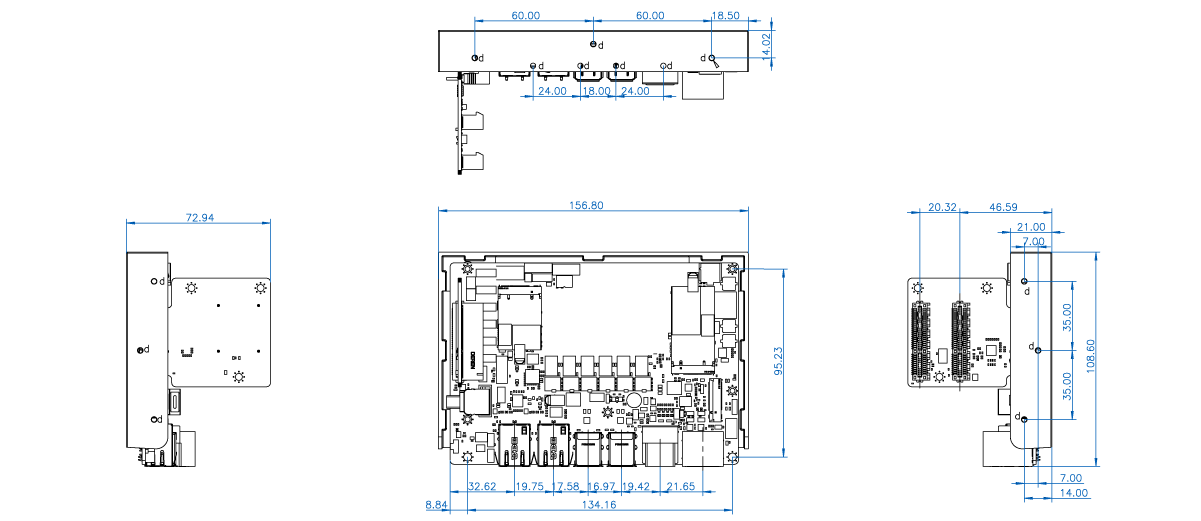

    SBC with Outwards Facing Riser Card

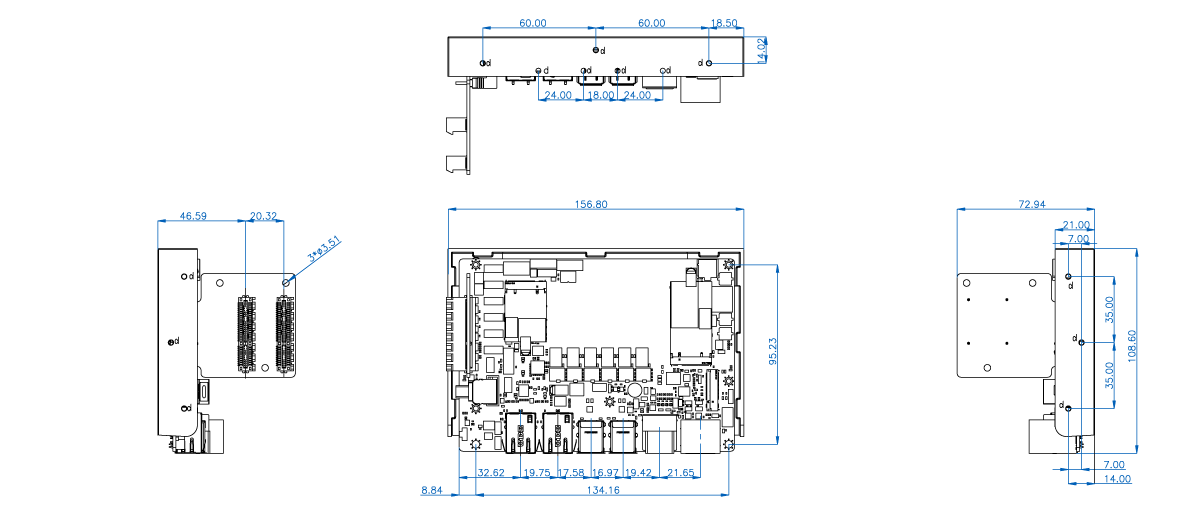

    SBC with Inwards Facing Riser Card

    SPECIFICATIONS

    System
    CPU 12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC
    Memory On-board LPDDR4x 3200 MHz 8GB up to 32GB
    Memory Max. 32GB
    Physical Characteristics
    Dimensions (LxWxH) (mm) 146mm x 102mm
    Net Weight 350g
    Storage
    Storage 1 x SATA : 6Gb/s
    1 x M.2(NGFF): M.2 M Key 2242/2280 (PCIe Gen3 x4)
    I/O Interface
    Display Output 2 x HDMI™: up to 4096×2160 @ 30Hz
    2 x Display Port: up to 4096 x 2160 @60Hz
    Ethernet 2 x LAN –
    LAN1: Intel® I225V/I226V 2.5GbE controller
    LAN2: Intel® I225V/I226V 2.5GbE controller
    Audio 1 x HD Audio: 1 x iAUDIO, support IEI AC-KIT-888S Audio Module (2×5 pin)
    I/O Interface 4 x Internal RS-232: 2×5 pin, P=2.0
    2 x Internal RS-232/422/485: 2×5 pin, P=2.0
    4 x Internal USB 2.0: 2×4 pin, P=2.0
    4 x External USB 3.2 Gen2x1: 10Gb/s(Type A)
    Expansion 1 x PCIe x4: PCIe Gen3 x4 (x4 & x2+x2)
    3 x M.2(NGFF) –
    1 x M.2 A Key 2230 for WIFI & BT (PCIe Gen3 x 1 & USB 2.0)
    1 x M.2 M Key 2242/2280 (PCIe Gen3 x4)
    1 x M.2 B Key 3042 (PCIe x2 & USB 2.0)
    1 x On-board SIM card socket (hinge type) for M.2 B key
    Power
    Power Consumption 12V@2.83A (12th Gen Intel® Core™ i7-1265UE CPU with 8 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode enabled)
    Power Supply ATX/AT power supply
    Support AT/ATX mode
    ErP/EuP Compliant
    Environment
    Operating Temperature -10°C ~ 60°C
    Storage Temperature -30°C ~ 70°C
    Humidity 5% ~95%, non-condensing

    ORDERING

    WAFER-ADL-P-i7C-R10 3.5 SBC supports Intel® Alder Lake-P Core™ i7-1255U Processor with 8GB LPDDR4x memory on board default, with DP, HDMI™, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS
    WAFER-ADL-P-i5C-R10 3.5 SBC supports Intel® Alder Lake-P Core™ i5-1235U Processor with 8GB LPDDR4x memory on board default, with DP, HDMI™, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS
    WAFER-ADL-P-i3C-R10 3.5 SBC supports Intel® Alder Lake-P Core™ i3-1215U Processor with 8GB LPDDR4x memory on board default, with DP, HDMI™, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS
    WAFER-ADL-P-CC-R10 3.5 SBC supports Intel® Alder Lake-P Celeron® 7305 SoC Processor with 8GB LPDDR4x memory on board default, with DP, HDMI™, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS

    PACKAGE CONTENTS

    Package Contents
    • 1 x WAFER-ADL-P single board computer
    • 1 x SATA cable
    • 1 x QIG

    The post WAFER-ADL-P – 3.5″ SBC supports Intel Core i7/i5/i3 and Celeron® processors appeared first on Miller Technologies.

    ]]>         WAFER-JL – 3.5＂SBC with Intel® 10nm Jasper Lake Celeron® N5105 Processor https://millertech.com/product/wafer-jl-3-5%ef%bc%82sbc-with-intel-10nm-jasper-lake-celeron-n5105-processor/?utm_source=rss&utm_medium=rss&utm_campaign=wafer-jl-3-5%25ef%25bc%2582sbc-with-intel-10nm-jasper-lake-celeron-n5105-processor Fri, 25 Feb 2022 18:45:25 +0000 https://millertech.com/?post_type=product&p=8985
  • Intel® Celeron® N5105 on-board SoC, 4 cores and 4 threads, 2.00GHz base frequency
  • Three Intel® I225V 2.5GbE ports
  • Two USB 3.2 Gen 2, two USB 2.0, two RS-232
  • M.2 A key and M.2 B key expansions
  • Supports dual independent display via HDMI and DP

    • The post WAFER-JL – 3.5＂SBC with Intel® 10nm Jasper Lake Celeron® N5105 Processor appeared first on Miller Technologies.

    ]]>     Compact. Power Efficiency.

    IEI WAFER-JL takes all the essential elements of the latest Intel® N5105 processor and combines them with smart manufacturing features and proven durability in the compact size 3.5″ form factor.

    It is ideal for space-constraints installation, notably AGVs, AMR (Autonomous Mobile Robot) and small cabinets in factories. It features complete I/O interfaces such as three 2.5 GbE LAN ports for motion control / IP cameras, an M.2 B-key with SIM slot for LTE cellular communication, and USB 3.2 Gen 1, DIO, serial ports for connecting sensors and communicating with other devices.

    Quad-Core Intel® Celeron®
    Processor N5105

    IEI WAFER-JL is a 3.5″ embedded board equipped with an Intel® Celeron® N5105 quad-core Jasper Lake processor supporting 4 cores, 4 threads, turbo up-to 2.60 GHz with L3 cache, and offering significant IPC (Instruction Per Clock) gains plus 35% performance improvement over the predecessor Gemini Lake based on same base frequency.

    Dual Independent Display

    Delivers HDMI+DP 4K Resolution for Real-time Monitoring

    HEVC 10-bit Decoding/Encoding

    Supports H.265/HEVC (High Efficiency Video Coding) 10-bit decoding/encoding to provide substantially improved video quality and higher bit depth video experience.

    Well-designed Thermal Solution

    IEI has developed a highly efficient thermal solution for the 3.5″ motherboard – IEI Heat Conduction Casing (IHCC). With its well-design structure, the IHCC can effectively improve heat transfer performance and cut time-to-market.

    High Speed Transmission

    M.2 2280 B key for PCIe 3.0 x2 NVMe SSD

    With the support of PCI Express 3.0 x2 M.2 SSDs, it is capable of delivering lightning fast data transfer experience for edge AI data process applications compared to the traditional SATA 6Gb/s.

    AI Accelerating

    The Mustang-M2BM-MX2 card equipped with two Intel® Movidius™ Myriad™ X VPU, providing an flexible AI inference computing.

    Networking

    Multi-tasking

    IEI WAFER-JL features unprecedented network connectivity with three rear 2.5 Gigabit LAN ports, and it is small enough to fit into any space confined situations.

    M.2 2230 A Key for Wi-Fi / Bluetooth

    The M.2 2230 A key slot carrying with PCIe 3.0 x1 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks.

    M.2 3042 B Key with SIM Slot for 4G LTE Cellular Communication

    The M.2 3042 B key connector supporting PCI Express 3.0 x2 and USB 2.0 signals allows you to use a dedicated 4G LTE radio frequency to ensure secure and delay-free data transmission in smart manufacturing.

    *Any 5G requirements, please contact us for support.

    SPECIFICATIONS

    Form Factor
    Form Factor 3.5＂ SBC
    System
    CPU Intel® Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
    Chipset Intel® Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
    Memory One 260-pin 2933 MHz DDR4 SO-DIMM support up to 16 GB
    Memory Max. up to 16 GB
    Cooling method / System Fan 1 x System fan connector (1×4 pin)
    Physical Characteristics
    Dimensions (LxWxH) (mm) 115mm x 165mm
    Net Weight 250g
    Storage
    Storage 1 x M.2(NGFF): 1 x M.2 B Key (3042/2280) w/ SIM holder (with PCIe Gen3 x2/USB2.0)
    1 x SATA
    I/O Interface
    Display Output 1 x Display Port: up to 4096 x 2160@60Hz
    1 x HDMI: up to 4096 x 2160@30Hz
    Ethernet 3 x LAN:
    LAN1: Intel® I225V 2.5GbE controller
    LAN2: Intel® I225V 2.5GbE controller
    LAN3: Intel® I225V 2.5GbE controller\
    Audio 1 x HD Audio: 1 x iAudio, support IEI AC-KIT-888S Audio Module (2 x 5 pin)
    I/O Interface 1 x DIO: 1 x 12-bit digital I/O (2×7 pin)
    2 x External USB 3.2 Gen2x1: 10Gb/s (Type-A)
    2 x Internal RS-232: 1×9 pin, P=1.25
    2 x Internal USB 2.0: 2×4 pin, P=2.0
    Expansion 2 x M.2(NGFF):
    1 x M.2 A key (2230, with PCIe Gen3 x1/USB 2.0)
    1 x M.2 B Key (3042/2280) w/ SIM holder (with PCIe Gen3 x2/USB2.0)
    Power
    Power Consumption 12V@2.45A (Intel® Pentium® Silver N6000 3.30 GHz TDP 6W with one 16GB 2933 DDR4 memory)
    Power Supply +12V DC input power (AT/ATX mode)
    Environment
    Operating Temperature 0°C ~ 60°C
    Storage Temperature -30°C ~ 70°C
    Humidity 5% ~95%, non-condensing
    Certifications
    Safety & EMC CE/FCC compliant

    ORDERING

    WAFER-JL-N5105-R10 3.5″ SBC with Intel® 10nm Jasper Lake Celeron® N5105 Processor with Dual Displays, DDR4, Triple Intel® 2.5 GbE, USB3.2, M.2, SATA, COM, SoC, RoHS

    Package Contents

    • 1 x WAFER-JL single board computer with Heatspreader
    • 1 x QIG
    • 1 x SATA with power cable kit

    The post WAFER-JL – 3.5＂SBC with Intel® 10nm Jasper Lake Celeron® N5105 Processor appeared first on Miller Technologies.

    ]]>         WAFER-ULT5 – 3.5” SBC Supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM https://millertech.com/product/wafer-ult5-3-5-sbc-supports-intel-8th-generation-whiskey-lake-processor-with-ddr4-so-dimm/?utm_source=rss&utm_medium=rss&utm_campaign=wafer-ult5-3-5-sbc-supports-intel-8th-generation-whiskey-lake-processor-with-ddr4-so-dimm Tue, 29 Jun 2021 13:23:39 +0000 https://millertech.com/?post_type=product&p=7956
  • 3.5” SBC supports Intel® 8th generation Whiskey Lake processor with DDR4 SO-DIMMs
  • Triple display with dual HDMI, LVDS selection
  • M.2 A Key, PCIe Mini slot with mSATA support
  • COM, USB 3.1 Gen2, SATA 6Gb/s support
  • Supports temperature operation: -20°C ~ 60°C

    • The post WAFER-ULT5 – 3.5” SBC Supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM appeared first on Miller Technologies.

    ]]>     3.5” SBC supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM, Triple display with dual HDMI 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s, COM and RoHS.

    SPECIFICATIONS

    System
    CPU 8th generation Intel® mobile ULT Processor
    Intel® Core™ i7-8665UE 1.7 GHz (up to 4.4GHz, Quad-core, 8MB cache, TDP=15W)
    Intel® Core™ i5-8365UE 1.6 GHz (up to 4.1GHz, Quad-core, 6MB cache, TDP=15W)
    Intel® Core™ i3-8145UE 2.2 GHz (up to 3.9GHz, Dual-core, 4MB cache, TDP=15W)
    Intel® Celeron® processor 4305UE (up to 2.0GHz, Dual-core, 2MB cache, TDP=15W)
    Intel® Celeron® processor 4205U (up to 1.8GHz, Dual-core, 2MB cache, TDP=15W)
    Memory 1 x DDR4 2400MHz SO-DIMM
    Memory Max. 32GB
    Physical Characteristics
    Dimensions (LxWxH) (mm) 115 X 165
    Net Weight 350g
    Storage
    Storage 1 x SATA :with 5V SATA power connector
    I/O Interface
    Display Output 2 x HDMI :1.4 (up to 4096×2160@30Hz)
    1 x LVDS :18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920×1200@60Hz)
    Ethernet 3 x LAN :2 x Intel I211AT (colay with I210);
    1 x PCIe GbE LAN Intel i219 Controller;
    Audio 1 x HD Audio :2×5 pin, support 7.1 channel HD audio by AC-KIT-892HD-R10
    I/O Interface 1 x Internal RS-232 :1×9 pin, P=1.25
    1 x Internal RS-232/422/485 :1×9 pin, P=1.25 (Support Auto Flow Control over RS-485)
    4 x External USB 3.2 Gen1x1
    2 x Internal USB 2.0 :2×4 pin, P=2.0
    Expansion 1 x PCIe mini Card Slot :Full-size (w/ SATA signal, support mSATA)
    1 x M.2(NGFF) :with A Key 2230
    Power
    Power Supply 12V DC input
    1 x Internal power connector (2×2 pin)
    Support AT/ATX mode
    Environment
    Operating Temperature -20°C ~ 60°C
    Storage Temperature -30°C ~ 70°C
    Humidity 5% ~95%, non-condensing

    ORDERING

    WAFER-ULT5-i7-R10 3.5″ SBC supports Intel® 14nm 8th Gen (ULT) Core™ i7-8665UE (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA , SATA 6Gb/s, dual COM, support Audio and RoHS
    WAFER-ULT5-i5-R10 3.5″ SBC supports Intel® 14nm 8th Gen (ULT) Core™ i5-8365UE (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS
    WAFER-ULT5-i3-R10 3.5″ SBC supports Intel® 14nm 8th Gen (ULT) Core™ i3-8145UE (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS
    WAFER-ULT5-CE-R10 3.5″ SBC supports Intel® 14nm 8th Gen (ULT) Celeron™4205U (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS
    WAFER-ULT5-C-R10 3.5″ SBC supports Intel® 14nm 8th Gen (ULT) Celeron™4305UE (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS

    Heat Sink Introduction

    Compared with heat sink, the standout of heat spreader is directly transferred the heat from CPU to the opposite direction of back cover. This solution allows products to fit in environment with space limitation and you could also attach the heat sink on the heat spreader as need. And this is the reason our customer wants to have heat spreader instead of heat sink. If you are interested in that info you can find more details in the product user manual

    Plus if your application is not suitable for heat spreader. Wafer ULT5 also provides our customers with a fanless heat sink module as an option. If those solutions still not good enough and you still want to have a different design. We would defiantly happy to customized a new thermal solution for our customer.

    The post WAFER-ULT5 – 3.5” SBC Supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM appeared first on Miller Technologies.

    ]]>         WAFER-ULT4 – 3.5” SBC supports Intel® 7th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support https://millertech.com/product/wafer-ult4/?utm_source=rss&utm_medium=rss&utm_campaign=wafer-ult4 Mon, 01 Jul 2019 14:43:10 +0000 https://millertech.com/?post_type=product&p=3454 FEATURES

    • 3.5” SBC with Intel® 7th Generation ULT processor supports DDR4 SO-DIMM (on-board memory support by request)
    • Triple display with VGA/iDP, HDMI and LVDS selection
    • Two PCIe Mini with mSATA/SIM card slot support
    • Intel® GbE LAN with Intel® AMT 11.0 supported
    • One Key Recovery solution allows you to create rapid OS backup and recovery

    The post WAFER-ULT4 – 3.5” SBC supports Intel® 7th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support appeared first on Miller Technologies.

    ]]>     3.5” SBC supports Intel® 7th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support.

    SPECIFICATIONS

    System
    CPU 7th generation Intel® mobile ULT processor
    Intel® Core™ i7-7600U (up to 3.9GHz, dual-core, 4MB cache, TDP=15W)
    Intel® Core™ i5-7300U (up to 3.5GHz, dual-core, 3MB cache, TDP=15W)
    Intel® Core™ i3-7100U (up to 2.4GHz, dual-core, 3MB cache, TDP=15W)
    Memory Max. 1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB)
    On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
    I/O Interface
    Ethernet 1 x Intel® I219LM
    1 x Intel® I211AT
    Digital I/O 1 x 8-bit digital I/O (2×5 pin)
    Display Triple independent display
    1 x VGA (up to 1920×1200@60Hz)
    1 x HDMI (up to 4096×2160@30Hz)
    1 x 18/24-bit dual-channel LVDS (up to 1920×1200@60Hz)
    1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
    Audio 1 x HD audio (2×5 pin, supports 7.1-channel HD audio by AC-KIT-892HD-R10)
    Expansion 1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA)
    1 x Full-size PCIe Mini slot (w/ SIM card slot support)
    *3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.
    Power
    Power consumption 12V@4.27A (Intel® Core™ i7-6600U up to 3.4GHz CPU with 16GB 2133MHz DDR4 memory running in 3.0GHz)
    Power Supply 12V only DC input
    1 x Internal power connector (2×2 pin, or optional terminal block)
    Environment
    Operating Temperature -20°C ~ 60°C
    Safety & EMC CE/FCC compliant
    Humidity 5% ~ 95%, non-condensing
    Storage Temperature -20°C ~ 60°C
    Dimensions
    Dimensions 146mm x 102mm
    Weight
    Weight GW: 600g / NW: 250g
    Watchdog Timer
    Watchdog Timer Software programmable, supports 1~255 sec. system reset
    I/O Interface
    I/O Interface 4 x USB 3.0(External I/O)
    2 x Internal USB 2.0(2×4 pin, P=2.0)
    2 x Internal RS-232/422/485(1×9 pin, P=1.25)
    1 x SMBus (1×4 pin, P=2.0)
    1 x SATA 6Gb/s(6Gb/s with 5V SATA power connector)

    ORDERING

    WAFER-ULT4-i5-R10 3.5″ SBC supports Intel® 7th Generation ULT Core™ i5-7300U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS

    The post WAFER-ULT4 – 3.5” SBC supports Intel® 7th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support appeared first on Miller Technologies.

    ]]>         WAFER-ULT3 – 3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support https://millertech.com/product/wafer-ult3/?utm_source=rss&utm_medium=rss&utm_campaign=wafer-ult3 Mon, 01 Jul 2019 14:38:02 +0000 https://millertech.com/?post_type=product&p=3452 FEATURES

    • 3.5” SBC with Intel® 6th Generation ULT processor supports DDR4 SO-DIMM (on-board memory support by request)
    • Triple display with VGA/iDP, HDMI and LVDS selection
    • Two PCIe Mini with mSATA/SIM card slot support
    • Intel® GbE LAN with Intel® AMT 11.0 supported
    • One Key Recovery solution allows you to create rapid OS backup and recovery

    The post WAFER-ULT3 – 3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support appeared first on Miller Technologies.

    ]]>     3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support.

    SPECIFICATIONS

    System
    CPU 6th generation Intel® mobile ULT processor
    Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
    Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
    Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
    Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
    Intel® Celeron® processor 3855U (up to 1.6GHz, dual-core, 2MB cache, TDP=15W)
    Memory Max. 1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB)
    On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
    I/O Interface
    Ethernet 1 x Intel® I219LM
    1 x Intel® I211AT
    Digital I/O 1 x 8-bit digital I/O (2×5 pin)
    Display Triple independent display
    1 x VGA (up to 1920×1200@60Hz)
    1 x HDMI (up to 4096×2160@30Hz)
    1 x 18/24-bit dual-channel LVDS (up to 1920×1200@60Hz)
    1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
    Audio 1 x HD audio (2×5 pin, supports 7.1-channel HD audio by AC-KIT-892HD-R10)
    Expansion 1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA)
    1 x Full-size PCIe Mini slot (w/ SIM card slot support)
    *3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.
    Power
    Power consumption 12V@4.27A (Intel® Core™ i7-6600U up to 3.4GHz CPU with 16GB 2133MHz DDR4
    memory running in 3.0GHz)
    Power Supply 12V only DC input
    1 x Internal power connector (2×2 pin, or optional terminal block)
    Environment
    Operating Temperature -20°C ~ 60°C
    Safety & EMC CE/FCC compliant
    Humidity 5% ~ 95%, non-condensing
    Storage Temperature -20°C ~ 60°C
    Dimensions
    Dimensions 146mm x 102mm
    Weight
    Weight GW: 600g / NW: 250g
    Watchdog Timer
    Watchdog Timer Software programmable, supports 1~255 sec. system reset
    I/O Interface
    I/O Interface 4 x USB 3.0(External I/O)
    2 x Internal USB 2.0(2×4 pin, P=2.0)
    2 x Internal RS-232/422/485(1×9 pin, P=1.25)
    1 x SMBus(1×4 pin, P=2.0)
    1 x SATA 6Gb/s(6Gb/s with 5V SATA power connector)

    ORDERING

    WAFER-ULT3-C-R10 3.5″ SBC supports Intel® 6th Generation ULT Celeron® 3955U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS
    WAFER-ULT3-i3-R10 3.5″ SBC supports Intel® 6th Generation ULT Core™ i3-6100U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS
    WAFER-ULT3-i7-R10 3.5″ SBC supports Intel® 6th Generation ULT Core™ i7-6600U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS
    WAFER-ULT3-i5-R10 3.5″ SBC supports Intel® 6th Generation ULT Core™ i5-6300U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS
    WAFER-ULT3-CE-R10 3.5″ SBC supports Intel® 6th Generation ULT Celeron® 3855U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS

    The post WAFER-ULT3 – 3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support appeared first on Miller Technologies.

    ]]>         WAFER-ULT-i1 – 3.5” SBC supports Intel® 22nm 4th/ 14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT) https://millertech.com/product/wafer-ult-i1/?utm_source=rss&utm_medium=rss&utm_campaign=wafer-ult-i1 Mon, 01 Jul 2019 14:33:04 +0000 https://millertech.com/?post_type=product&p=3450 FEATURES

    • 3.5 form factor with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L DIMMs
    • 12V only single voltage design with AT/ATX mode support
    • 18/24-bit dual-channel LVDS support
    • Support triple independent display via LVDS, VGA and iDP
    • Support PCIe Mini card slot for mSATA, 3G card, wireless card and DOM

    The post WAFER-ULT-i1 – 3.5” SBC supports Intel® 22nm 4th/ 14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT) appeared first on Miller Technologies.

    ]]>     3.5” SBC supports Intel® 22nm 4th/ 14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT).

    SPECIFICATIONS

    Display
    Display Triple independent display
    VGA (up to 2560×1600@60 Hz)
    18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920×1200@60Hz)
    iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840×2160@60 Hz)
    Environment
    Humidity 5% ~ 95%, non-condensing
    Operating Temperature -10°C ~ 60°C
    Expansion Slots
    Expansion Slots 1 x Full-size PCIe Mini card slot (mSATA support)
    I/O Interface
    Audio Realtek ALC662 HD Audio codec
    1 x Analog audio (2×5 pin)
    Digital I/O 1 x 8-bit digital I/O (2×5 pin)
    Ethernet LAN1: Intel® I218LM PHY with Intel® AMT 9.0 support
    LAN2: Intel® I210-AT PCIe controller with NCSI support
    I/O Interface
    I/O Interface 2 x USB 2.0
    2 x RS-232
    1 x RS-422/485
    1 x KB/MS
    Option
    iRIS 1 x iRIS-1010 slot
    Power
    Power consumption 12V@2.72A (Intel® Core™ i5-4300U CPU with two 8 GB 1600 MHz DDR3 memory)
    Storage
    Storage 2 x SATA 6Gb/s with 5V power connector (RAID 0, 1)
    System
    CPU » 5th generation Intel® mobile ULT on-board SoC
    Intel® Core™ i7-5650U (2.2GHz, dual-core, 4MB cache, TDP=15W)
    Intel® Core™ i5-5350U (1.8GHz, dual-core, 3MB cache, TDP=15W)
    Intel® Core™ i3-5010U (2.1GHz, dual-core, 3MB cache, TDP=15W)
    Intel® Celeron® processor 3765U (1.9GHz, dual-core, 2MB cache, TDP=15W)
    » 4th generation Intel® mobile ULT on-board SoC
    Intel® Core™ i7-4650U (1.7GHz, dual-core, 4MB cache, TDP=15W)
    Intel® Core™ i5-4300U (1.9GHz, dual-core, 3MB cache, TDP=15W)
    Intel® Core™ i3-4010U (1.7GHz, dual-core, 3MB cache, TDP=15W)
    Intel® Celeron® processor 2980U (1.6GHz, dual-core, 2MB cache, TDP=15W)
    Memory Max. Two 204-pin 1600/1333 MHz dual-channel DDR3L SDRAM SO-DIMM slots support up to 16 GB

    ORDERING

    WAFER-ULT-i1-i7-R11 3.5″ SBC with Intel 22nm 4th Gen ULT Mobile Core i7-4650U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS
    WAFER-ULT-i1-C-R11 3.5″ SBC with Intel 22nm 4th Gen ULT Mobile Celeron 2980U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS
    WAFER-ULT-i1-i3-R11 3.5″ SBC with Intel 22nm 4th Gen ULT Mobile Core i3-4010U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS
    WAFER-ULT-i1-i5-R11 3.5″ SBC with Intel 22nm 4th Gen ULT Mobile Core i5-4300U processor(ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS

    The post WAFER-ULT-i1 – 3.5” SBC supports Intel® 22nm 4th/ 14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT) appeared first on Miller Technologies.

    ]]>         WAFER-BW – 3.5” SBC with Intel® 14nm Pentium®/Celeron® on-board SoC https://millertech.com/product/wafer-bw/?utm_source=rss&utm_medium=rss&utm_campaign=wafer-bw Mon, 01 Jul 2019 14:26:30 +0000 https://millertech.com/?post_type=product&p=3448 FEATURES

    • 3.5"" SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC
    • Triple independent display support
    • 1.35V DDR3L 1333/1600 MHz SDRAM up to 8 GB
    • COM, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA and Audio support
    • Two full-size PCIe Mini slots (one with SIM holder for WLAN/WWAN expansion)
    • One Key Recovery solution allows you to create rapid OS backup and recovery

    The post WAFER-BW – 3.5” SBC with Intel® 14nm Pentium®/Celeron® on-board SoC appeared first on Miller Technologies.

    ]]>     3.5” SBC with Intel® 14nm Pentium®/Celeron® on-board SoC.

    SPECIFICATIONS

    Dimensions
    Dimensions 146mm x 102mm
    Display
    Display Output Triple independent display
    2 x HDMI (up to 3840×2160@30Hz)
    1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to
    1920×1200@60Hz)
    Environment
    Operating Temperature -20°C ~ 60°C
    Humidity 5% ~ 95%, non-condensing
    Expansion Slots
    Expansion Slots 2 x Full/Half-size PCIe Mini card slot (1 w/ SIM holder) (1 w/ mSATA support: share SATA signal from SATA2)
    I/O Interface
    Ethernet LAN1: Realtek RTL8111GN controller
    LAN2: Realtek RTL8111GN controller
    Digital I/O 1 x 8-bit digital I/O (1×10 pin, P=1.25)
    Audio Realtek ALC662 HD codec
    1 x Analog audio (2×5 pin)
    Other On-board Devices and Interfaces 1 x eMMC4.51 (optional)
    I/O Interface
    I/O Interface 1 x I²C((1 x 4 pin))
    1 x SMBus ((1 x 4 pin))
    2 x SATA 6Gb/s(with 5V SATA power connector (no RAID))
    3 x Internal RS-232((1 x 9 pin, P=1.25))
    4 x Internal USB 2.0((2 x 4 pin, P=2.0))
    2 x Internal RS-232/422/485(2 by pin header; 1×9 pin, P=1.25)
    SMBus ((1 x 4 pin))
    1 x KB/MS((1 x 6 pin))
    Power
    Power consumption 12V@1.52A (Intel® Pentium® processor N3710 with 8 GB 1600 MHz DDR3L memory)
    Power Supply 12V only DC input
    1 x Internal power connector (2×2 pin)
    Support AT/ATX mode
    System
    CPU Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
    Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
    Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
    Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)
    Memory Max. One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
    supports up to 8 GB
    Weight
    Weight GW:600g, NW: 250g

    ORDERING

    WAFER-BW-N2-R10 3.5” SBC supports Intel® Celeron® dual-core processor N3060 up to 2.48GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS
    WAFER-BW-N3-R10 3.5” SBC supports Intel® Celeron® quad-core processor N3160 up to 2.24GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS
    WAFER-BW-N4-R10 3.5” SBC supports Intel® Pentium® quad-core processor N3710 up to 2.56GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS

    The post WAFER-BW – 3.5” SBC with Intel® 14nm Pentium®/Celeron® on-board SoC appeared first on Miller Technologies.

    ]]>         WAFER-BT-E38001W2 – 3.5” SBC with Intel® 22nm Atom™ SoC https://millertech.com/product/wafer-bt-e38001w2/?utm_source=rss&utm_medium=rss&utm_campaign=wafer-bt-e38001w2 Mon, 01 Jul 2019 14:20:51 +0000 https://millertech.com/?post_type=product&p=3446 FEATURES

    • 3.5” SBC supports Intel® 22nm Atom™ on-board SoC
    • Dual independent display support
    • On-board 2 GB/4 GB 1066/1333 MHz DDR3L memory
    • COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support
    • Supports -40°C ~ 85°C
    • One Key Recovery solution allows you to create rapid OS backup and recovery

    The post WAFER-BT-E38001W2 – 3.5” SBC with Intel® 22nm Atom™ SoC appeared first on Miller Technologies.

    ]]>     3.5” SBC with Intel® 22nm Atom™ SoC.

    SPECIFICATIONS

    CPU Cooler
    CPU Cooler N/A
    Display
    Display Dual independent display
    VGA (up to 2560×1600@60Hz)
    18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920×1200@60Hz)
    Environment
    Humidity 5% ~ 95%, non-condensing
    Operating Temperature -40°C ~ 85°C
    Expansion Slots
    Expansion Slots 2 x Full-size PCIe Mini card slot (one with SIM holder)
    I/O Interface
    Audio Realtek ALC662 HD Audio codec
    1 x Analog audio (2×5 pin)
    Digital I/O 1 x 8-bit digital I/O (2×5 pin)
    Ethernet LAN1: Intel® I210-IT PCIe controller
    LAN2: Intel® I210-IT PCIe controller
    I/O Interface
    I/O Interface 1 x USB 2.0
    1 x USB 3.0
    1 x Internal RS-232
    4 x Internal USB 2.0
    1 x RS-232
    Power
    Power consumption 12V@1.32A (Intel® Atom™ processor E3845 with on-board 2 GB 1333 MHz DDR3L
    memory)
    Storage
    Storage 2 x SATA 3Gb/s with 5V SATA power connector (no RAID)
    1 x mSATA colay SATA2
    System
    CPU Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
    Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
    Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
    Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
    Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
    Memory Max. 4 GB solder-down 1066/1333 MHz DDR3L memory (for E3845)
    2 GB solder-down 1066/1333 MHz DDR3L memory (for E3825)
    Watchdog Timer
    Watchdog Timer Software programmable supports 1~255 sec. system reset

    ORDERING

    WAFER-BT-E38451W2-R10 3.5” SBC with Intel 22nm Atom quad-core E3845 1.91GHz (10W) on-board SoC support -40°C ~ 85°C, 4GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
    WAFER-BT-E38271W2-R10 3.5″ SBC with Intel 22nm Atom dual-core E3827 1.75GHz (8W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
    WAFER-BT-E38251W2-R10 3.5″ SBC with Intel 22nm Atom dual-core E3825 1.33GHz (6W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
    WAFER-BT-E38261W2-R10 3.5″ SBC with Intel 22nm Atom dual-core E3826 1.46GHz (7W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
    WAFER-BT-E38151W2-R10 3.5″ SBC with Intel 22nm Atom single-core E3815 1.46GHz (5W) on-board SoC support -40°C ~ 85°C, 2GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS

    The post WAFER-BT-E38001W2 – 3.5” SBC with Intel® 22nm Atom™ SoC appeared first on Miller Technologies.

    ]]>         WAFER-AL – 3.5＂SBC supports Intel® Apollo Lake Atom™ / Celeron® / Pentium on-board SoC with DP++/VGA/LVDS/iDP support https://millertech.com/product/wafer-al/?utm_source=rss&utm_medium=rss&utm_campaign=wafer-al Mon, 01 Jul 2019 14:12:14 +0000 https://millertech.com/?post_type=product&p=3444 FEATURES

    • 3.5＂ SBC with Intel® Apollo Lake platform on-board SoC
    • One SO-DIMM DDR3L 1867/1600MHz support up to system maximum 8GB
    • Triple displays with 1 x DP++, 1 x VGA / 1 x iDP, 1 x LVDS selection
    • High speed I/O interface for USB 3.0, SATA 6Gb/s
    • PCIe Mini with mSATA support

    The post WAFER-AL – 3.5＂SBC supports Intel® Apollo Lake Atom™ / Celeron® / Pentium on-board SoC with DP++/VGA/LVDS/iDP support appeared first on Miller Technologies.

    ]]>     3.5＂SBC supports Intel® Apollo Lake Atom™ / Celeron® / Pentium on-board SoC with DP++/VGA/LVDS/iDP support

    SPECIFICATIONS

    Display
    Display Output Triple independent display
    1 x DP++ (up to 4096×2160@60Hz)
    1 x VGA (up to 1920×1200@60Hz)
    1 x LVDS: 18/24-bit dual-channel LVDS (up to 1920×1200@60Hz)
    1 x iDP (colay with VGA, support by request)
    System
    CPU Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
    Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
    Intel® Atom™ E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)
    Intel® Atom™ E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)
    Intel® Atom™ E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)
    Memory Max. One 204-pin 1866/1600MHz Single-channel DDR3L DIMMs support up to 8GB
    Graphcis Controller Intel® HD Graphics Gen9 Low Power; 18 Execution Units
    4K Codec Decode & Encode for HEVC 4, H.264, VP8, SVC, MVC
    I/O Interface
    Expansion 1 x Full/Half-size PCIe Mini slot (supports mSATA, colay with SATA port 2)
    1 x Full/Half-size PCIe Mini slot (supports SIM card holder)
    Power
    Power consumption 12V@2.57A (Intel® Pentium® N4200 up to 2.5GHz with 8GB DDR3L memory)
    Power Supply +12V DC input power (AT/ATX mode)
    Environment
    Operating Temperature -20°C ~ 70°C
    Safety & EMC CE/FCC compliant
    Humidity 5% ~ 95%, non-condensing
    Storage Temperature -20°C ~ 70°C
    Dimensions
    Dimensions 146 x 102 (mm)
    Weight
    Weight 600g / NW: 250g
    Note
    Note 1 x TPM (2×10 pin)
    Watchdog Timer
    Watchdog Timer Software programmable, supports 1~255 sec. system reset
    CPU Cooler
    CPU Cooler 1 x System fan connector (1×4 pin)
    BIOS
    BIOS AMI UEFI BIOS
    HW Monitor
    HW Monitor * Front Panel
    1 x Power LED & HDD LED (1×6 pin)
    1 x Power button (1×2 pin)
    1 x Reset button (1×2 pin)
    * LAN LED
    2 x LAN LED (1×2 pin)
    I/O Interface
    I/O Interface 2 x USB 3.0(External)
    Audio Codec(Realtek ALC662 HD codec)
    1 x Audio(Front, 2×5 pin)
    2 x SATA 6Gb/s(with 5V SATA power connector – no RAID)
    1 x Digital I/O(8-bit, 2×5 pin)
    2 x Internal RS-232(1×9 pin, P=1.25)
    4 x Internal USB 2.0(2×4 pin, P=2.0)
    2 x Internal RS-232/422/485(1×9 pin, P=1.25)
    1 x SMBus(1×4 pin, P=2.0)
    2 x Ethernet(PCIe GbE LAN Realtek RTL8111 Controller)

    ORDERING

    WAFER-AL-N1-R10
    3.5″ SBC supports Intel® 14nm dual-core Celeron® N3350 2.4GHz on-board SoC with VGA, DP++, LVDS triple display, Dual PCIe GbE, USB 3.0, PCIe Mini with mSATA support, SATA 6Gb/s, COM, Audio and RoHS

    WAFER-AL-N2-R10
    3.5″ SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz on-board SoC with VGA, DP++, LVDS triple display, Dual PCIe GbE, USB 3.0, PCIe Mini with mSATA support, SATA 6Gb/s, COM, Audio and RoHS

    The post WAFER-AL – 3.5＂SBC supports Intel® Apollo Lake Atom™ / Celeron® / Pentium on-board SoC with DP++/VGA/LVDS/iDP support appeared first on Miller Technologies.

    ]]>         WAFER-BT – 3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC https://millertech.com/product/wafer-bt/?utm_source=rss&utm_medium=rss&utm_campaign=wafer-bt Thu, 02 May 2019 15:28:59 +0000 https://millertech.com/?post_type=product&p=719 FEATURES

    • 3.5” SBC supports Intel® 22nm Atom™ on-board SoC
    • Dual independent display support
    • 1333/1066 MHz 1.35V DDR3L SDRAM up to 8 GB
    • COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support
    • One Key Recovery solution allows you to create rapid OS backup and recovery

    The post WAFER-BT – 3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC appeared first on Miller Technologies.

    ]]>     3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.2 Gen 1 (5Gb/s), PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS.

    SPECIFICATIONS

    Display
    Display Dual display supported
    1 x VGA (Resolution: 2560×1600@60Hz)
    1 x dual channel 24bit LVDS connector
    (1920×1200@60Hz)
    1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560×1600@60Hz)
    System
    CPU Intel® Atom™, Celeron® SoC
    Chipset Intel® Atom™/Celeron® on-board SoC
    Memory Max. One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot
    supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
    I/O Interface
    I/O Interface 3 x RS-232
    1 x RS-422/485
    1 x USB 3.0
    5 x USB 2.0
    1 x PS/2 KB/MS
    Ethernet LAN1: IntelR I210-AT PCIe controller with NCSI support
    LAN2: IntelR I211-AT PCIe controller
    Digital I/O 8-bit digital I/O (4-bit input / 4-bit output)
    Audio Realtek ALC662 HD Audio codec
    I/O Interface
    I/O Interface 2 x Internal RS-232
    4 x Internal USB 2.0
    3 x RS-232
    1 x RS-422/485
    5 x USB 2.0
    1 x USB 3.0
    Power
    Power consumption 12V@1.45A (IntelR CeleronR Processor J1900 CPU, with 8GB 1333 MHz DDR3L memory)
    Environment
    Operating Temperature -20¢XC ~ 60¢XC
    Humidity 5% ~ 95%, non-condensing
    Storage
    Storage 2 x SATA 3Gb/s with 5V SATA power connector (no RAID)
    Expansion Slots
    Expansion Slots 1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)
    1 x Half-size PCIe mini card slot
    Watchdog Timer
    Watchdog Timer Software programmable and supports 1~255 sec. system reset
    CPU Cooler
    CPU Cooler N/A

    ORDERING

    WAFER-BT-J19001-ECO-R20 3.5″ SBC supports Intel® 22nm Quad-Core Celeron™ J1900 2.0GHz (10W)on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio, ECO packing and RoHS
    WAFER-BT-J19001-R20 3.5″ SBC supports Intel® 22nm Quad-Core Celeron™ J1900 2.0GHz (10W)on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
    WAFER-BT-N28071-R20 3.5″ SBC supports Intel® 22nm Dual-Core Celeron™ N2807 1.58GHz (4.5W) on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
    WAFER-BT-N29301-R20 3.5″ SBC supports Intel® 22nm Quad-Core Celeron™ N2920 1.86GHz (7.5W) on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS

    The post WAFER-BT – 3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC appeared first on Miller Technologies.

    ]]>
