  • 15.6” PCAP Touchscreen Display
  • Windows 11 Capabilities
  • Intel 11th Generation Core Processor Passmark Rating 5820
  • VESA Mountable and updated Panel Mount design
  • Thin, sleek design

    • The post TP-5945-16 – 15.6″ Fanless Touch Screen Panel PC with Intel Core I Series 11th Gen CPU appeared first on Miller Technologies.

    ]]>     The 16” Touch Screen Panel PC has a sleek design, with no exposed metal on the front bezel, creating a seamless wall-mount appearance. Beyond aesthetics, the TP-5945-16 thrives on the power of the Intel 11th generation processor, ensuring smooth Windows 11 operation. PCAP technology ensures accurate and responsive touch functionality. Its innovative two-piece construction enables the box to be removed from the front panel, allowing for easy maintenance. The 16” Touch Screen Panel PC excels in industrial applications like production floors and workstations.

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Core I series 11th Generation Tiger Lake
    Processor Model Core i3-1115G4E, Core i5 1145G7E
    Memory Type 2x DDR4 SO-DIMM
    Memory Support 4GB, 8GB, 16GB, 32GB
    Storage type 1x M.2 2280 NVME SSD slot
    Storage support M.2: 256GB-1TB

    Display

    Screen Size 15.6″
    Resolution 1920 x 1080 (Full HD)
    Screen Ratio 16:9
    Brightness 500 nits, Optional 1000 nit High Brightness

    Touch Screen

    Touch Screen Projected Capacitive (Multi-touch)

    External I/O ports

    USB 4x USB 3.2
    Serial / Com 1x COM
    Serial Protocol Detail Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2)
    Ethernet / LAN 2x RJ45 GbE LAN
    Video Outputs 1x DisplayPort
    Other Ports 1x 2-Pin DC Power Switch Connector
    Audio 1x Audio Line-Out
    Power Input Port 3-Pin DC-In (Phoenix Type)

    Power

    Input Voltage Range 9-36V DC
    Max Power consumption 80W

    Operating Systems

    Windows Windows 11 Pro, Windows 10 IoT, Windows 10 Pro
    Linux Linux Ubuntu 20.04 or above

    Compatibility

    Security Hardware fTPM 2.0

    Expansion Slots

    Internal Mini PCIe 1x Mini-PCIe
    Internal M.2 1x M.2 2230 Key E (for WiFi expansion option)

    Thermal and Environmental

    Operating Temperature 0°C – 50°C, Optional -20°C – 60°C
    (32°F – 122°F; Optional -4°F – 140°F)
    Storage Temperature -30°C – 70°C
    (-22°F – 158°F)
    Humidity Range 5% – 95% Non-condensing
    Cooling Solution Passive – Fanless

    Enclosure

    Material Aluminum
    Ip Rating IP66 Front Bezel
    Color Black
    Mounting Options Panel Mount, VESA 100 Mount

    Peripherals & Wireless Connectivity

    WiFi Optional 802.11 b/g/n/ac
    BlueTooth Optional Bluetooth 5.1

    Dimensions / Weight

    Weight 3.7 KG (8.2 lbs)
    Dimensions 405x256x59 mm (15.9 x 10.1 x 2.3 in)

    Warranty

    Warranty Up to 5 Years

    The post TP-5945-16 – 15.6″ Fanless Touch Screen Panel PC with Intel Core I Series 11th Gen CPU appeared first on Miller Technologies.

    ]]>         TP-5645-16 – 15.6″ Panel Mount PC with Core i3 8145UE or Core i5-8365UE CPU https://millertech.com/product/tp-5645-16-15-6-panel-mount-pc-with-core-i3-8145ue-or-core-i5-8365ue-cpu/?utm_source=rss&utm_medium=rss&utm_campaign=tp-5645-16-15-6-panel-mount-pc-with-core-i3-8145ue-or-core-i5-8365ue-cpu Wed, 22 Feb 2023 16:50:06 +0000 https://millertech.com/?post_type=product&p=10449
  • Intel 8th Gen. Core i3/i5 CPU
  • Easily accessible M.2 storage, up to 1TB
  • Fanless Cooling System
  • 15.6" P-Cap or Resistive Touchscreen
  • Wide Range 9~36VDC Power Input
  • IP66 Protected Front with Aluminum Housing
  • UL 62368 Certified

    • The post TP-5645-16 – 15.6″ Panel Mount PC with Core i3 8145UE or Core i5-8365UE CPU appeared first on Miller Technologies.

    ]]>     The TP-5645-16 Panel Mount Computer offers a unique thermal design, including a rugged die cast aluminum enclosure for fanless operation and durability in high shock and vibration settings. The front bezel is IP66 rated for protection from water and dust and uses a full flat design to prevent build-up of particulates on the front surface. A high-brightness touchscreen option can be chosen for environments with low screen visibility. Advanced processing power from the latest Intel 8th generation core i3/i5 CPUs has long life cycle support. With up to 16GB of DDR4 memory, the TP-5645-16 Panel Mount Computer is a great solution for most Windows or Linux based applications. Easily accessible M.2 storage can be configured as high as 512GB. The TP-5645-16 is great solution for applications such as a data hub for your IoT / IIoT sensors and to run your ERP (Enterprise Resource Planning) software.

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Celeron or Core i 8th Generation Whiskey Lake
    Processor Model Core i3 8145UE, Core i5-8365UE
    Processor Speed 2.2 GHz
    Memory Type 1x DDR4 SO-DIMM
    Memory Support 4GB, 8GB, 16GB, 32GB
    Storage type 1x M.2 M Key, PCIe or SATA, 2242 NVME support
    Storage support M.2: 128GB-1TB

    Display

    Screen Size 15.6″
    Resolution 1920 x 1080 (Full HD)
    Screen Ratio 16:9
    Brightness 450 nits, Optional 1000 nit High Brightness
    Contrast Ratio 800:1
    Viewing Angle 160º (H), 170º (V), 160º (H), 170º (V) High Brightness
    Number of Colors Supported 16.7M

    Touch Screen

    Touch Screen Projected Capacitive, Resistive
    Light Transmission Over 80% (Resistive), Over 90% (P-Cap)
    Lifetime Usage 50,000 hrs, 50,000 hrs (High Brightness)

    External I/O ports

    USB 4x USB 3.0
    Serial / Com 1x COM
    Serial Protocol Detail 1x RS-232/422/485 DB-9, default RS-232
    Ethernet / LAN 2x RJ45 GbE LAN
    Video Outputs 1x DisplayPort
    Other Ports 1x 2-Pin DC Power Switch Connector
    Audio 1x 3.5mm Audio Line-Out
    Power Input Port DC-in Jack (Phoenix Type), 2-Pin Power Switch

    Power

    Input Voltage Range 9-36V DC
    Max Power consumption 59W
    Standard Power Adapter Optional 12V 5A AC/DC Adapter

    Battery

    Type Optional Internal Battery
    Operating Time 20min
    Quantity 1x Optional Battery

    Operating Systems

    Windows Windows 11, Windows 10 IoT
    Linux Yocto Linux, Linux Ubuntu 20.04 or above

    Compatibility

    Security Hardware TPM 2.0

    Expansion Slots

    Internal Mini PCIe 1x Mini-PCIe
    Internal M.2 1x M.2 for NVME SSD Support

    Multimedia

    Speakers Optional Speaker

    Thermal and Environmental

    Operating Temperature 0°C – 50°C
    (32°F – 122°F)
    Storage Temperature -20°C – 60°C
    (-4°F – 140°F)
    Humidity Range 10% – 95% Non-condensing
    Cooling Solution Passive – Fanless with Heatsink

    Enclosure

    Material Aluminum
    Ip Rating IP66 Front Bezel
    Color Gray
    Led Indicator Light Power
    Mounting Options Panel Mount, VESA Mount

    Dimensions / Weight

    Weight 4.32 KG (9.5 lbs)
    Dimensions 412×277.5×58.9 mm (16.2 x 10.9 x 2.3 in)

    Certification

    Certifications CE, FCC Class A, UL 62368

    Warranty

    Warranty 1 Year

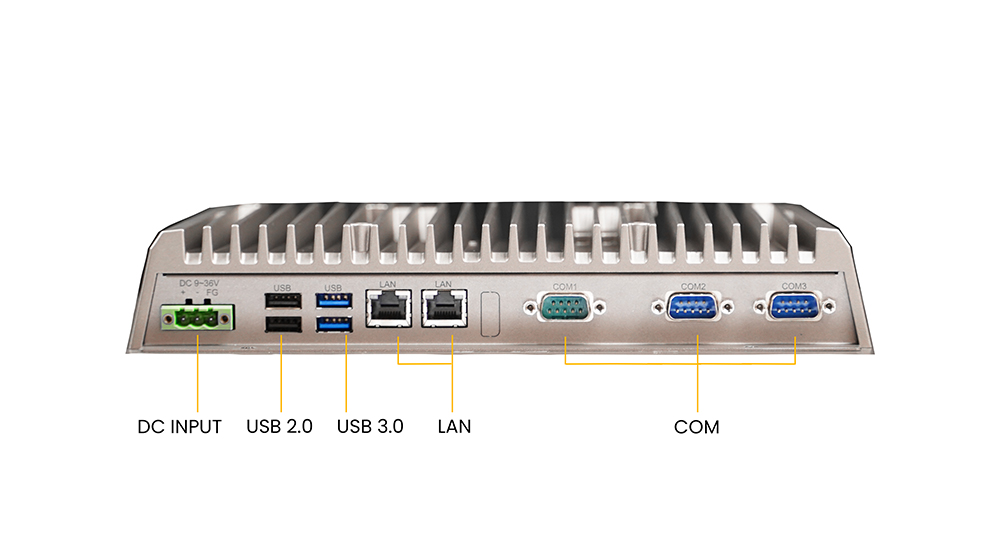

    I/O

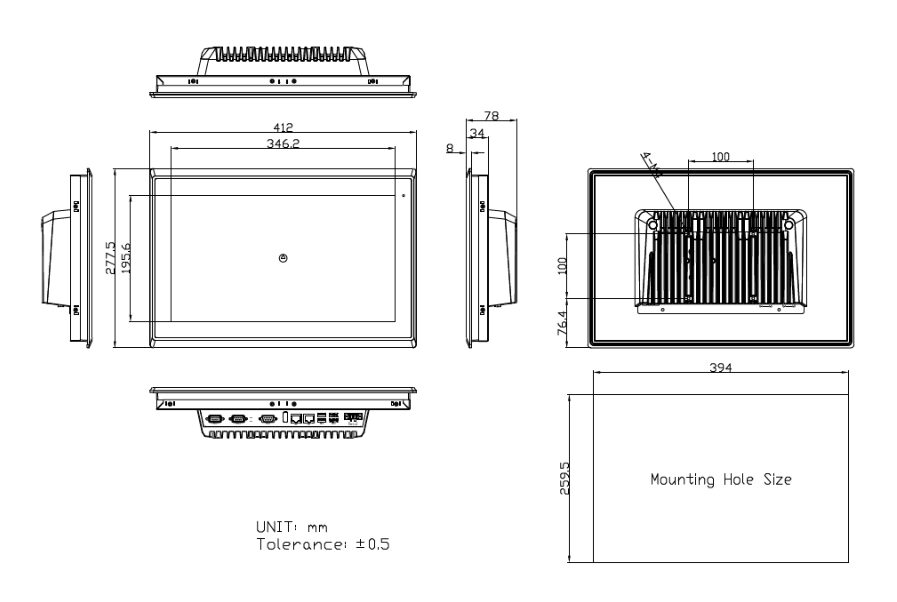

    DIMENSIONS

    The post TP-5645-16 – 15.6″ Panel Mount PC with Core i3 8145UE or Core i5-8365UE CPU appeared first on Miller Technologies.

    ]]>         WAM1560 – 15.6 Inch Panel Mount Touch Panel PC with Intel Celeron J1900 Quad Core Processor https://millertech.com/product/wam1560-15-6-inch-panel-mount-touch-panel-pc-with-intel-celeron-j1900-quad-core-processor/?utm_source=rss&utm_medium=rss&utm_campaign=wam1560-15-6-inch-panel-mount-touch-panel-pc-with-intel-celeron-j1900-quad-core-processor Thu, 15 Dec 2022 15:12:54 +0000 https://millertech.com/?post_type=product&p=9983
  • 16:9 Ratio with 15.6” True-Flat PCAP touch
  • Intel Celeron J1900 Quad Core Processor
  • Aluminum Alloy Housing
  • Fanless
  • Front Panel IP65
  • Supports Phoenix type connector for DC power input
  • Supports panel mount, wall mount, VESA, and desktop stand

    • The post WAM1560 – 15.6 Inch Panel Mount Touch Panel PC with Intel Celeron J1900 Quad Core Processor appeared first on Miller Technologies.

    ]]>     15.6 Inch Panel Mount Touch Panel PC with Intel Celeron J1900 Quad Core Processor.

    SPECIFICATIONS

    Display
    Display Type 15.6” TFT LCD
    Resolution 1920 x 1080
    Brightness 300 nits (Optional to 1000 nits)
    Touch Panel 10 Points Multiple PCAP touch (Optional Resistive Touch)
    Aspect Ratio 16:9
    Main System
    CPU Intel Celeron J1900 Quad Core Processor (Optional Core i3/i5/i7)
    GPU Intel® HD Graphics Engine
    Memory 4GB (Max.8GB)
    Storage 64GB (Max.512GB)
    OS Support Windows 10 Pro, Windows 10 IoT, Linux
    Function Support WiFi 802.11 a/b/g/n/ac 2.4G (External Antenna)
    Bluetooth 4.0
    RTC
    Time Switch
    IO Ports 1 x Phoenix type connector
    1 x DC-in
    2 x USB2.0
    2 x USB3.0
    1 x RJ-45 (Support Wake-on-LAN)
    1 x HDMI
    1 x SIM card slot
    1 x DB15 (VGA)
    1 x Line-out
    1 x DB9 (RS232)
    1 x Power Button
    Physical
    Power Input DC 12-36V
    Power Adapter DC 12V/5A
    Mounting Panel Mount, VESA 75 x 75 mm &100 x 100 mm, Wall mount, Desktop stand
    Housing Aluminum Alloy Housing
    Packing List
    Standard Accessory Power Adapter
    Clamp Mount Kit
    Product Dimension 405.3 x 254.6 x 67 mm
    Product Weight 4.1 kg
    Environment
    Rugged Feature Front IP65
    Certification CE, FCC Class B
    Operating Temperature -10°C ~ 60°C
    Storage Temperature -20°C ~ 70°C
    Relative humidity 95% RH non-condensing

    The post WAM1560 – 15.6 Inch Panel Mount Touch Panel PC with Intel Celeron J1900 Quad Core Processor appeared first on Miller Technologies.

    ]]>         TP-3445-16 – 15.6″ Fanless Industrial Panel PC with Apollo Lake N4200 Quad Core CPU https://millertech.com/product/tp-3445-16-15-6-fanless-industrial-panel-pc-with-apollo-lake-n4200-quad-core-cpu/?utm_source=rss&utm_medium=rss&utm_campaign=tp-3445-16-15-6-fanless-industrial-panel-pc-with-apollo-lake-n4200-quad-core-cpu Fri, 14 May 2021 19:26:11 +0000 https://millertech.com/?post_type=product&p=7794
  • 15.6” TFT-LCD Touchscreen
  • Intel Apollo Lake N4200 Quad Core CPU
  • Optional Wide Temp & High Brightness
  • Accessible Storage Bay
  • Optional Power over Ethernet
  • UL 62368 Certified

    • The post TP-3445-16 – 15.6″ Fanless Industrial Panel PC with Apollo Lake N4200 Quad Core CPU appeared first on Miller Technologies.

    ]]>     The TP-3445-16 Industrial Panel Mount PC is built with die-cast aluminum and has an IP66 waterproof rated front bezel. It runs on an Intel Quad Core processor and has various configuration options, so you can create the perfect solution for your manufacturing plant or assembly line. Choose from several different expansion boards to add Mini-PCIe, SIM, USB or COM. This computer also supports Power over Ethernet, an optional internal backup battery, Pcap or resistive touch, and a high bright LCD. The TP-3445-16 is built to last in harsh environments. Contact Us today for a TP-3445-16 quote.

    SPECIFICATIONS

    Primary Components

    Processor Family Intel Pentium Apollo Lake
    Processor Model N4200
    Processor Speed 1.10 GHz
    Memory Type Onboard DDR3
    Memory Support 4GB, 8GB
    Storage type 1x 2.5″ SATA Drive Bay for SSD/HDD
    Storage support 32GB-1TB

    Display

    Screen Size 15.6″
    Resolution 1366 x 768
    Screen Ratio 16:9
    Brightness 300 nits, Optional 1000 nit High Brightness
    Contrast Ratio 500:1
    Viewing Angle 160º (H), 160º (V)

    Touch Screen

    Touch Screen Projected Capacitive, Resistive
    Light Transmission Over 80% (Resistive), Over 90% (P-Cap)

    External I/O ports

    USB 2x USB 3.0
    Serial / Com 2x COM
    Serial Protocol Detail 1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
    Ethernet / LAN 2x RJ45 GbE LAN
    Video Outputs 1x HDMI
    Other Ports 1x 2-Pin DC Power Switch Connector
    Audio 1x Audio Line-Out
    Power Input Port 3-Pin DC-In (Phoenix Type)

    Power

    Input Voltage Range 9-36V DC
    Standard Power Adapter Optional 12V AC/DC Adapter

    Battery

    Type Optional Internal Battery

    Operating Systems

    Windows Windows 10 IoT, Windows 10 Pro
    Linux Linux

    Expansion Slots

    Internal Mini PCIe 1x Mini-PCIe

    Thermal and Environmental

    Operating Temperature -20°C – 60°C
    (-4°F – 140°F)
    Storage Temperature -30°C – 70°C
    (-22°F – 158°F)
    Humidity Range 10% – 90% Non-condensing
    Cooling Solution Passive – Fanless with Heatsink

    Enclosure

    Material Aluminum
    Ip Rating IP66 Front Bezel
    Mounting Options Panel Mount, VESA 100 Mount

    Peripherals & Wireless Connectivity

    WiFi Optional WiFi
    BlueTooth Optional Bluetooth 4.0
    Mobile Network 4G LTE Optional 4G

    Dimensions / Weight

    Weight 4.6 KG (10.1 lbs)
    Dimensions 412 x 277.5 x 58.9 mm (16.2 x 10.9 x 2.3 in)

    Certification

    Certifications CE, FCC Class A, UL 62368

    Warranty

    Warranty Up to 5 Years

    The post TP-3445-16 – 15.6″ Fanless Industrial Panel PC with Apollo Lake N4200 Quad Core CPU appeared first on Miller Technologies.

    ]]>         PPC-FW15D-ULT5 – 15.6” 8th Gen Intel® Whiskey Lake-U Core™ i5 Fanless Industrial Panel PC https://millertech.com/product/ppc-fw15d-ult5-15-6-8th-gen-intel-whiskey-lake-u-core-i5-fanless-industrial-panel-pc/?utm_source=rss&utm_medium=rss&utm_campaign=ppc-fw15d-ult5-15-6-8th-gen-intel-whiskey-lake-u-core-i5-fanless-industrial-panel-pc Tue, 11 May 2021 20:44:36 +0000 https://millertech.com/?post_type=product&p=7702
  • 15.6” Panel PC with 8th gen Intel® Whiskey Lake-U processors
  • Low power consumption and fanless design
  • IP66-rated front panel for water and dust resistance
  • Touch screen with anti-UV / anti-glare coating
  • Supports PoE PD power
  • Supports NVMe SSD

    • The post PPC-FW15D-ULT5 – 15.6” 8th Gen Intel® Whiskey Lake-U Core™ i5 Fanless Industrial Panel PC appeared first on Miller Technologies.

    ]]>     The PPC-F-ULT5 series is equipped with an 8th Gen Intel® Core™ i5- 8365UE processor, which is a quad-core processor with a maximum turbo frequency of 4.1 GHz, up to 32 GB of DDR4 memory support, and an average CPU mark of 6402 that is 1.7x higher than the previous generation. In addition, the PPC-F-ULT5 series also provides four USB 3.2 Gen 2 ports to meet the demands of high-speed data processing and transmission. Contact Us today for a PPC-FW15D-ULT5 quote.

    SPECIFICATIONS

    Display
    LCD Size 15.6”
    Brightness(cd/m2) 400
    Max Resolution 1366 x 768
    Contrast Ratio 500:1
    Backlight MTBF(hrs) 50000
    System
    Cooling method / System Fan Fanless
    CPU 8th Generation Intel® Core™ i5-8365U 4.10GHz
    8th Generation Intel® Celeron® 4305U 2.20GHz
    Chipset Intel® Whiskey Lake-U
    Memory Ext. 2 x 260-pin 2400 MHz dual-channel DDR4 unbuffered SO-DIMM
    Memory Max. 32GB
    Storage 2.5” HDD/SSD SATA 3(6.0Gb/s) bay
    I/O Interface
    Ethernet 2x Intel® I211
    1x Intel® I219
    Audio Codec ALC888S
    Power
    Input +12VDC
    Power adapter 12V @ 8A(96W)
    Power consumption 55W
    Environment
    Operating Temperature -10°C ~ 50°C (with air flow)
    Operating Vibration 5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak
    Operating Shock 10G acceleration part to part (11ms)
    Safety & EMC CE, FCC
    Humidity 10% ~ 95% (non-condensing)
    Storage Temperature -20°C ~ 60°C
    IP Level Front panel IP66
    Physical Characteristics
    Color PANTONE 296 C
    Mounting Wall mount, Panel mount, Rack mount
    Dimensions (LxWxH) (mm) 400.1 x 253.3 x 77.1
    Net Weight 6.1kg
    Construction Front Panel Aluminum
    Cutout Dimensions 379.1 x 232.3
    Expansion Slots
    Expansion Slots M.2 2230 A-Key(PCIe x1, USB 2.0; support Wi-Fi, BT)
    M.2 2280 M-Key(PCIe x4; support NVMe SSD)
    LCD
    LCD Color 16.2M
    Pixel Pitch (mm) 0.25 x 0.25
    Viewing Angle (H-V) 170°/160°
    Touch
    Touch Screen PCAP 10-point
    Touch Controller EETI
    Other Features
    TPM TPM 2.0(Optional)
    I/O Interface
    I/O Interface 1 x AT/ATX Switch
    1 x Clear CMOS
    1 x DC Input Jack(12V Din 4Pin/lock)
    1 x HDMI
    3 x LAN(2 x Support PoE(IEEE 802.3at/bt, optional))
    1 x Line out
    1 x Power Switch(with LDE(Blue))
    1 x Reset Button
    2 x RS-232(1 x RS-232/422/485, 1 x RS-232)
    4 x USB 3.2 Gen2x1

    ORDERING

    PPC-FW15D-ULT5-C/4G/PC-R10 15.6″ 400 cd/m2 1366 x 768 Panel PC with Intel® 14nm 8th Whiskey Lake Celeron® 4305UE (2M Cache, 2.0 GHz) TDP 15W on-board Processor (ULT), 4GB DDR4 RAM x1, 12VDC input, Projective capacitive touch window with AG, R10



    PACKAGE CONTENTS

    Package Content
    • 1 x PPC-FW15D-ULT5 panel PC
    • 1 x Power adapter
    • 1 x Power cord
    • 4 x Screws (M4*8) for VESA mounting
    • 4 x Screws (M3*4) for HDD installation

    The post PPC-FW15D-ULT5 – 15.6” 8th Gen Intel® Whiskey Lake-U Core™ i5 Fanless Industrial Panel PC appeared first on Miller Technologies.

    ]]>         TP-5010-16 – 15.6″ Fanless Intel 6th Gen Skylake Core i3/i5/i7 Panel PC https://millertech.com/product/tp-5010-16-15-6-fanless-panel-pc/?utm_source=rss&utm_medium=rss&utm_campaign=tp-5010-16-15-6-fanless-panel-pc Fri, 02 Aug 2019 15:39:20 +0000 https://millertech.com/?post_type=product&p=4016 FEATURES

    • 15.6” True Flat Touch Screen
    • High Performance 6th generation Intel Core i3/i5/i7 CPU
    • Fanless Cooling Solution
    • IP66 Rated Front Panel
    • CE, FCC, VCCI Class B
    • Optional Wireless Connectivity

    The post TP-5010-16 – 15.6″ Fanless Intel 6th Gen Skylake Core i3/i5/i7 Panel PC appeared first on Miller Technologies.

    ]]>     The TP-5010-16 15.6″ Fanless Panel PC has a powerful Intel Core i3/i5/i7 CPU and is built with high quality components to ensure the highest reliability and 24/7 use of industrial and commercial applications. The TP-5010-16 has an IP66 rated front bezel and fanless design, making it resistant to spills or sprays and suitable for particulate-rich environments. The 15.6” design saves space and can enhance connectivity with optional wireless and Bluetooth 4.0. The TP-5010-16 also has several mounting options including a panel mount and VESA mount, so it can easily be implemented in a diverse range of applications including manufacturing execution systems and hygienic automation systems. Contact Us today for a TP-5010-16 quote.

    SPECIFICATIONS

    System
    Processor Intel 6th Gen Skylake Core i3/i5/i7
    Security Hardware Optional TPM 2.0
    Chipset SoC
    Video / Graphics Card Intel Integrated HD Graphics 520
    Storage 2.5″ SATA Drive Bay, M.2, mSATA
    Memory 2 x DDR4 SO-DIMM
    Memory (RAM) 4GB, 8GB, 16GB, 32GB
    Display
    Screen Size 15.6″
    Screen Resolution WXGA (1033 x 768)
    Nits 400
    Display Ratio 16:9
    Contrast Ratio 500:1
    Viewing Angle R/L 170(Typ.), U/D 160(Typ)
    Number of Colors 16.2M
    Response Time 8 ms
    Touch Screen
    Touchscreen Resistive, Projected Capacitive
    Light Transmission Resistive: 80 +/- 5% P-cap: 90 +/- 3%
    Hardness Resistive: 4H P-cap: 7H
    Lifetime Usage 35M Times, P-cap : 100M Times
    I/O Ports
    USB 3.0 4x USB 3.0
    Serial 1x RS232, 1x RS232/422/485 (RS485 supports auto flow control)
    Video 2x DisplayPort
    Ethernet 2x RJ45 GbE
    Audio In/out 3.5mm phone jack connector 2 (Line-out, and Mic-in)
    Operating System
    Operating System Windows 10 Pro, Windows 10 IoT, Windows 7 Pro
    Power
    DC Input / Source Voltage 9V~32V
    Power Consumption 57.8 watts (MAX. Loading without adapter )
    Power Adapter External, 60 watts, universal 100 ~240V AC in, 12V DC out, 5A
    Reset Power Button Yes
    Expansion Slots
    Mini PCIe Slot (internal) 1x Mini PCIe
    Expansion M.2 Type E x 1
    Multimedia
    Integrated Audio Controller Realtek ALC262 Audio Codec
    Operating Temperature
    Operating Temperature 0~50°C (w/ air flow) / 0~40°C (no air flow)
    Storage Temperature -20~60°C
    Humidity Range 10~90%, non-condensing
    Storage Humidity 10~90%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive – Fanless
    Dimensions / Weight
    Weight (kg) 6 kg   (13.228 lbs)
    Dimensions 452 x 330 x 86 mm
    Enclosure
    Front Bezel IP66 Protected
    Material Aluminum Bezel, Steel Chassis, Optional Stainless Steel Bezel
    Color Black
    Control Buttons Power, reset
    Mounting Panel Mount, VESA Mount
    Peripherals & Devices
    Wireless Communication Optional 802.11 ac + Bluetooth 4.0 with External Antennas
    Certification
    Certification CE, FCC Class B, VCCI
    Warranty
    Warranty Up to 5 Years

    The post TP-5010-16 – 15.6″ Fanless Intel 6th Gen Skylake Core i3/i5/i7 Panel PC appeared first on Miller Technologies.

    ]]>         TP-5045-16 – 15.6″ Fanless Intel® 6th Gen Core i3/i5 Panel PC https://millertech.com/product/tp-5045-16/?utm_source=rss&utm_medium=rss&utm_campaign=tp-5045-16 Fri, 02 Aug 2019 13:53:16 +0000 https://millertech.com/?post_type=product&p=3977 FEATURES

    • 15.6” Full Flat Panel Touchscreen
    • Intel 6th Generation Core i3/i5 CPU
    • IP66 Front Protected Front and Fanless Design Back
    • DDR4 2133MHz memory with Up to 16GB
    • Sunlight Readable Touchscreen Option
    • Wide Range 9~36V DC Power Input

    The post TP-5045-16 – 15.6″ Fanless Intel® 6th Gen Core i3/i5 Panel PC appeared first on Miller Technologies.

    ]]>     The TP-5045-16 15.6″ Fanless Industrial Panel PC offers the superior processing power of Intel’s 6th generation core i3/i5 CPUs with long life cycle support. The thermal design includes a rugged die cast aluminum enclosure for fanless operation and durability in high shock and vibration settings. The front bezel is IP66 rated for protection from water and dust. It uses a full flat design to prevent build-up of particulates on the front surface. A sunlight readable touchscreen option can be chosen where a high brightness screen is needed. With up to 16GB of DDR4 memory, the TP-5045-16 fanless panel PC is an ideal for most Windows or Linux based applications. The TP-5045-16 is an ideal solution for running your ERP (Enterprise Resource Planning) software. Contact Us today for a TP-5045-16 quote.

    SPECIFICATIONS

    System
    Processor Intel® 6th Gen Core i3/i5 CPU
    Security Hardware TPM 2.0
    Chipset SoC
    Storage 1x 2.5″ SATA Drive bay for SATA3 SSD/HDD
    Storage Support 1 x SD Slot
    Memory DDR4 SO-DIMM
    Memory (RAM) 4GB, 8GB, 16GB
    Display
    Screen Size 15.6″
    Type of Backlight TFT-LCD
    Screen Resolution 1366 x 768 (1920 x 1080 optional)
    Display Ratio 16:9
    Contrast Ratio 500:1
    Brightness 300 nit, Optional High Brightness 1000 nit
    Viewing Angle 160 H / 160 V, with High Brightness 160 H / 160 V
    Number of Colors 16.7M
    Touch Screen
    Touchscreen Resistive, Optional Projected Capacitive
    Light Transmission Over 80%, P-Cap Over 90%
    Interface USB
    I/O Ports
    USB 3.0 2x USB 3.0 Type A
    Serial 1x RS-232/422/485 DB-9 COM1 (Default RS-232), 1x RS-232 DB-9 COM2
    Video 1x HDMI
    Ethernet 2x RJ45 GbE
    Other Ports 1x 2-Pin DC Power Switch Connector
    DC Jack 1x 3-Pin Terminal Block Input
    Audio In/out 1x Audio Line Out
    Battery
    Battery Optional UPS Battery 21W/10.8V/1.95Ah (3S1P)
    Power
    DC Input 9 – 36V
    Power Adapter Optional
    Expansion Slots
    Mini PCIe Slot (internal) 1x Internal Mini-PCIe slot full size
    Other Expansion 1x SD Slot up to 32GB
    Operating Temperature
    Operating Temperature 0° to 50°C (32° to 122°F)
    Storage Temperature -20° to 60°C (-4°to 140°F)
    Humidity Range 10% to 90% @ 40°C or 104°F Non-Condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive – Fanless with Heatsink
    Dimensions / Weight
    Weight (kg) 4.5 kg   (9.921 lbs)
    Dimensions 412 x 277 x 59 mm
    Enclosure
    Front Bezel IP66 Protected
    Material Aluminum
    Mounting Panel Mount, VESA Mount
    Peripherals & Devices
    Accessories
    • 2x RS-232 DB-9 +1 x Mini-PCIe slot via daughterboard
    • 2x CAN bus via daughterboard
    • 2x USB 2.0 type A + 1 x Mini-PCIe slot + 1x RS-232 DB-9 via daughterboard
    • 2x USB 2.0 type A via daughterboard
    • UPS battery 21W/10.8V/1.95Ah(3S1P)
    Certification
    Certification CE / FCC Class A Certification
    Warranty
    Warranty 1 Year Parts & Labor Standard

    The post TP-5045-16 – 15.6″ Fanless Intel® 6th Gen Core i3/i5 Panel PC appeared first on Miller Technologies.

    ]]>         TP-2945-16 – 15.6″ Intel® Quad Core Celeron N2930 Based Fanless Panel PC https://millertech.com/product/tp-2945-16/?utm_source=rss&utm_medium=rss&utm_campaign=tp-2945-16 Thu, 01 Aug 2019 19:16:51 +0000 https://millertech.com/?post_type=product&p=3888 FEATURES

    • 15.6” True Flat Panel Touch Screen
    • Intel Bay Trail Quad Core N2930 1.83GHz CPU
    • 4GB Onboard DDR3L Memory
    • 2 Pin Connector for Power Switch
    • IP66 Front in Aluminum Die-Cast Housing

    The post TP-2945-16 – 15.6″ Intel® Quad Core Celeron N2930 Based Fanless Panel PC appeared first on Miller Technologies.

    ]]>     The TP-2945-16 15.6″ Fanless Panel PC is the perfect HMI replacement for industrial automation applications. The 15.6” widescreen touch display and front bezel is IP66/NEMA4 rated to ensure the unit can withstand the rigors of your operations. Using a system on chip (SoC) architecture, this industrial computer will help to keep your facility’s power usage costs down. Even though the TP-2945-16 operates on a lower energy profile, it is still a powerful machine with its 1.83 GHz quad core CPU. Thanks to its fanless cooling system, this industrial panel PC is a computer that you can rely on 24/7, for years to come! Contact Us today for a TP-2945-16 quote.

    SPECIFICATIONS

    System
    Processor Intel® Celeron N2930
    CPU Performance 1.83GHz
    Chipset SoC
    Storage 2.5″ SATA 2 Drive
    Storage Support SD Card Slot (Up to 32GB)
    Memory DDR3
    Memory (RAM) 4GB, 8GB
    Display
    Screen Size 15.6″
    Type of Backlight TFT-LCD
    Screen Resolution 1366 x 768 (1920 x 1080 optional)
    Display Ratio 16:9
    Contrast Ratio 500:1
    Brightness 300 (cd/m²)
    Viewing Angle 160/160
    Touch Screen
    Light Transmission 80%
    Interface USB
    I/O Ports
    USB 2.0
    USB 3.0 2 x USB 3.0
    Serial 1 x RS-232 DB-9(COM2), 1 x RS-232 with Optional RS-232 /422/485 DB-9 Setting
    Video 1x HDMI
    Ethernet 2x RJ45 GbE
    Other Ports 1 X 2-Pin DC Power Switch Connector
    DC Jack Input with 3 Pin Terminal Block 9-36V DC
    Audio In/out 1 x Audio Line Out Phone Jack
    Operating System
    Operating System Windows 10 Pro, Windows 10 IoT, Windows 8.1 Embedded, Windows 7 Embedded
    Power
    DC Input 9 – 36V
    Power Consumption 20.3W
    Power Adapter Optional
    Expansion Slots
    Mini PCIe Slot (internal) 1 x Internal Mini-PCIe slot full size
    Operating Temperature
    Operating Temperature 0º-50º C or 32º-122º F
    Storage Temperature -20º-60° C or -4°-140° F
    Humidity Range 10% to 90% @ 40° C or 104° F Non- Condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive – Fanless with Heatsink
    Dimensions / Weight
    Weight (kg) 4.8 kg   (10.582 lbs)
    Weight (lbs) 10.58
    Dimensions 412 x 277.5 x 58.9 mm (16.22 x 10.93 x 2.32in)
    Enclosure
    Front Bezel IP66 Protected
    Material Aluminum
    Mounting Panel Mount, VESA Mount
    Cleaning Instructions Recommend warm water with soft cloth. Not recommended to clean with chlorine, acetone, or methyl alcohol.
    Peripherals & Devices
    Extra Features Optional POE support is 802.3at(POE+) Mode A and Mode B (20W)
    Certification
    Certification CE / FCC Class A Certification, UL 60950
    Warranty
    Warranty Up to 5 Years

    The post TP-2945-16 – 15.6″ Intel® Quad Core Celeron N2930 Based Fanless Panel PC appeared first on Miller Technologies.

    ]]>
